Mercury Zeus User Manual

Section 5 - Maintenance
90-879172181 eng FEBRUARY 2011 Page 109

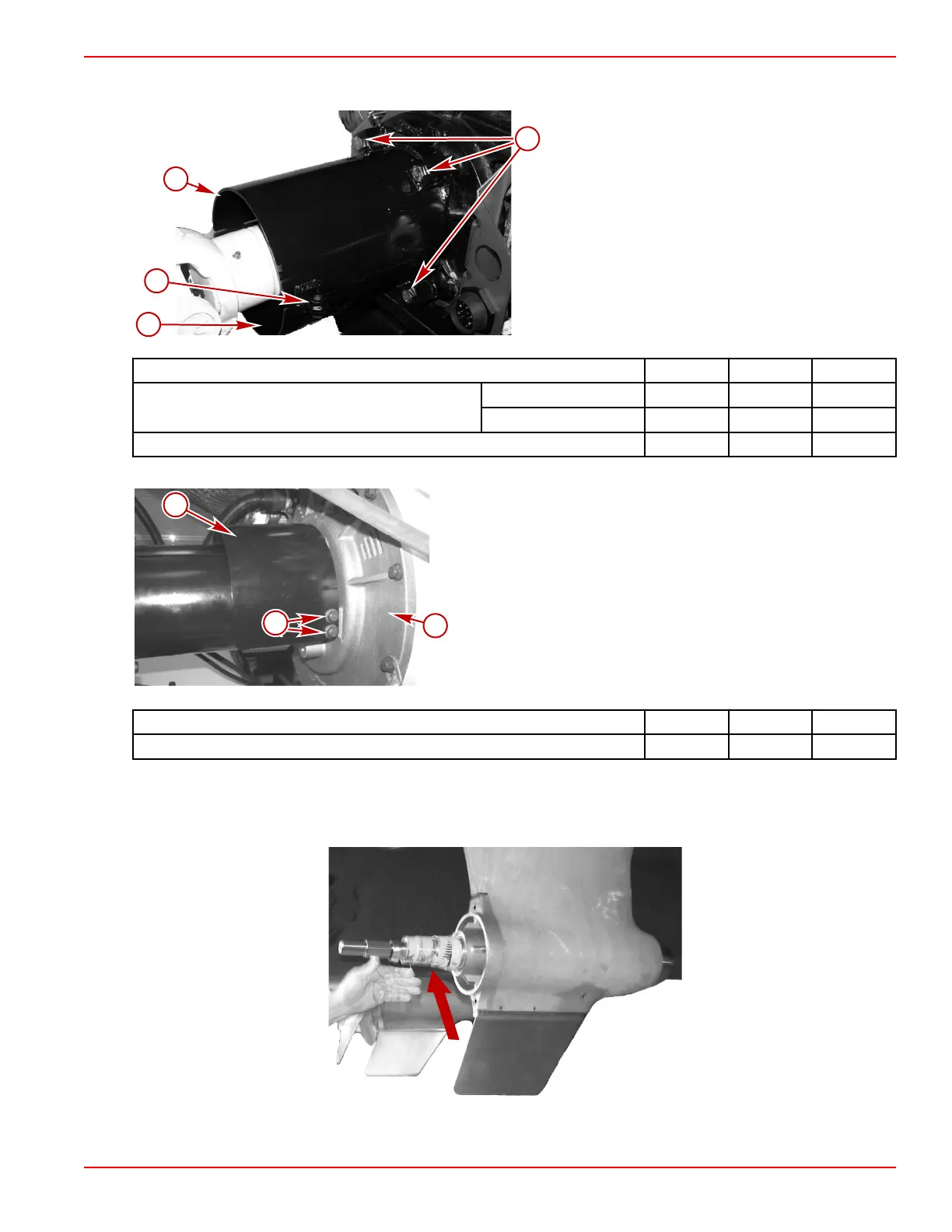

6. Install the top and bottom driveshaft shields on the transmission end as shown. Tighten the driveshaft shield retaining screws
and nuts to specifications.
Typical
a - Bottom shield
b - Driveshaft shield upper‑to‑lower retaining screw,
nut, and washer (2)
c - Top shield
d - Driveshaft shield retaining screw and washer (4)
Description Nm lb‑in. lb‑ft
Driveshaft shield retaining screw—transmission end
QSC and QSB models 36 – 27
QSM models 47 – 35
Driveshaft shield upper‑to‑lower retaining screw and nut—transmission end 17 – 23
7. Install the engine end driveshaft shield. Tighten the screws to specification.
Typical
a - Driveshaft shield
b - Screw (two on each side)
c - Engine end
Description Nm lb–in. lb–ft
Driveshaft shield screw—engine end 36 – 27
Propeller Shaft
1. Remove the propellers. Refer to Propellers.
2. Apply a liberal coat of one of the following lubricants to the propeller shafts.
24029
c
a
c
36689
c
d
b
a
c
b
34052
