Section 2 - Getting to Know Your Power Package
Page 20 90-879172181 eng FEBRUARY 2011

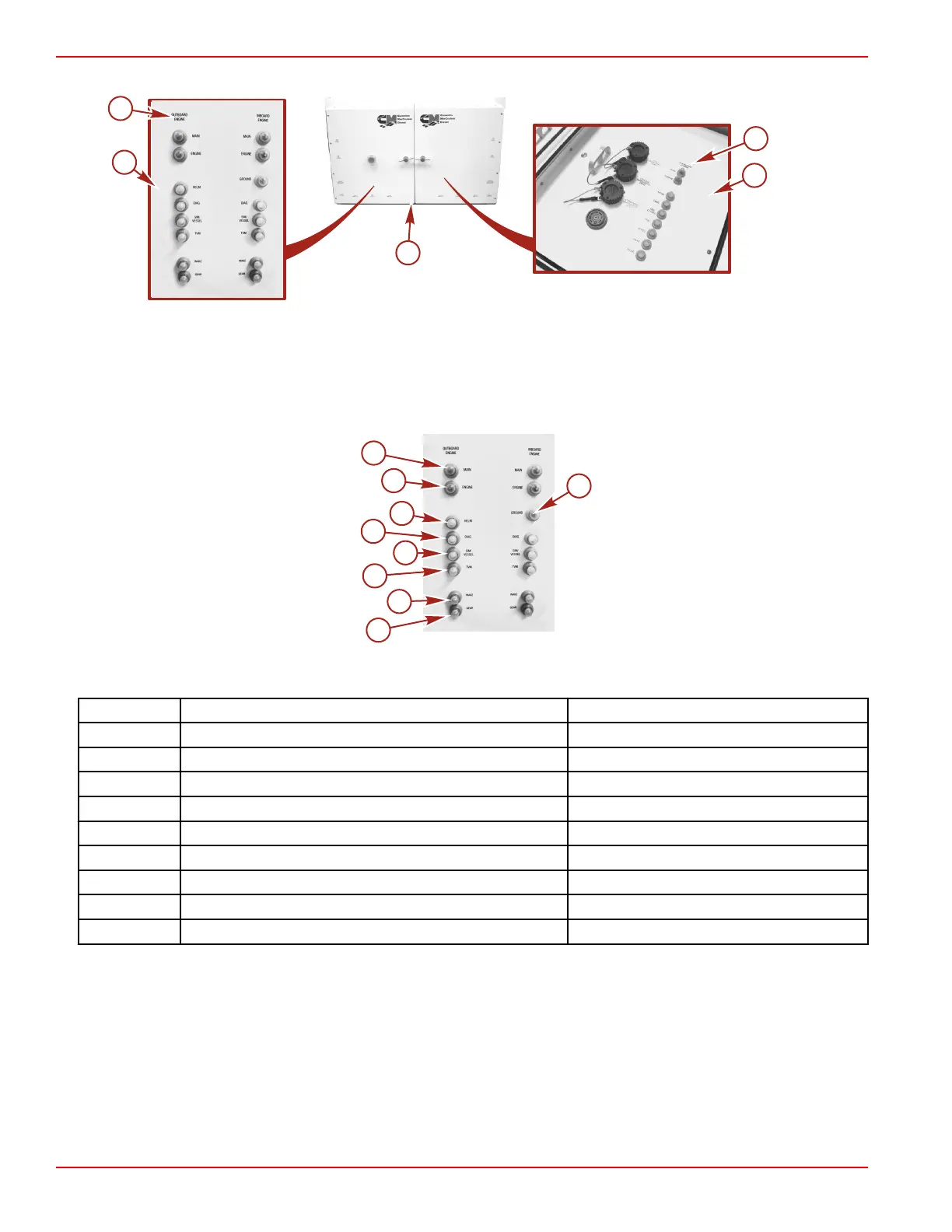

NOTE: One double‑door VIP is provided for all engines when using SmartCraft 3.0 control systems.
a - Dual‑display (both sides of VIP with quads)
b - Engine location
c - VIP
d - Single‑display (one side of VIP with triples)
Typical circuit breaker locations inside the VIP—dual-display shown
Item Circuit Breaker Rating Protected Circuit
a 15 A Gear
b 10 A Wake up
c 10 A TVM
d 10 A SIM/Vessel
e 5 A Diagnostics
f 20 A Helm
g 25 A Engine
h 25 A Main
i 25 A Ground (–)
Overload Protection for the DC‑to‑DC Voltage System (If Equipped)
NOTE: For additional information on the on‑off switch for the DC voltage regulator, refer to
Section 3—Getting Started
.
On vessels equipped with a 24‑volt system and SmartCraft 2.2 Control, a DC voltage regulator is required to supply 12‑volt power
to the VIP and the other 12‑volt circuits. The power package manufacturer provides a protective fuse for the 24‑volt DC to 12‑volt
DC voltage regulator system, if equipped. The spade‑style, in‑line fuse is located in the harness between the voltage regulator
and the 24‑volt battery system. The fuse protects the wiring and the regulator against overload.
