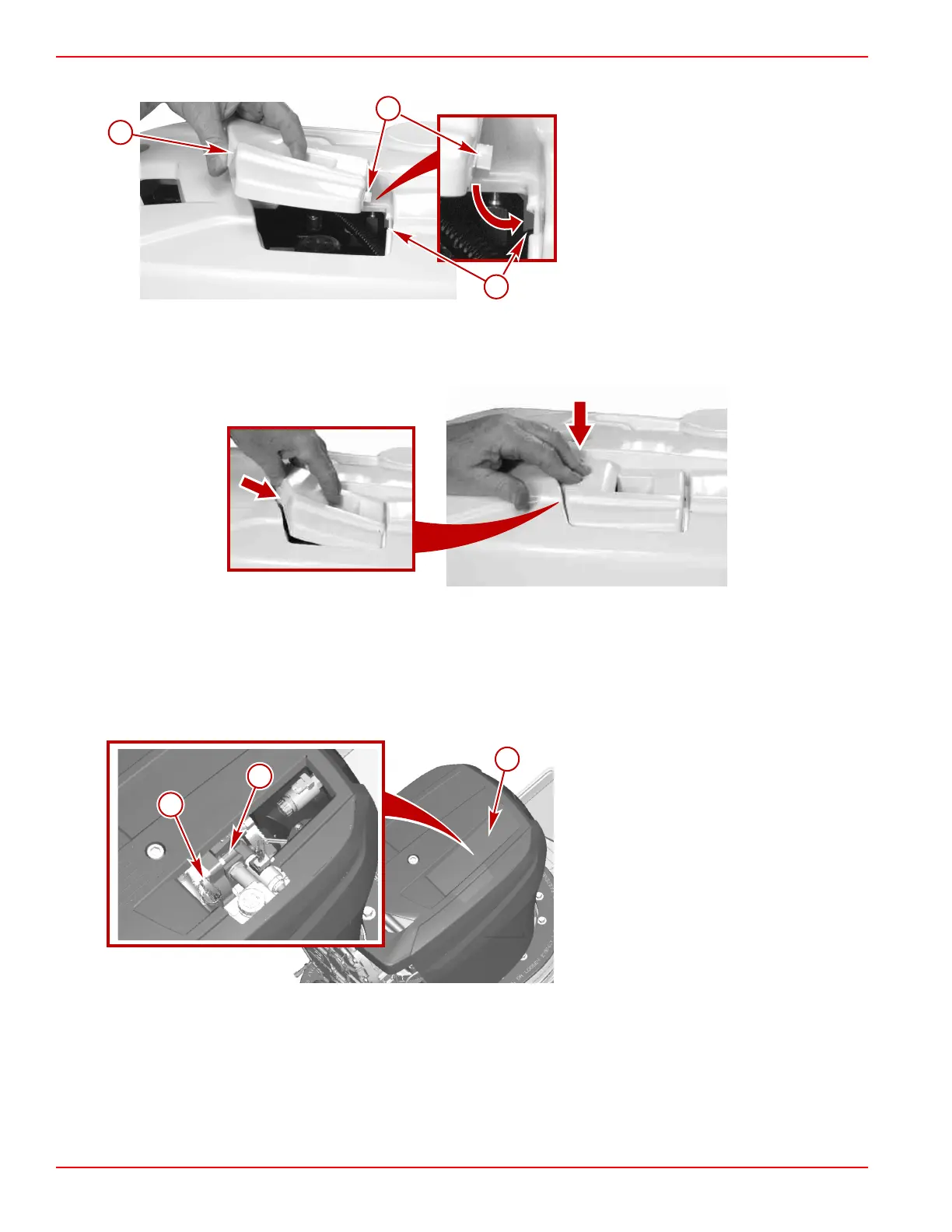

a. Insert the molded clip on the aft end of the hatch cover under the indented‑edge of the cover.
a - Access cover
b - Molded clip
c - Indented edge
b. Align the access cover with the opening in the top cover.
c. Press down evenly on the front of the access cover. A click‑sound can be heard when the access cover snaps into final
position.
39514
Completing the access cover installation
Filling
You can fill the transmission with oil through the access cover on the drive cover or with the drive cover removed.
1. To access the transmission dipstick, you must remove the access cover or remove the drive cover, if equipped. Refer to
Removing the Drive Cover.
a - Access cover
b - Transmission
c - Transmission dipstick
a
c
b
39506
b
c
a
25914
