Section 3 - On the Water
90-879172181
eng
FEBRUARY 2011
Page 39

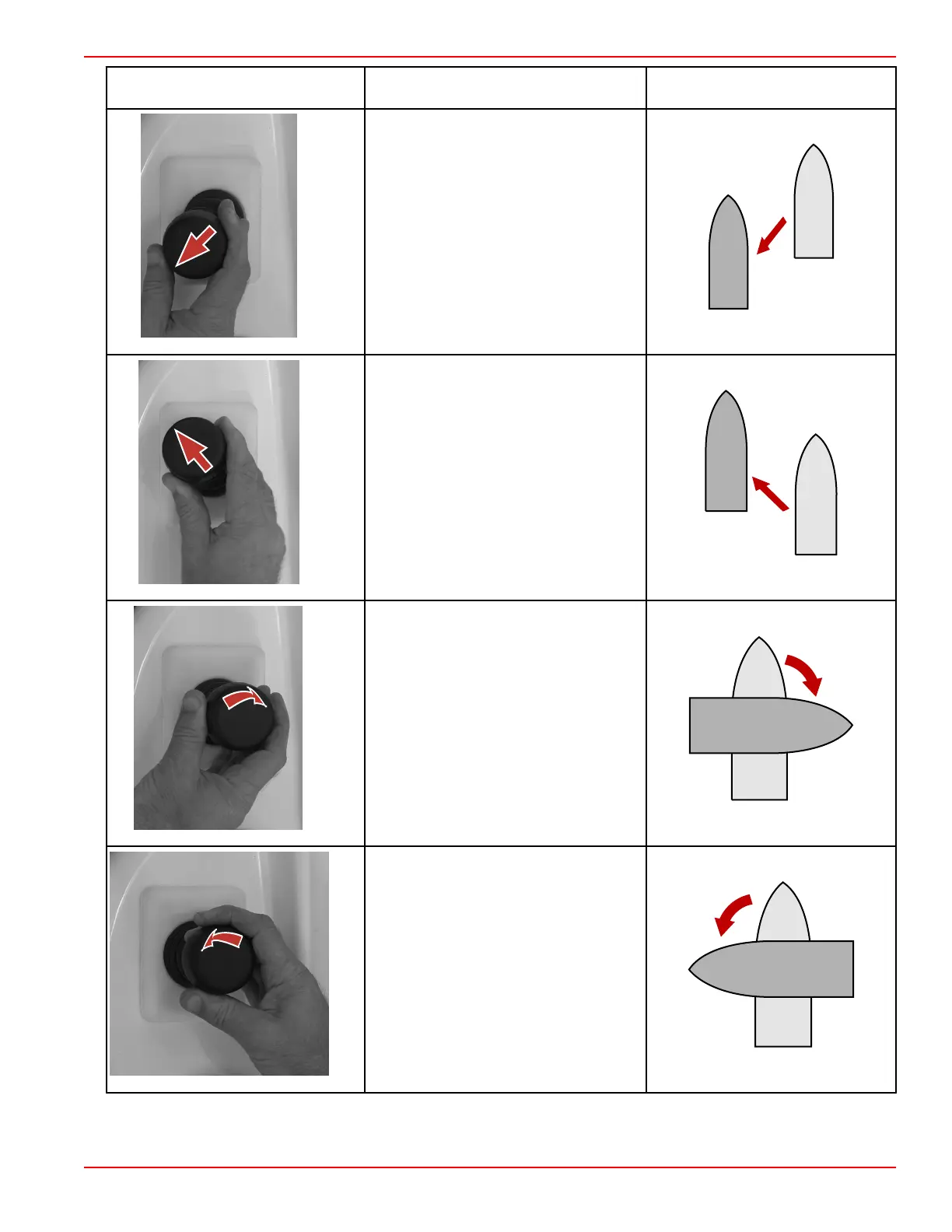

Joystick Input
Boat Response
Movement
(shown from light gray to dark gray)
2471
1
Boat moves diagonally aft and to the port
without rotating
25923
24712
Boat moves diagonally forward and to the
port without rotating
25925
24713
Boat rotates clockwise
25921
24714
Boat rotates counter clockwise
25920
