Mercusys AC1200 User Manual

AC12G
AC1200 Wireless Dual Band Gigabit Router
Select a working mode according to your ISP network topology.
If your ISP uses Pass-Through (Bridge) network deployment, select Pass-Through (Bridge). No
configuration is required for this type of connection.

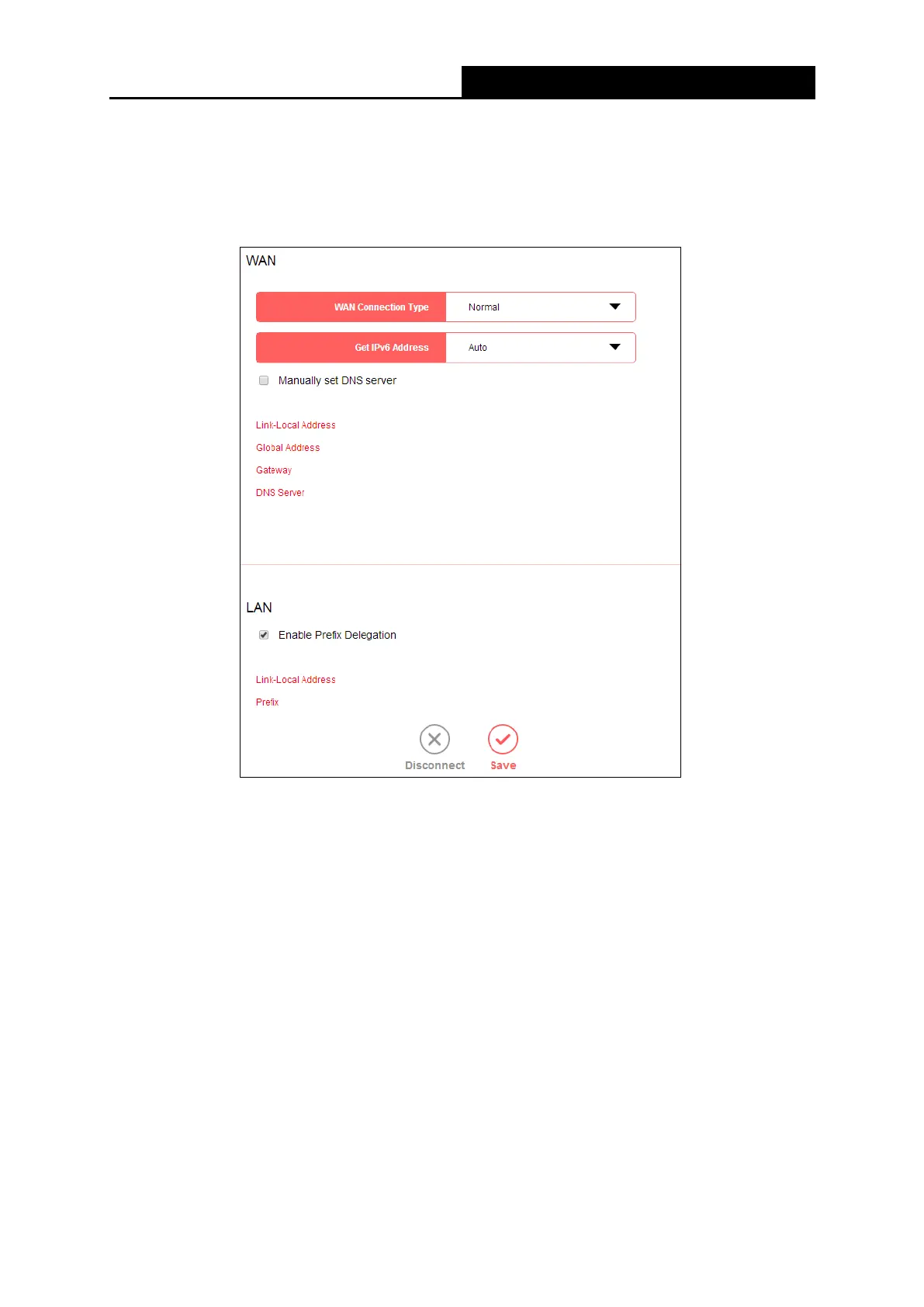

For other connection types, select Router and complete the IPv6 configuration.
• WAN Connection Type - Select an appropriate WAN connection type according to the
information provided by your ISP.
• Normal - Select this type for normal IPv6 internet connection.
• PPPoE - Select this type if your ISP uses PPPoEv6 for assigning address, and
provides a username and password.
• Tunnel 6to4 - Select this type if your ISP uses 6to4 deployment for assigning
address.
• Get IPv6 Address - Select Auto or Static according to the information provided by your
ISP.
• Address - The IPv6 address of the router's WAN interface.
• Prefix Length - The IPv6 prefix length of the router's WAN interface.
- 26 -

Mercusys AC1200 Specifications

General

Power Supply	9V/0.85A
Wireless Standards	IEEE 802.11ac/n/a 5 GHz, IEEE 802.11n/b/g 2.4 GHz
Frequency	2.4 GHz and 5 GHz
Signal Rate	300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz
Ports	1 x 10/100 Mbps WAN port, 4 x 10/100 Mbps LAN ports
Antenna	4 x fixed antennas
Button	Reset
Wireless Security	WPA/WPA2, WPA-PSK/WPA2-PSK
Dimensions	222 x 140 x 32 mm
