Mercusys AC1200 User Manual

AC12G
AC1200 Wireless Dual Band Gigabit Router
1.2.2 The Rear Panel

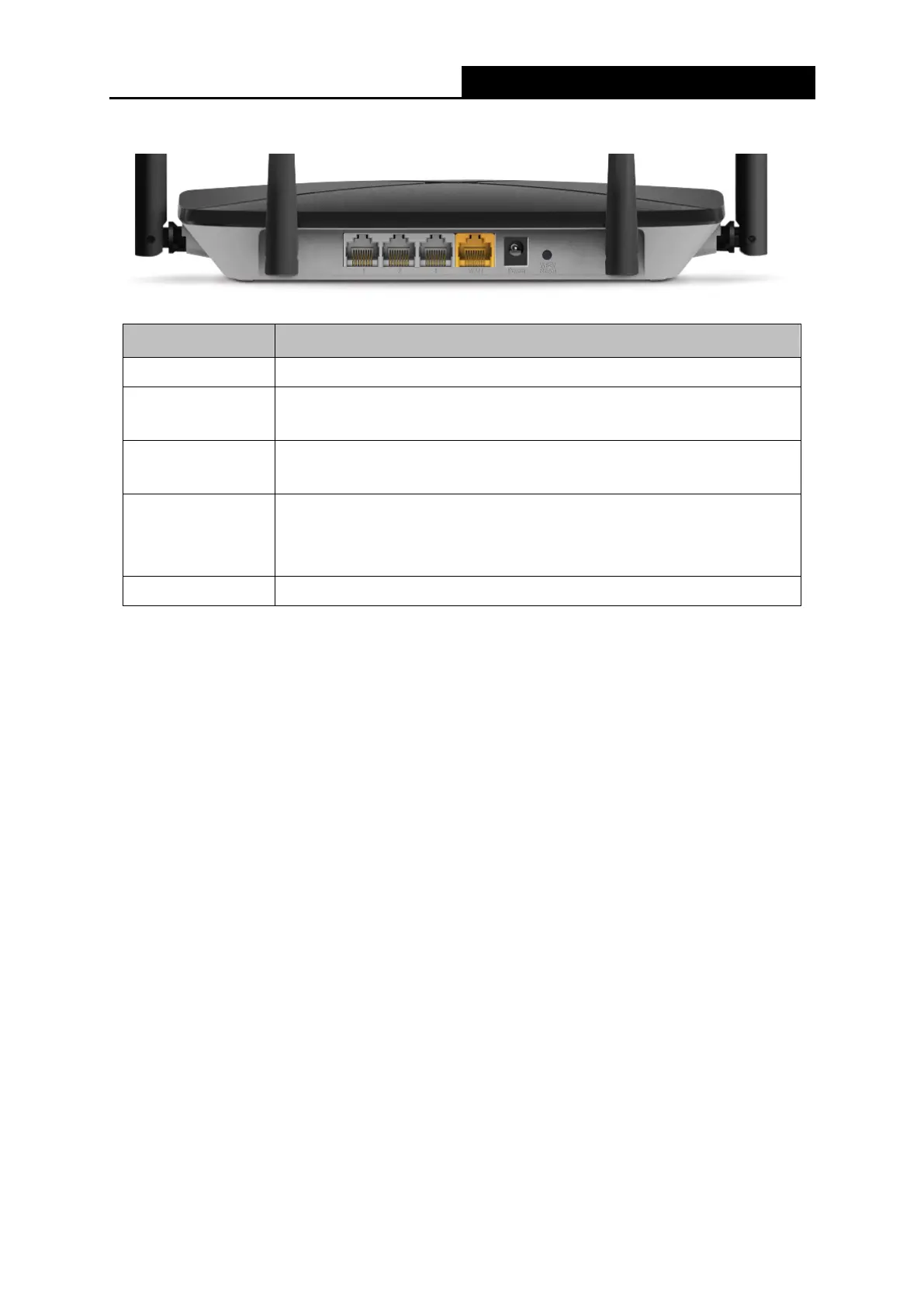

The following parts are located on the rear panel (View from left to right).
Item
Description
1-3(LAN)
These ports connect the router to the local devices.
WAN
This port is where you will connect the DSL/cable Modem, or
Ethernet.
Power
The power socket is where you will connect the power adapter.
Please use the power adapter provided with this router.
WPS/Reset
Press this button for 1 second to use WPS function.
Press and hold this button for more than 5
seconds to reset the
router.
Wireless antenna
To receive and transmit the wireless data.
- 3 -

Mercusys AC1200 Specifications

General

Power Supply	9V/0.85A
Wireless Standards	IEEE 802.11ac/n/a 5 GHz, IEEE 802.11n/b/g 2.4 GHz
Frequency	2.4 GHz and 5 GHz
Signal Rate	300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz
Ports	1 x 10/100 Mbps WAN port, 4 x 10/100 Mbps LAN ports
Antenna	4 x fixed antennas
Button	Reset
Wireless Security	WPA/WPA2, WPA-PSK/WPA2-PSK
Dimensions	222 x 140 x 32 mm
