Mercusys AC1200 User Manual

AC12G
AC1200 Wireless Dual Band Gigabit Router

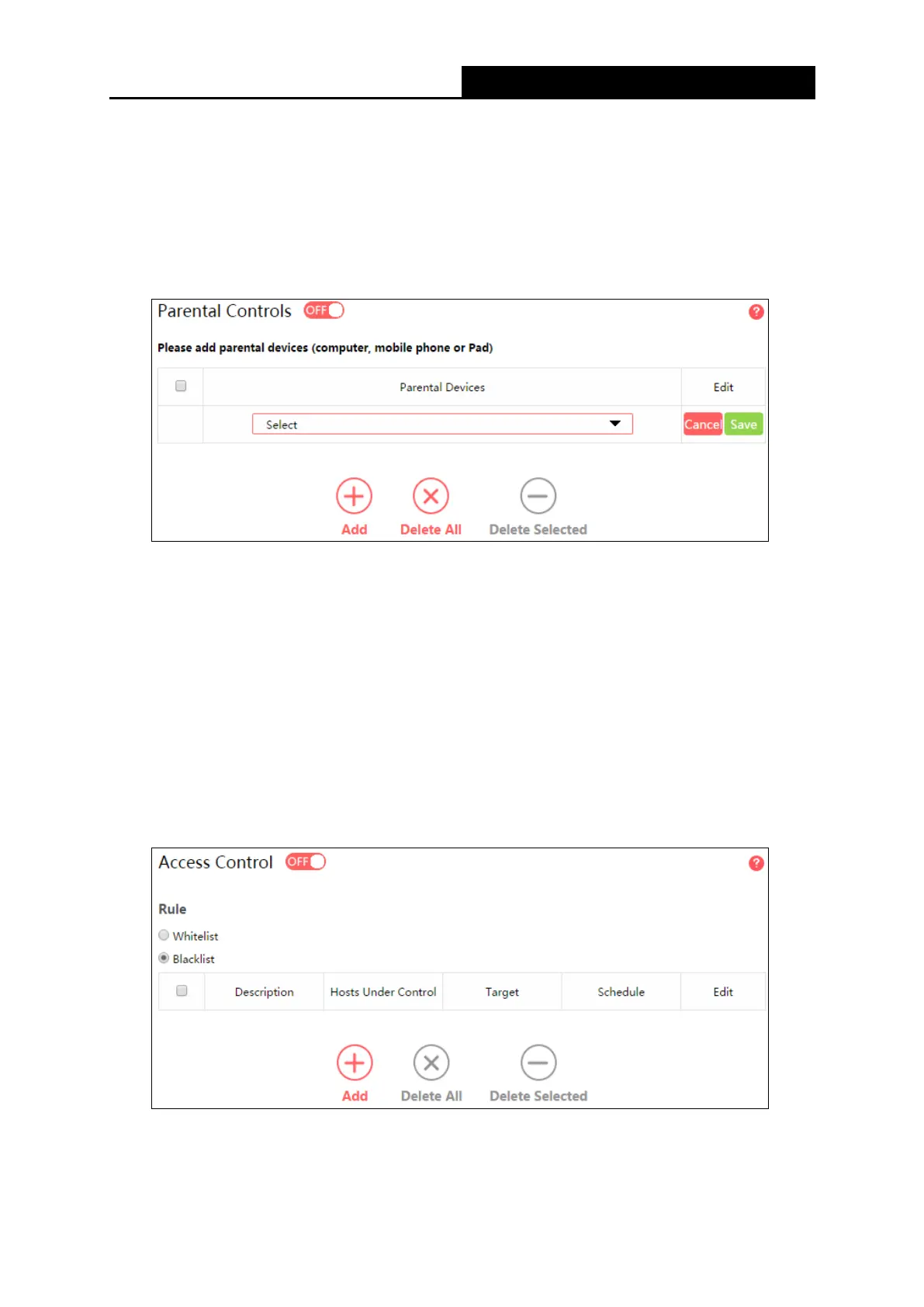

• Delete Selected - Click to delete selected devices in the table.
• Effective Time - All devices except the parental devices will be restricted. Click and drag
across the cells to set the restriction time periods.
To add a new entry, follow the steps below.
1. Click Add.
2. Select a device from the drop-down list.
3. Click Save.
To set the effective time, follow the steps below.
1. Click and drag across the cells to set the restriction time periods.
2. Click Save.
5.4.2 Access Control
Go to Network Control→Access Control, and then you can configure the access control in
the screen.
• Access Control - Click the button to enable or disable Access Control.
• White List - Select to allow only the Internet activities specified in the table.
- 37 -

Mercusys AC1200 Specifications

General

Power Supply	9V/0.85A
Wireless Standards	IEEE 802.11ac/n/a 5 GHz, IEEE 802.11n/b/g 2.4 GHz
Frequency	2.4 GHz and 5 GHz
Signal Rate	300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz
Ports	1 x 10/100 Mbps WAN port, 4 x 10/100 Mbps LAN ports
Antenna	4 x fixed antennas
Button	Reset
Wireless Security	WPA/WPA2, WPA-PSK/WPA2-PSK
Dimensions	222 x 140 x 32 mm
