Mercusys AC1200 User Manual

AC12G
AC1200 Wireless Dual Band Gigabit Router

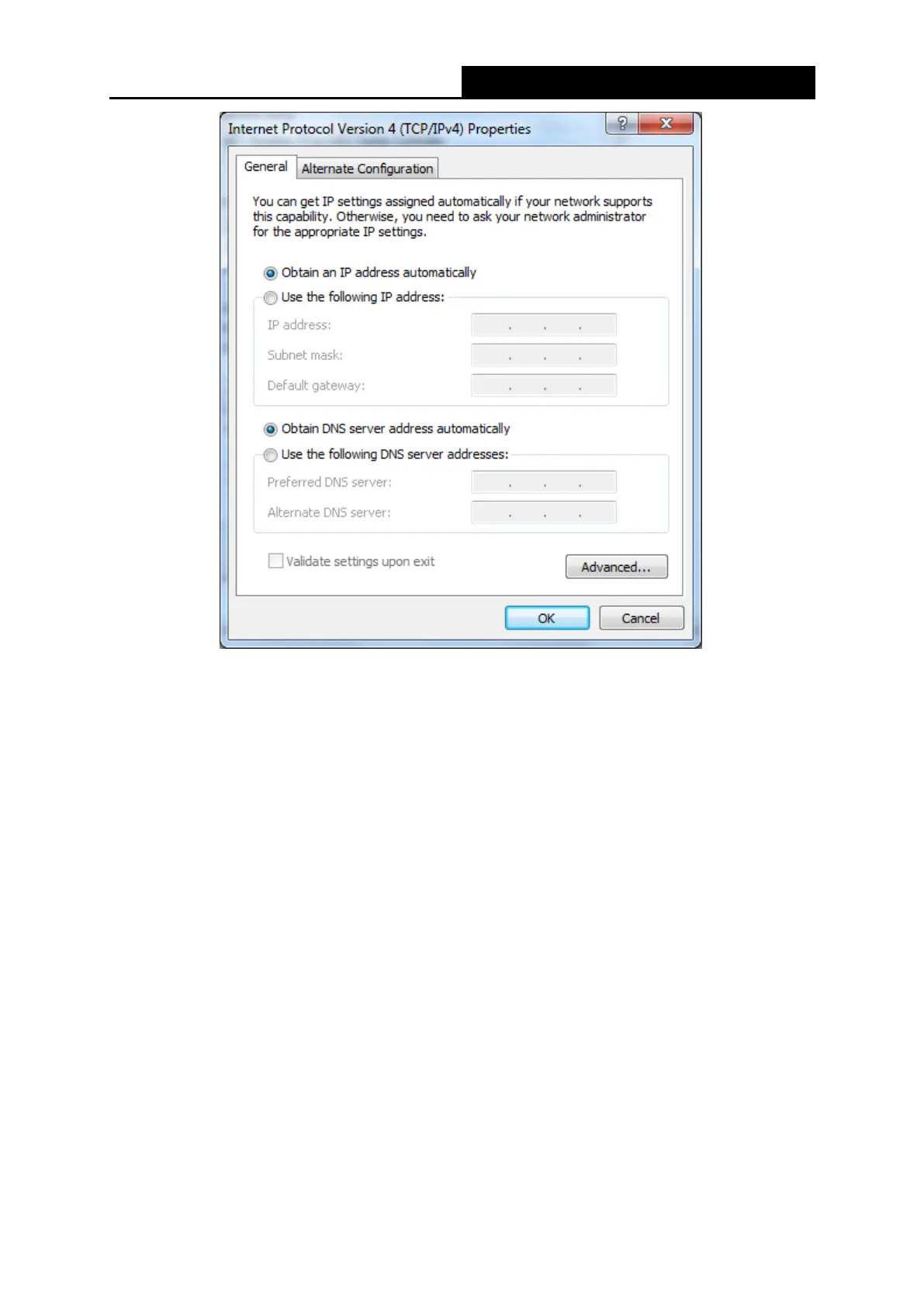

• Setting IP address manually
1 Select Use the following IP address radio button. And the following items available
2 If the router's LAN IP address is 192.168.1.1, specify the IP address as 192.168.1.x (x is
from 2 to 254), and Subnet mask is 255.255.255.0.
3 Enter the router’s LAN IP address (the default IP is 192.168.1.1) in the Default gateway
field.
4 Select Use the following DNS server addresses radio button. In the Preferred DNS
Server field you can type the DNS server IP address, which has been provided by your ISP
- 60 -

Mercusys AC1200 Specifications

General

Power Supply	9V/0.85A
Wireless Standards	IEEE 802.11ac/n/a 5 GHz, IEEE 802.11n/b/g 2.4 GHz
Frequency	2.4 GHz and 5 GHz
Signal Rate	300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz
Ports	1 x 10/100 Mbps WAN port, 4 x 10/100 Mbps LAN ports
Antenna	4 x fixed antennas
Button	Reset
Wireless Security	WPA/WPA2, WPA-PSK/WPA2-PSK
Dimensions	222 x 140 x 32 mm
