300Mbps Wireless N ADSL2+ Modem Router
- 48 -

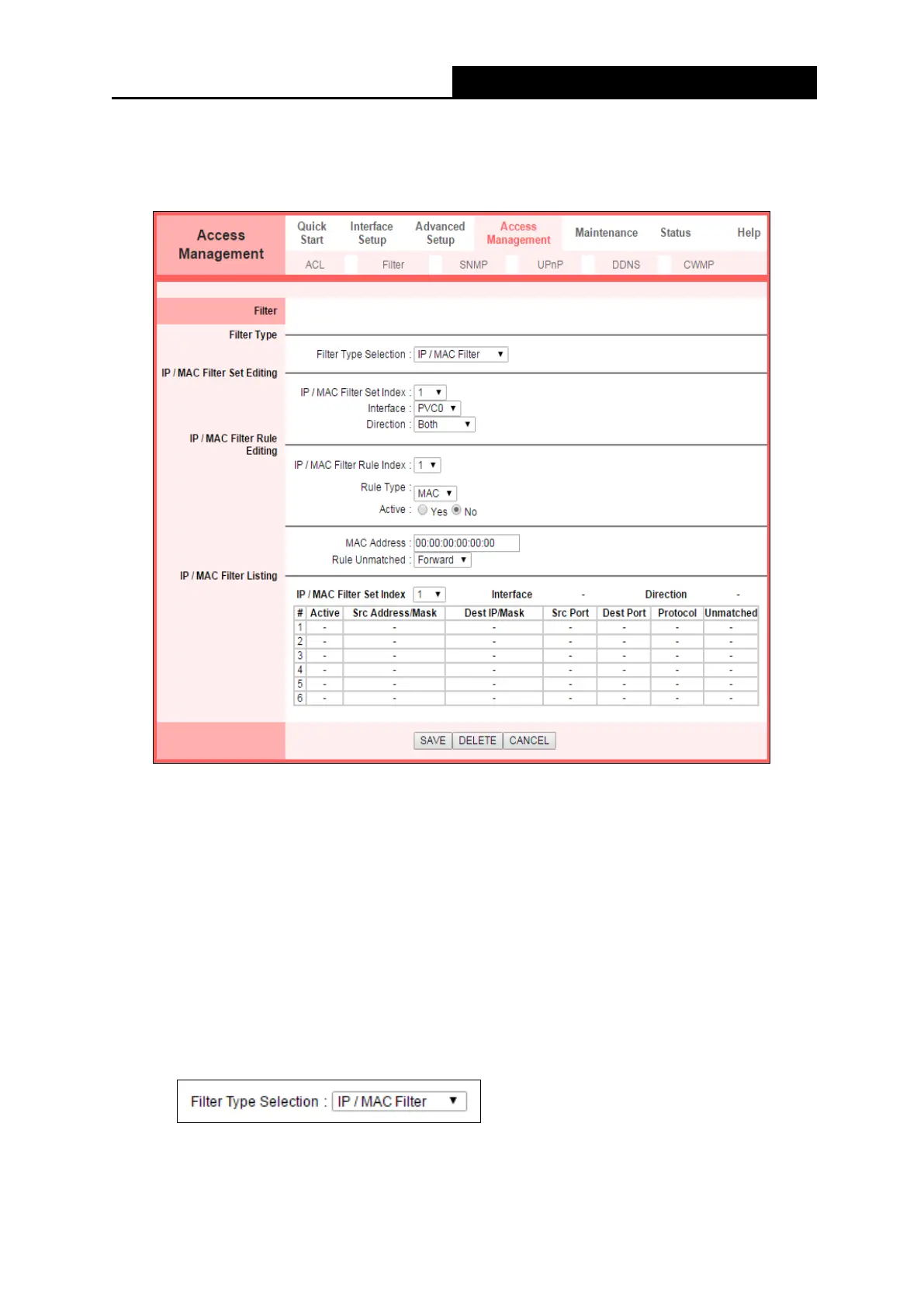

4.4.2.2 MAC Filter
Select IP/MAC Filter as the Filter type, and select MAC as the Rule type, and then you can
configure the filter rules based on MAC address.
• Rule Type: Select MAC for the MAC Filter rule.
• Active: Select Yes to make the rule take effect.
• MAC Address: Enter the MAC address for the rule.
• Rule Unmatched: If the current rule cannot match, and you select Forward, the modem
router will skip the rule and transmit directly. If you select Next, the modem router will find
the next filter rule (show in Filter list) to match.
• IP/MAC Filter Listing: This displays the information about the MAC Filter rules.
To add a MAC Address filtering entry:
For example: If you want to block the PCs with MAC addresses 00:0A:EB:00:07:BE and
00:0A:EB:00:07:5F to access the Internet, you can configure as follows. Presume the rules are
both aimed at the interface PVC0, and their indexes are (1, 1) and (1, 2).
Step 1: Select IP/MAC Filter as the Filter Type Selection.
Select the MAC as the Rule Type on the Filter screen, then you can configure the
specific rule for the example.
