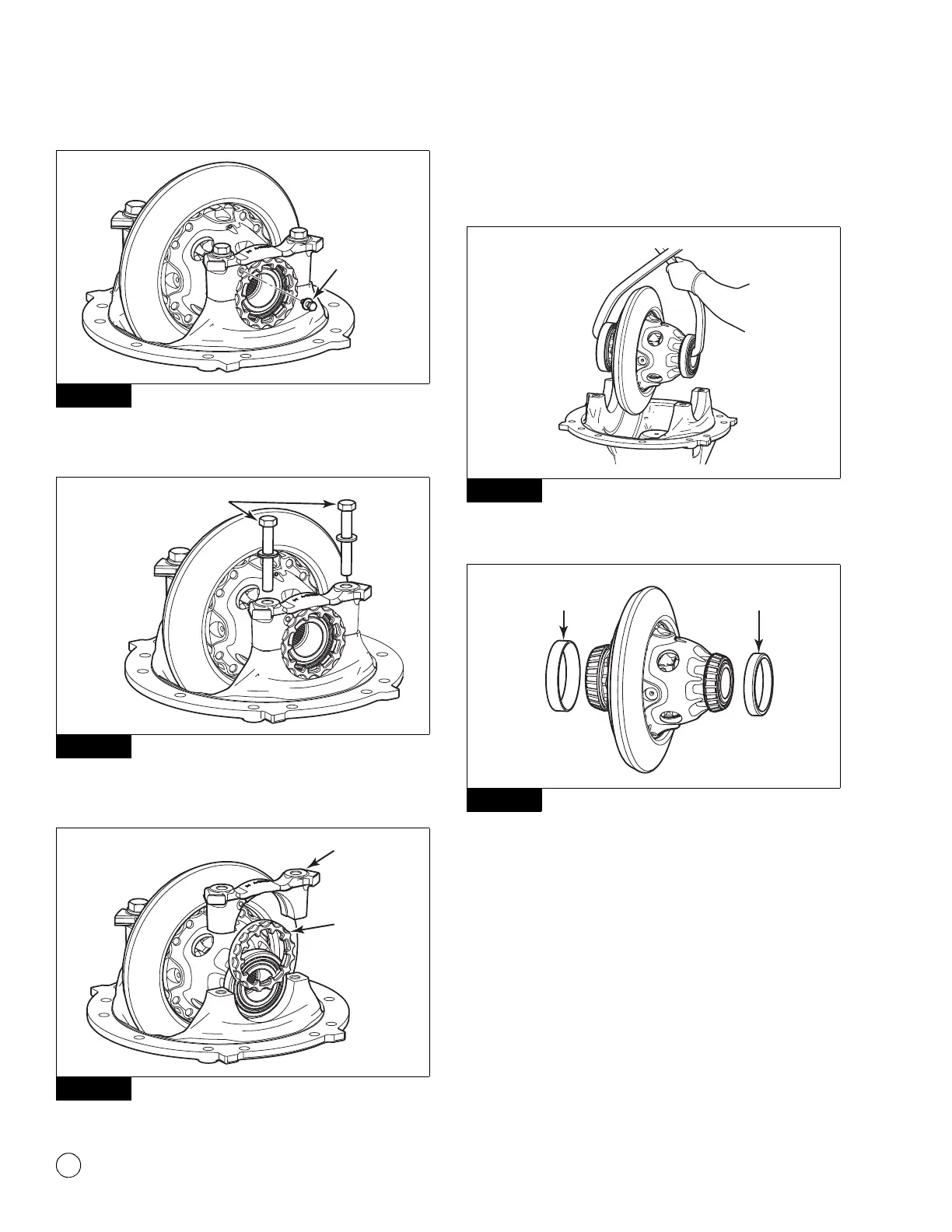

6. Remove the two capscrews and washers that secure the two
bearing caps onto the carrier. Figure 3.11.
Figure 3.11
7. Remove the bearing caps and bearing adjusting rings from the
carrier. Figure 3.12.
Figure 3.12
8. Use a lifting strap to lift the main differential and ring gear
assembly from the carrier. Place the assembly onto a work
bench. Figure 3.13.
Figure 3.13
9. Remove the bearing cups from the bearings. Figure 3.14.
Figure 3.14
Disassemble the Differential and Ring Gear
Assembly
NOTE: The marks on the plain half and flange half of the differential
assembly case will help you to match them correctly when you
assemble the carrier.
1. If the match marks on the plain half and flange half of the
differential assembly case are not visible, mark each case half
with a center punch and hammer. Figure 3.15.
