3 Removal and Disassembly
11
Meritor Maintenance Manual MM-15103 (Issued 07-17)

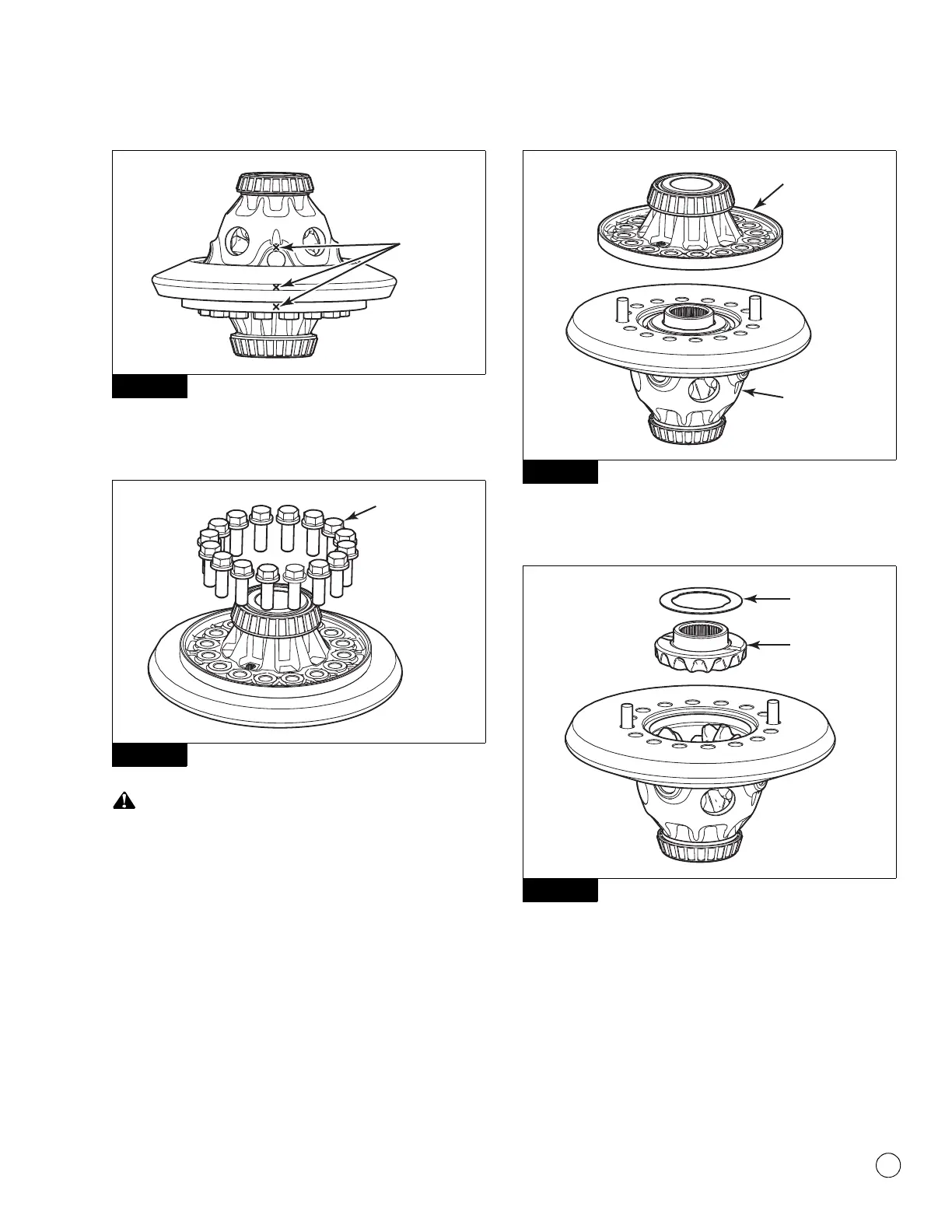

Figure 3.15
2. Remove the capscrews that secure the ring gear to the case
halves. Figure 3.16.
Figure 3.16
Use a brass or synthetic mallet for assembly and disassembly
procedures. Do not hit steel parts with a steel hammer. Pieces
of a part can break off. Serious personal injury and damage to
components can result.
3. Remove the flange half from the ring gear and plain case half.
Figure 3.17.
Figure 3.17
4. Remove the thrust washer and side gear from the plain half
case. Figure 3.18.
Figure 3.18
5. Use a press to separate the ring gear from the plain case half.
Figure 3.19.
Figure 3.15
Figure 3.16
Figure 3.17
Figure 3.18
4011992a
FLANGE
HALF
PLAIN CASE
HALF
4011987a
THRUST
WASHER
SIDE GEAR
