3 Removal and Disassembly
12
Meritor Maintenance Manual MM-15103 (Issued 07-17)

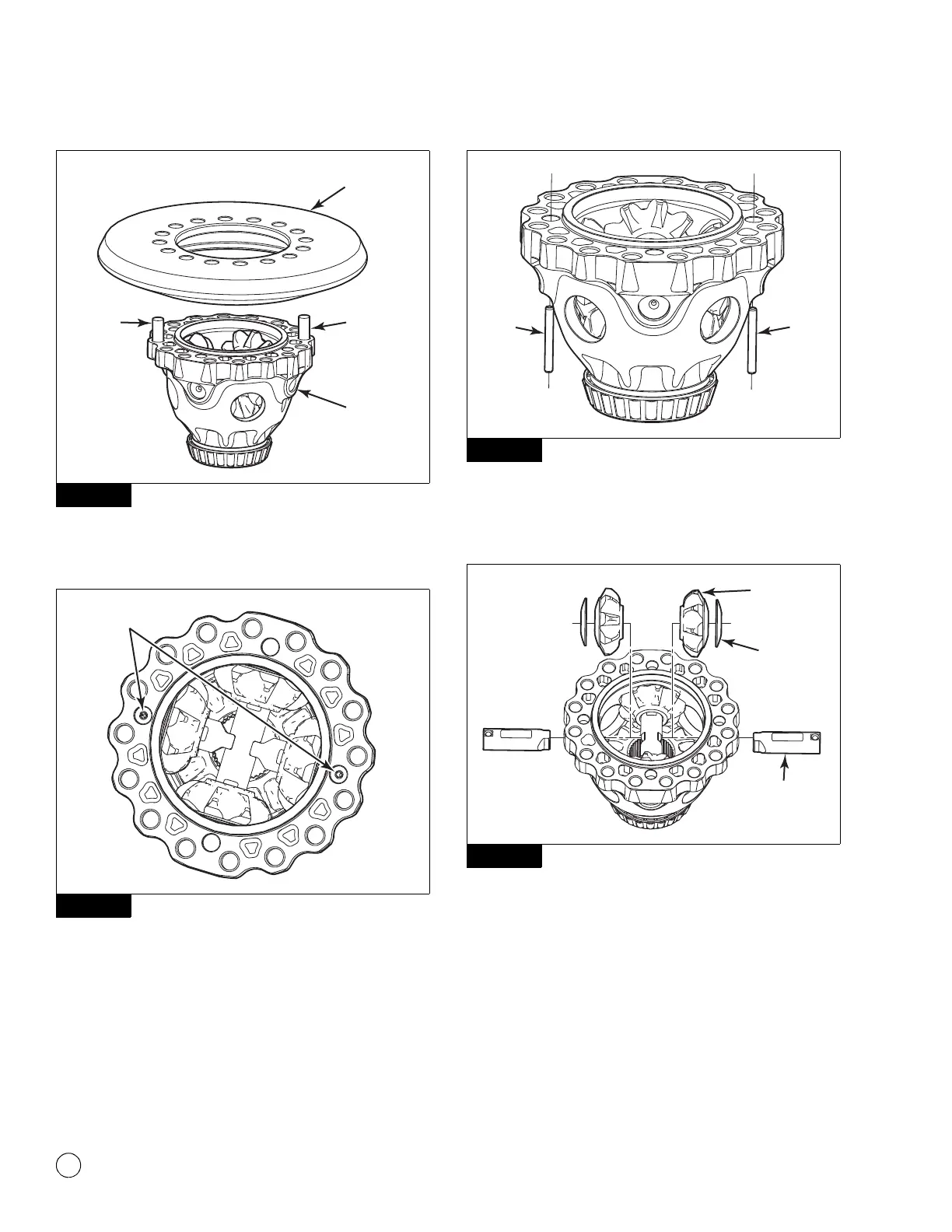

Figure 3.19
6. From the top, drive out the two roll pins from the plain half
case. Figure 3.20 and Figure 3.21.
Figure 3.20
Figure 3.21
7. Drive out the two short spider pins from the plain half case.
Remove the thrust washers and pinions from the top of the
plain half case. Figure 3.22.
Figure 3.22
8. Drive out the long spider pin from the plain half case. Remove
the thrust washers and pinions from the top of the case.
Figure 3.23.
Figure 3.19
Figure 3.20
4011988a
RING
GEAR
PLAIN
CASE
HALF
GUIDE
PIN
GUIDE
PIN
4012098a
PLAIN HALF-
TOP DOWN
ROLL PINS
Figure 3.21
Figure 3.22
4012098b
ROLL
PIN
ROLL
PIN
4012099a
PINION
THRUST
WASHER
SHORT
SPIDER PIN
To Next Page
