Metek 933 - Page 58

3-14 | Model 933 UV Analyzer

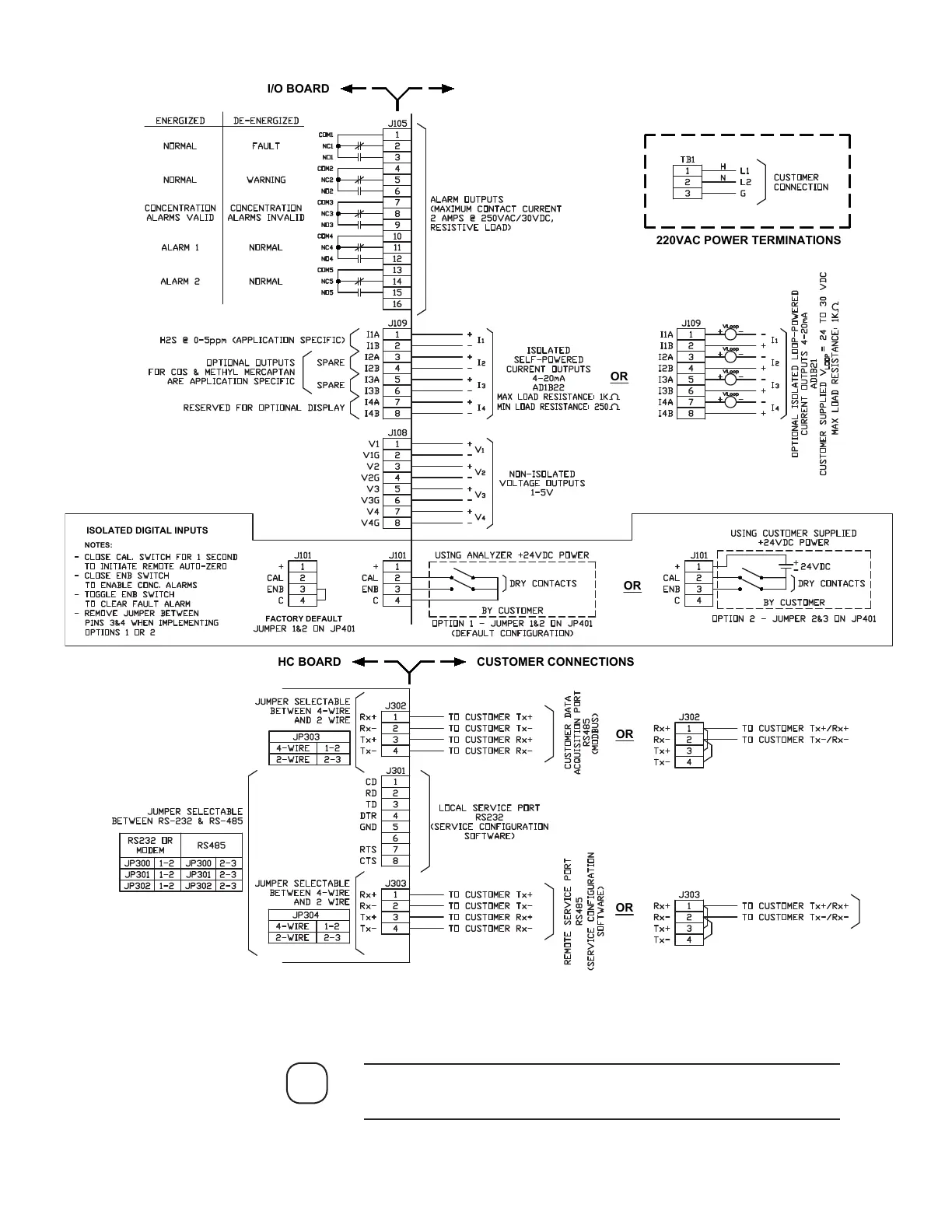

Figure 3-4.
Customer Connections
wiring schematic
(European).
See Appendix A for a North American style drawing (or Final “As-
Built” drawings in the analyzer Documentation Package).

NOTE
CUSTOMER CONNECTIONS
I/O BOARD
OR
OR
220VAC POWER TERMINATIONS
CUSTOMER CONNECTIONS
HC BOARD
OR
OR
REFERENCE: CERTIFICATE NO:
KEMA 02ATEX2247 X
ISOLATED DIGITAL INPUTS
FACTORY DEFAULT
NOTES:
REFERENCE: CERTIFICATE NO:
IECEx DEK12.0035X
