Metrohm 761 Compact IC - Fig. 10: Connection of the Pulsation Dampener

2 Installation
761 Compact IC
26
37
39
36 35 62
32
26
6061

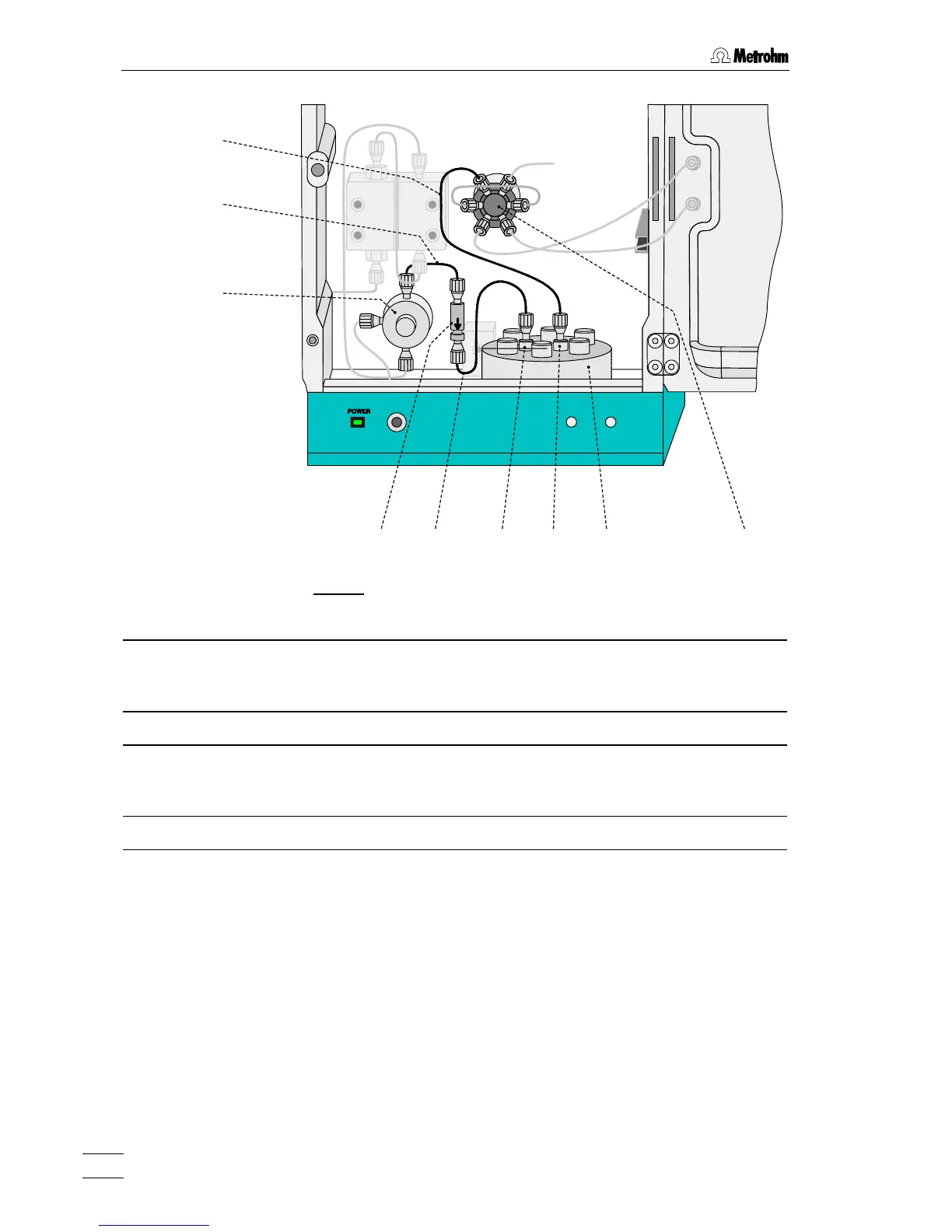

Fig. 10
: Connection of the pulsation dampener
26
Inlet capillary for injector
6.1831.010 PEEK capillary,
length L = 24 cm
39 Purge valve
32 Injection valve 60 Pulsation dampener (6.2620.150)
35 Connection capillary
6.1831.010 PEEK capillary,
length L = 13 cm
61 Connection to injection valve
36 Filter unit PEEK (6.2821.120) 62 Connection to purge valve
37 Connection capillary
6.1831.010 PEEK capillary,
length L = 13 cm
