3 Installation
858 Professional Sample Processor
￭￭￭￭￭￭￭￭
23

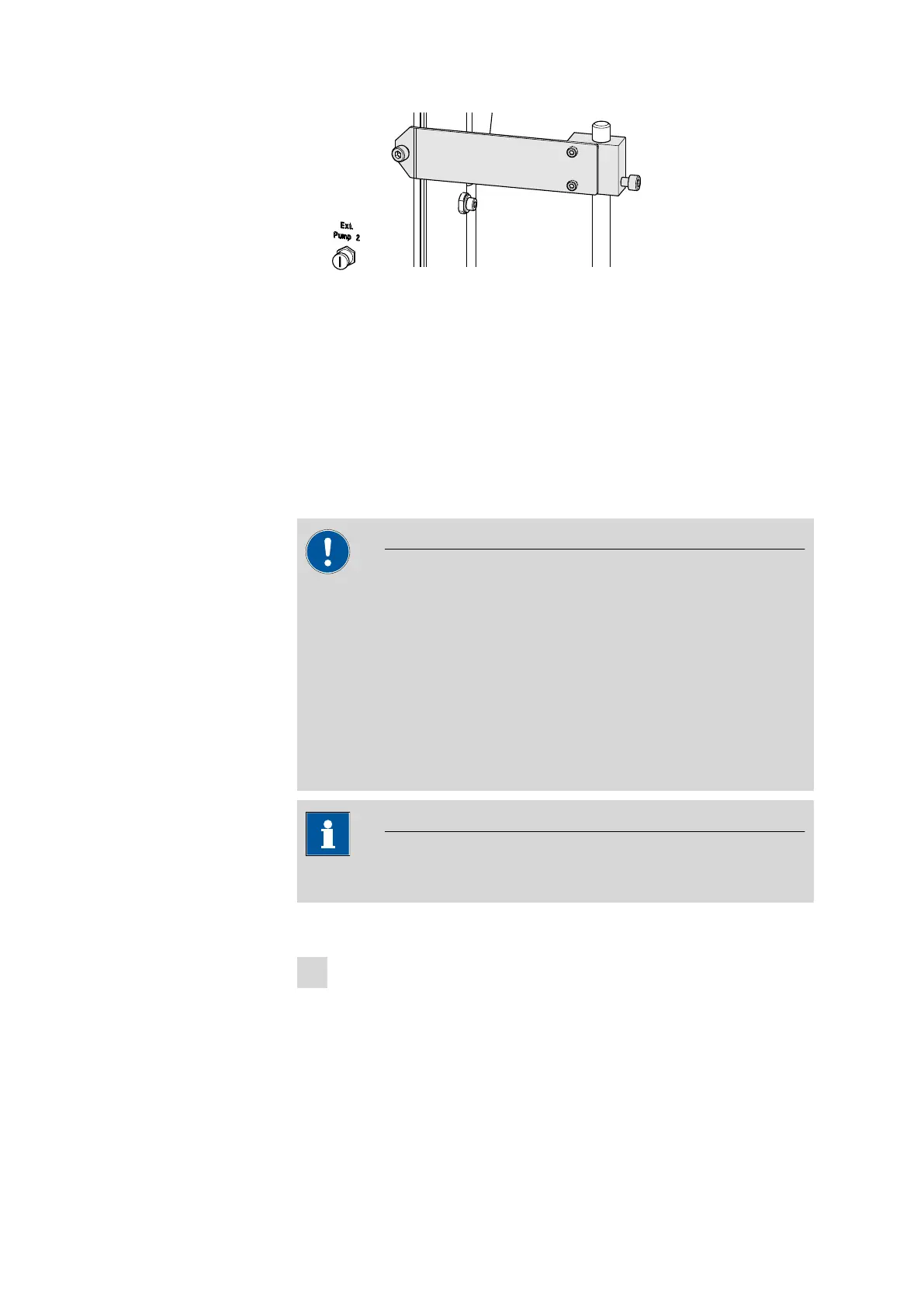

Figure 20 Fixing the support rod
The accessories for the dilution vessel and the necessary tubings and
capillaries can then be attached. Additional information can be found
in the documentation for the corresponding accessory set.
3.7 Placing tubing and cables in the guide chain
Tubing, capillaries and cables can be placed in the guide chain.
The guide chain contains a firmly installed clip on each chain link.
CAUTION
When mounting tubing, capillaries and cables, make sure that there is
no traction on the drives while moving the lift or swinging the robotic
arm. Traction on the drive can overload and damage the drive.
If a robotic arm is used, we recommend placing the tubing, capillaries
and cables only above the third chain link in the guide chain to prevent
traction on the drives.
Do not or only partially place rigid tubings, as for example aspiration
tubings made of PTFE, into the guide chain.
NOTICE
Make sure that tubing, capillaries and cables do not kink.
Inserting and removing the tubing, capillaries and cables requires no tools.
1
Placing tubing, capillaries and cables
￭ Press one side of the clip downwards and place tubing, capillaries
or cables in the guide chain.
