2.3 Connector strip
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
10
￭￭￭￭￭￭￭￭
858 Professional Sample Processor
2.3 Connector strip
USB 2
USB 1
Contr.
MSB 1
MSB 2
MSB 3
Made by Metrohm
Herisau Switzerland
P: 115W U: 100 - 240 V f: 50 - 60 Hz
WARNING - Fire Hazard -
For continued protection replace only
with the same type and rating of fuse
Nr.
1 2 3 4 5

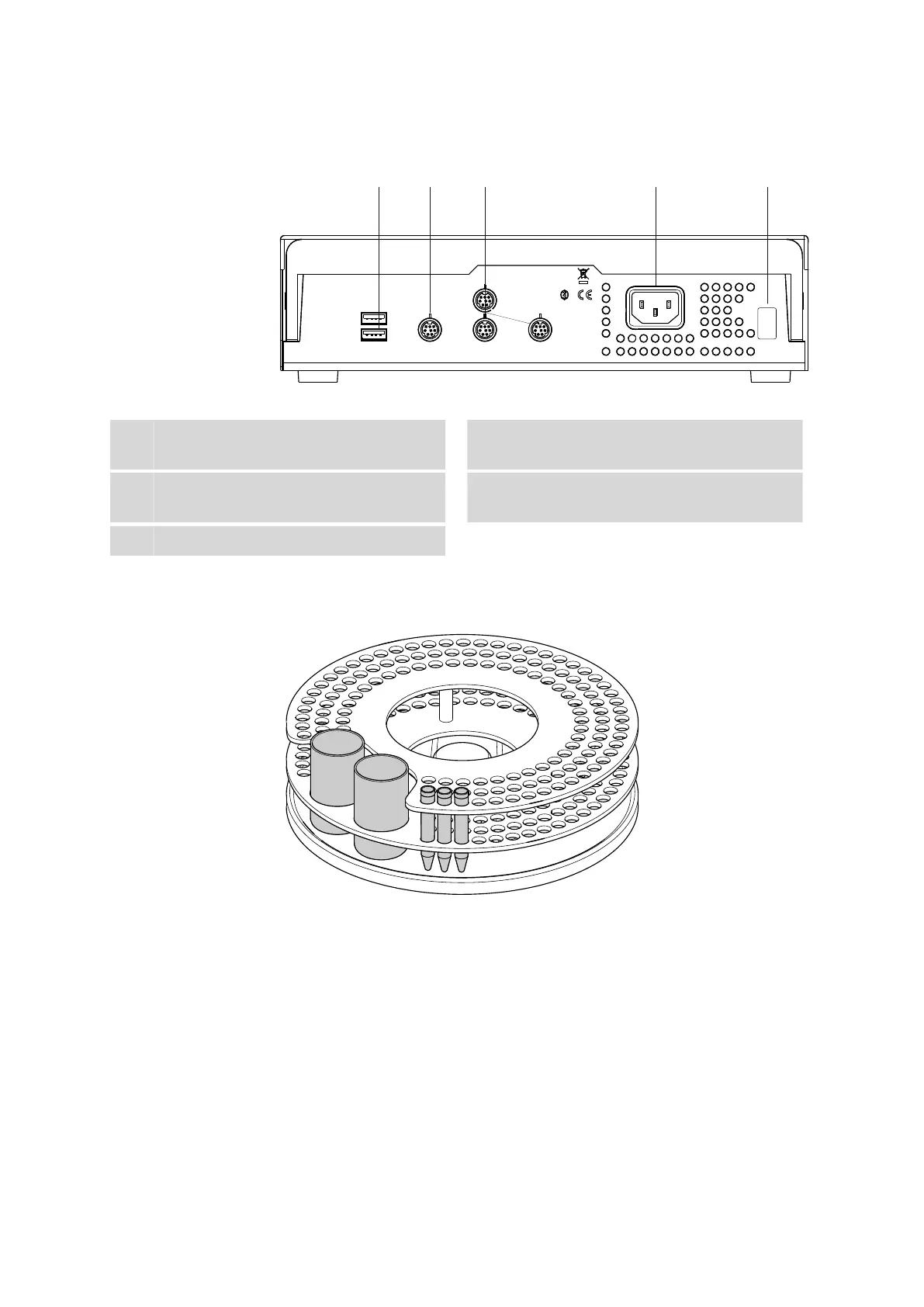

Figure 3 Connector strip 858 Professional Sample Processor
1
USB connectors
2
Controller connector
For the connection to the PC
3
MSB connectors
For dosing devices, stirrers, etc.
4
Power connection
5
Type plate
2.4 Sample racks
Figure 4
Sample rack with sample vessels
A sample rack is a turntable that acts as a receptacle for sample vessels.
Various types of sample racks are available for different numbers and types
of sample vessels. The 858 Professional Sample Processor requires sample
racks with up to a maximum of 42 cm in diameter or smaller.
Attaching a rack
Attach the sample racks in such a way that the guide pins of the turntable
engage through the guide openings in the base of the rack.
