3 Installation
858 Professional Sample Processor
￭￭￭￭￭￭￭￭
21
2
Fastening the stand plate
￭ Hook the fixing clamps on the assembly rail.
￭ Tighten the hex screws of the fixing clamps.

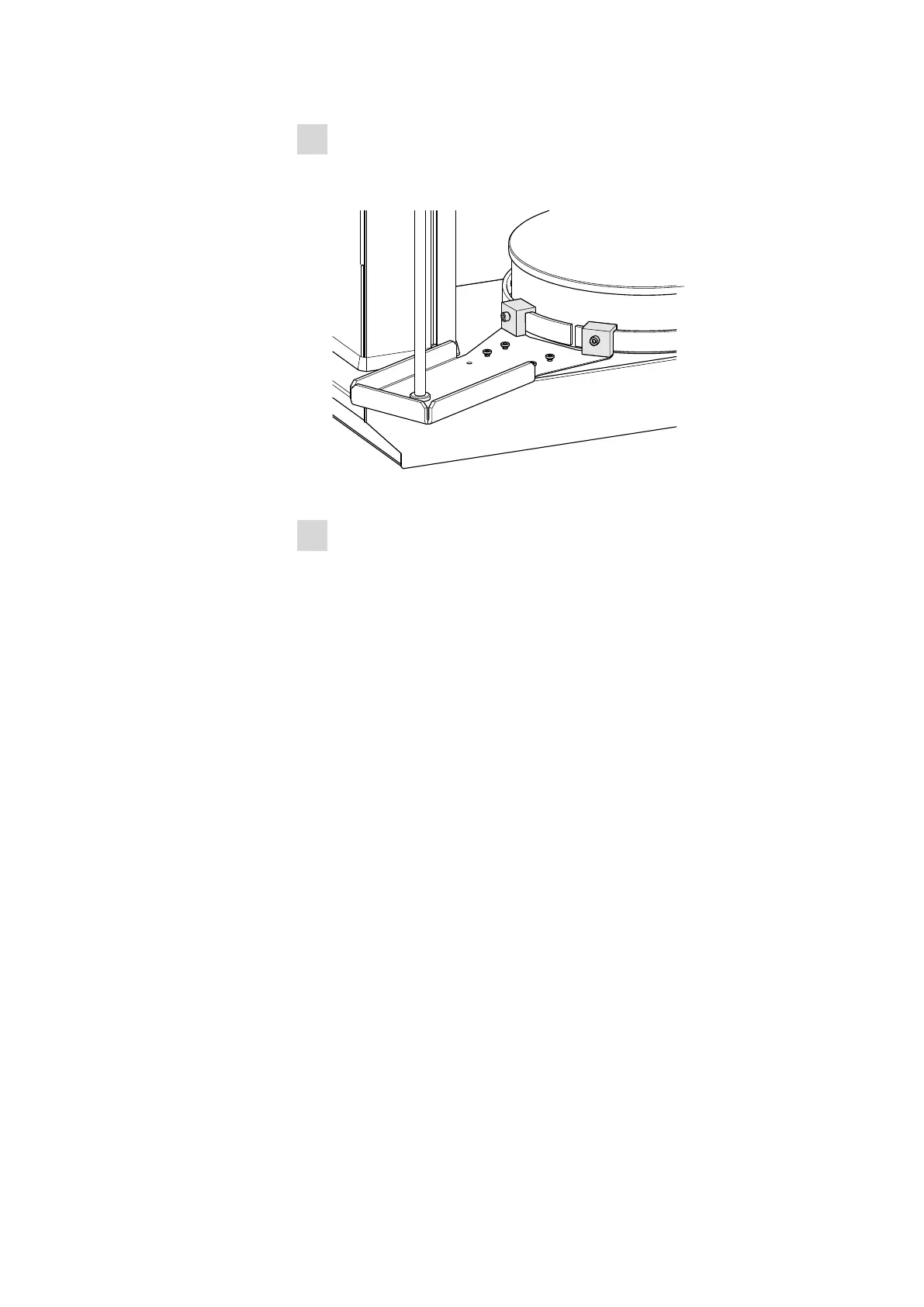

Figure 17 Mounting the stand plate
3
Mount the stirrer and dilution vessel
￭ Hang the magnetic stirrer (801 Stirrer) on the support rod and
align it.
￭ Fix the orientation of the stirrer using the red knurled screw on
the rear.
￭ Fasten the 6.2013.010 clamping ring, see the following figure.
￭ Fasten the dilution vessel lid to the support rod.
