3 Installation
858 Professional Sample Processor
￭￭￭￭￭￭￭￭
27

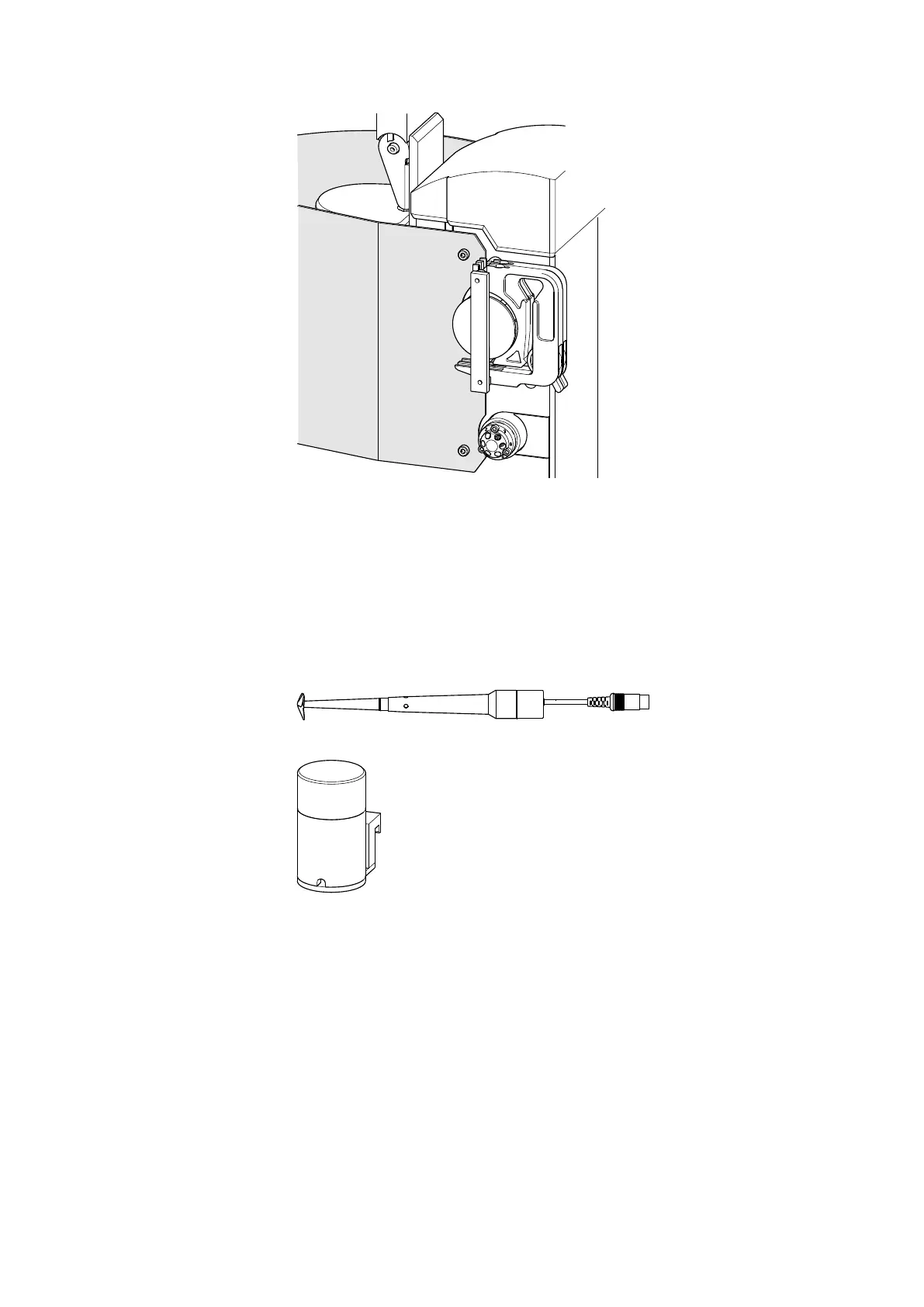

Figure 22 Mounting the safety shield
If a different robotic arm is used, then a different, suitable safety shield
can be ordered from Metrohm.
3.10 Connecting the tower stirrer
A DIN socket for connecting a rod stirrer (802 Stirrer) or a magnetic stir-
rer (741 Stirrer) is located on the rear of the tower.
Figure 23
Rod stirrer 802 Stirrer
Figure 24 Magnetic stirrer 741 Stirrer
Take care to observe correct orientation of the contact pins when plug-
ging in the stirrer connection cable. The rib on the outside of the plug
must match the reference mark (on the left) on the socket.
