Metrohm 858 - Figure 13 Mounting the Dosino; Figure 14 6.1618.020 Thread Adapter

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
3 Installation
858 Professional Sample Processor
￭￭￭￭￭￭￭￭
19
First remove the second and third screws from the bottom on the side
wall. Then fix the filtration cell holder or Dosino holder in place with the
two screws supplied.
Installing the Dosino
If a Dosino is required, then it can be installed in the 6.2057.040 Dosino
holder.

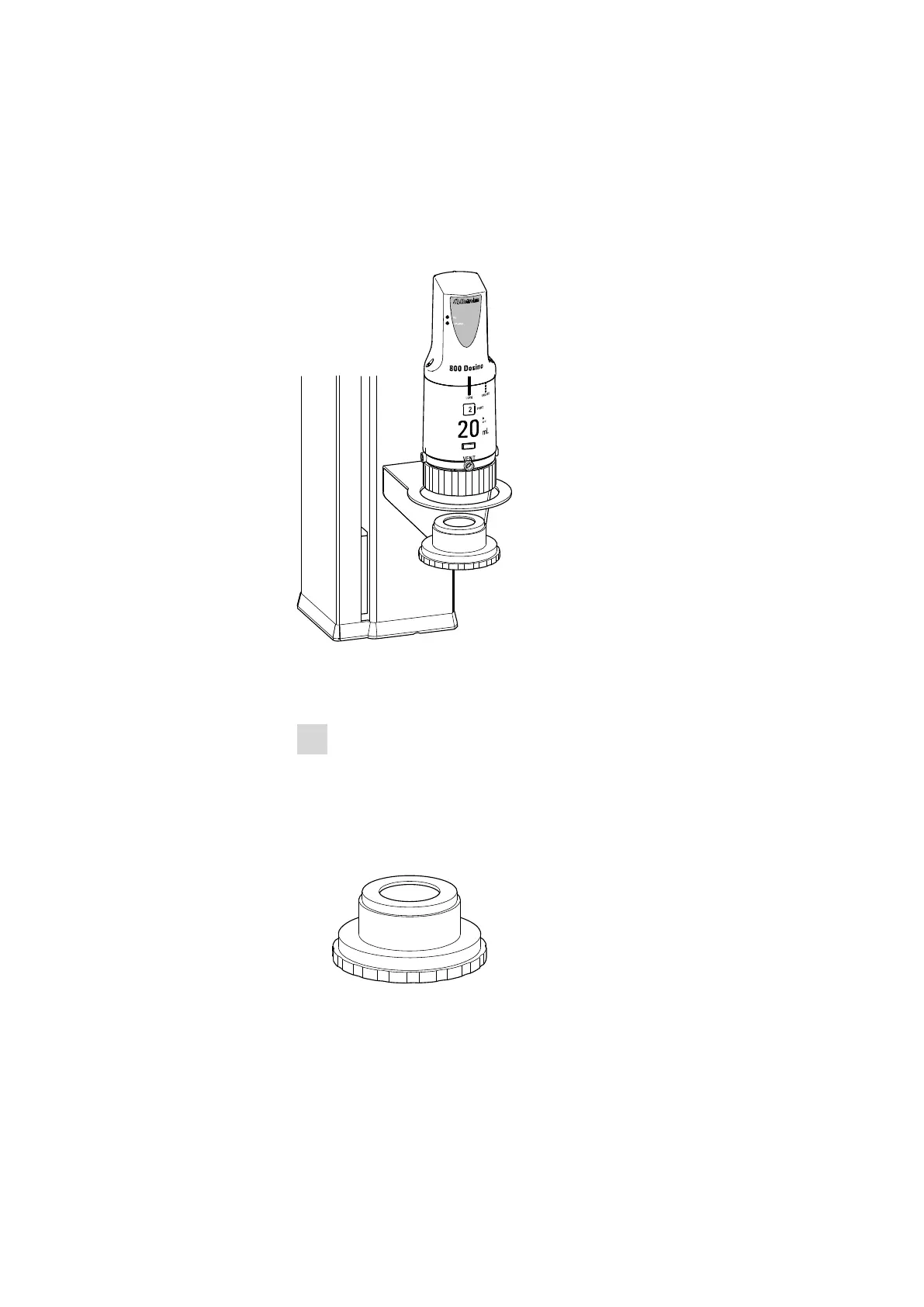

Figure 13 Mounting the Dosino
Mount the Dosino as follows:
1
Fixing the Dosino
￭ Guide the thread adapter GL 45 (6.1618.020) from below into the
Dosino holder.
￭ Attach the dosing unit onto the Dosino holder and fasten the
thread adapter.
￭ Connect the tubings.
Figure 14 6.1618.020 Thread adapter
