Metrohm 858 - Connecting the instrument to the power grid

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
2 Overview of the instrument
858 Professional Sample Processor
￭￭￭￭￭￭￭￭
9
2.2 Rear
USB 2
USB 1
Contr.
MSB 1
MSB 2
MSB 3
Made by Metrohm
Herisau Switzerland
P: 115W U: 100 - 240 V f: 50 - 60 Hz
WARNING - Fire Hazard -
For continued protection replace only
with the same type and rating of fuse
Swing
Head
Ext.
Pump 1
Ext.
Pump 2
Nr.
1
2
4
5
3

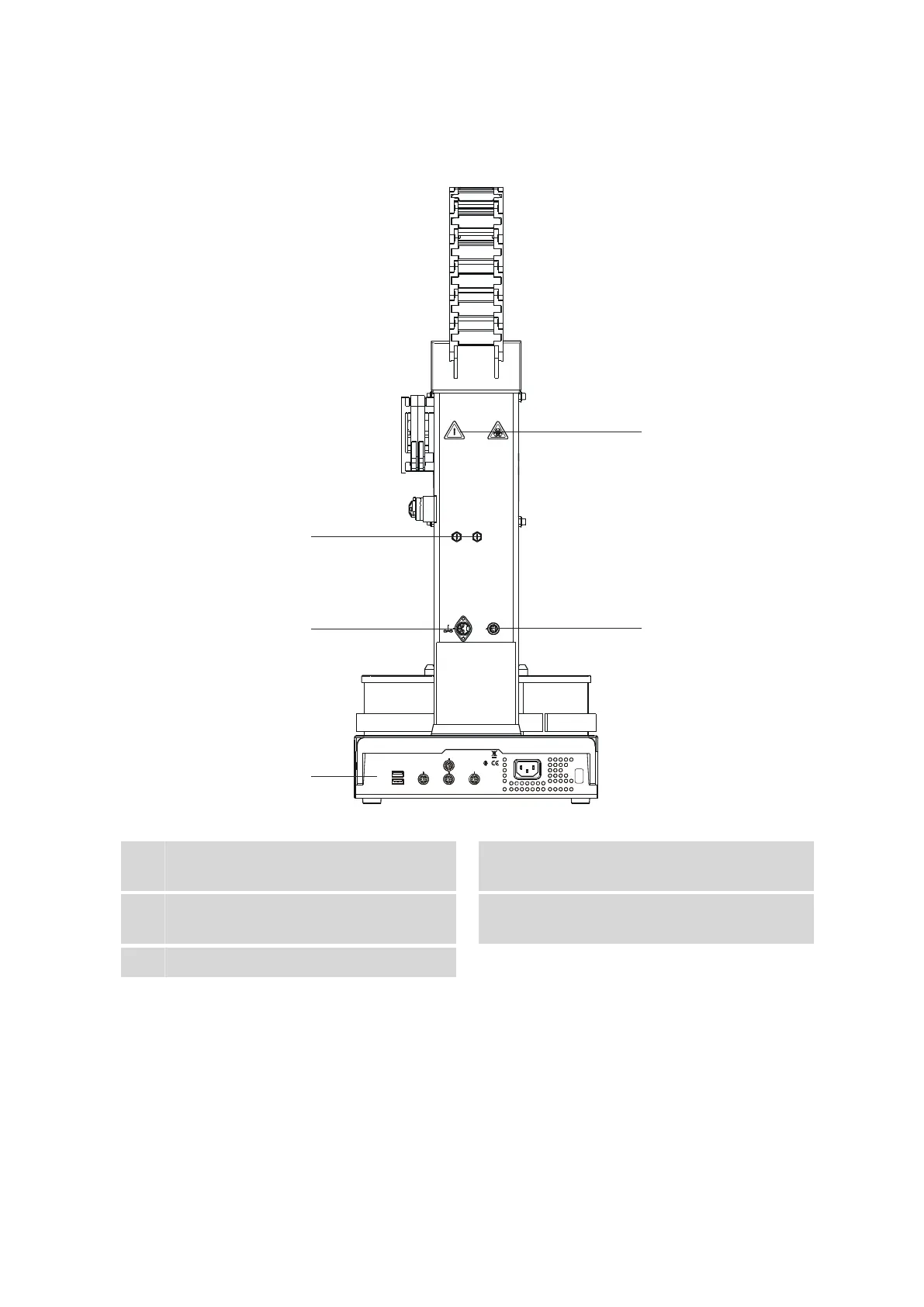

Figure 2 Rear 858 Professional Sample Processor
1
Pump connectors
M8 connector for external pumps
2
Stirrer connector
For rod stirrer and 741 Magnetic Stirrer
3
Connector strip
Details (see chapter 2.3, page 10)
4
Warning symbols
(see chapter 1.6.3, page 5)
5
786 Swing Head connector
