3.14.2 Connecting a stirrer or titration stand
You can use the following instruments:
These devices have a built-in magnetic stirrer (stirring "from below"):
￭ 801 Stirrer
￭ 803 Ti Stand
This device has no built-in magnetic stirrer (stirring "from above"):
￭ 804 Ti Stand with rod stirrer 802 Stirrer
Connect a stirrer or a titration stand as follows:
1
Connecting the stirrer or titration stand
￭ Exit the control software.
￭ Connect the connection cable of the magnetic stirrer or of the
titration stand to one of the sockets marked with MSB on the
rear of the control instrument.
￭ 804 Ti Stand only: Connect the rod stirrer to the stirrer connector
(socket with stirrer symbol) of the titration stand.
￭ Start the control software.
USB 1
Contr.
MSB 2
MSB 3

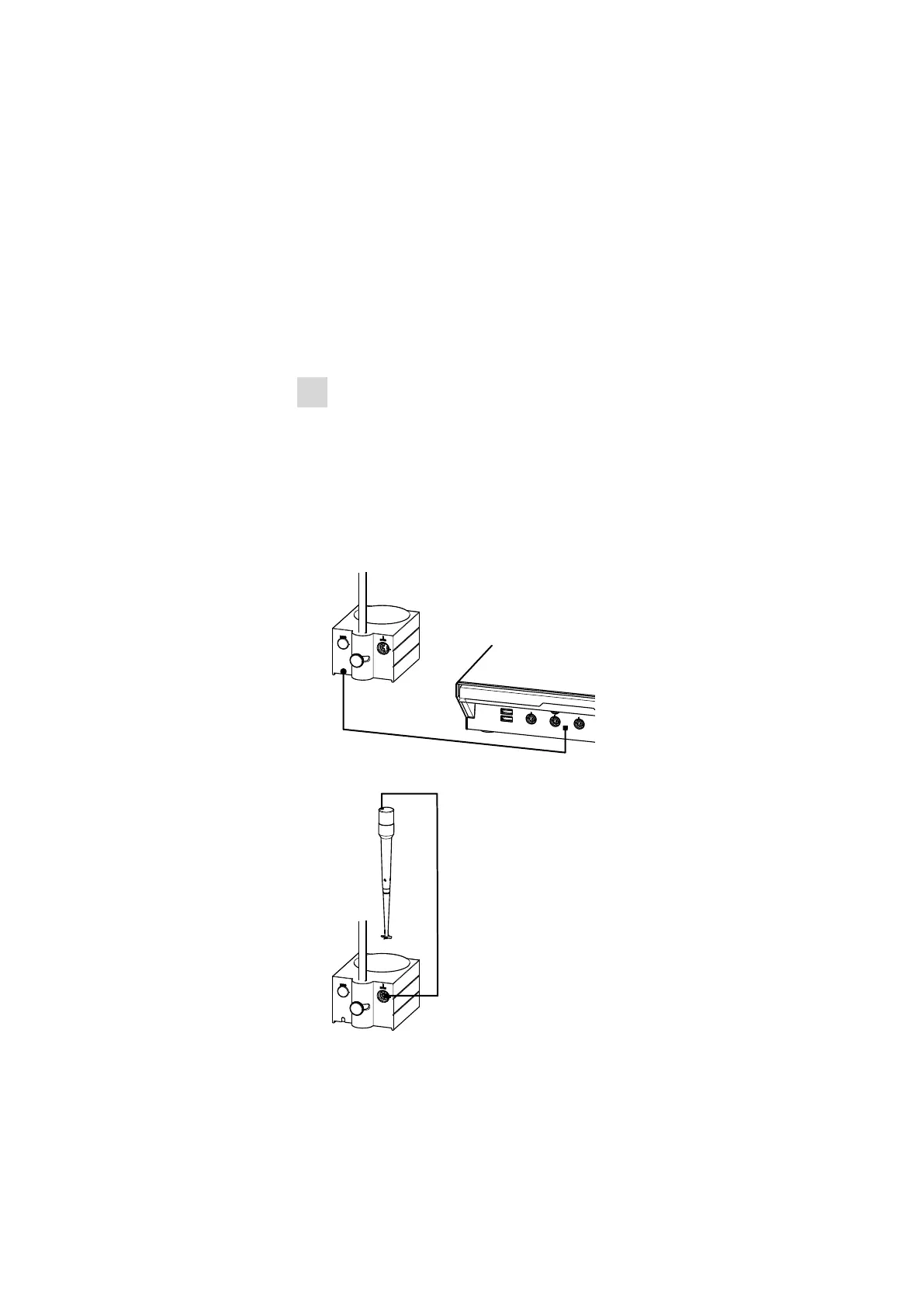

Figure 34 Connecting an MSB stirrer
Figure 35 Connecting the rod stirrer to the titration stand
