2.1 Quick Start Guide for the Experienced User
1) Turn the Receiver ON
Push the Power ON button to switch on the i5000™ receiver. The Metrotech™ welcome screen is displayed for a
few seconds. This screen also displays the model number and the rmware revision number.
¥ªªª
™
METROTECH Utility Locator
ISO 9001:2000 Certified
Version 1.701/1.621

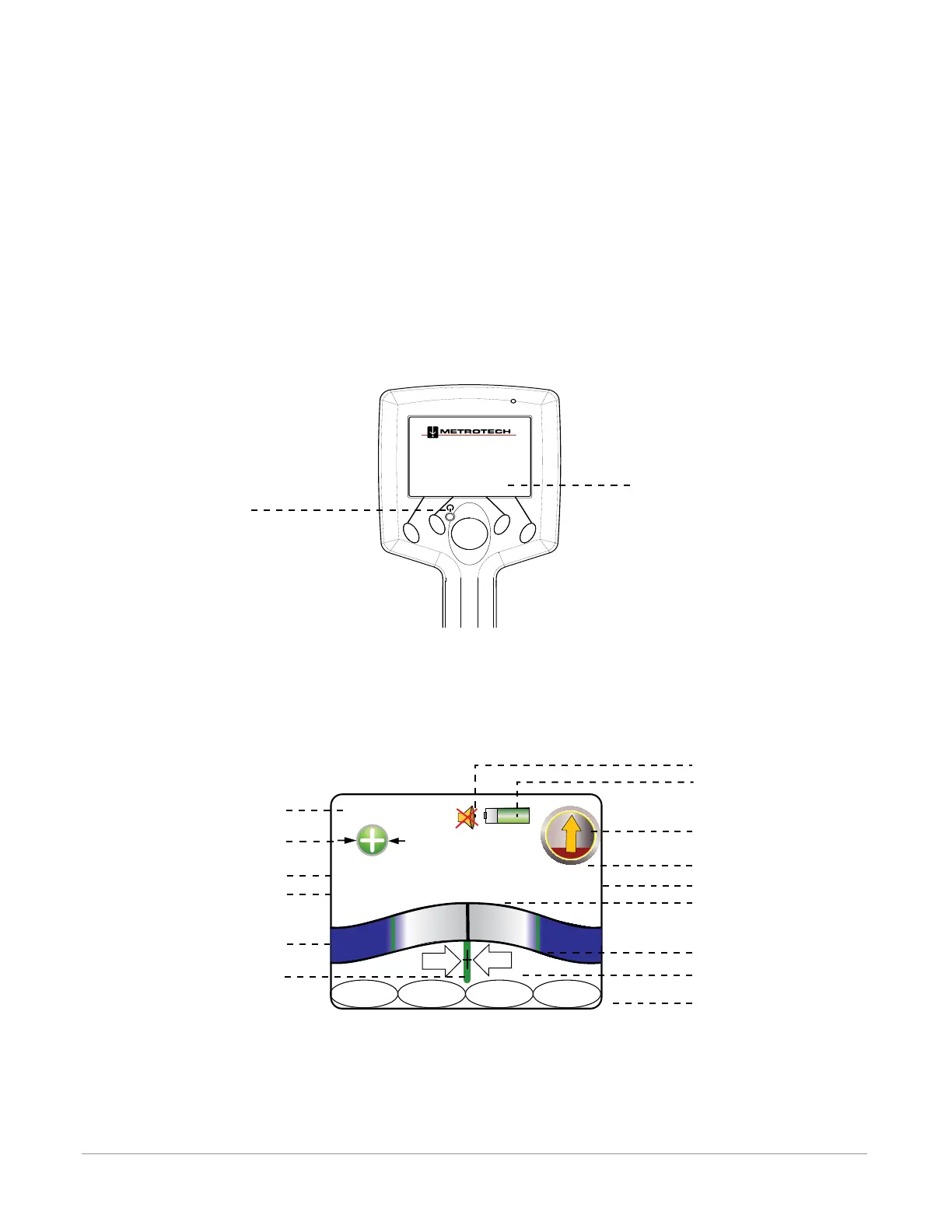

Figure 2-1 i5000 Welcome Screen
The receiver display then reverts to the main locating screen. The receiver is ready to perform locates.
Freq GainMenu
Vol
458
491Hz
Man
42%
82.8 dB
Figure 2-2 Line Locate Operational Interface in Manual Gain Mode
2
Quick Start Guide
Power
ON
Button
Firmware releases version
g - Volume Level in Use
h - Volume Level in Use
i - Forward-Looking
Guidance Coil
j - Distortion Alert
l - 000-999 Signal Strength
k - Detected Signal Strength
m - Max Peak Antenna Bar Graph
n - Left/Right Guidance Arrows
o - i5000 Softkeys
Frequency in Use - f
Signal Select in Use - e
Auto/Maual Gain Mode - d
Signal Gain Sensitivity in Use - c
Active Peak Antenna Bar Graph - b
Null Antenna Centerline - a
