Metrotech MetroMark i5000 Series User Manual

26 | i5000™ MetroMark™ Manual
Doc. No.:R12015 Metrotech Copyright © 2008

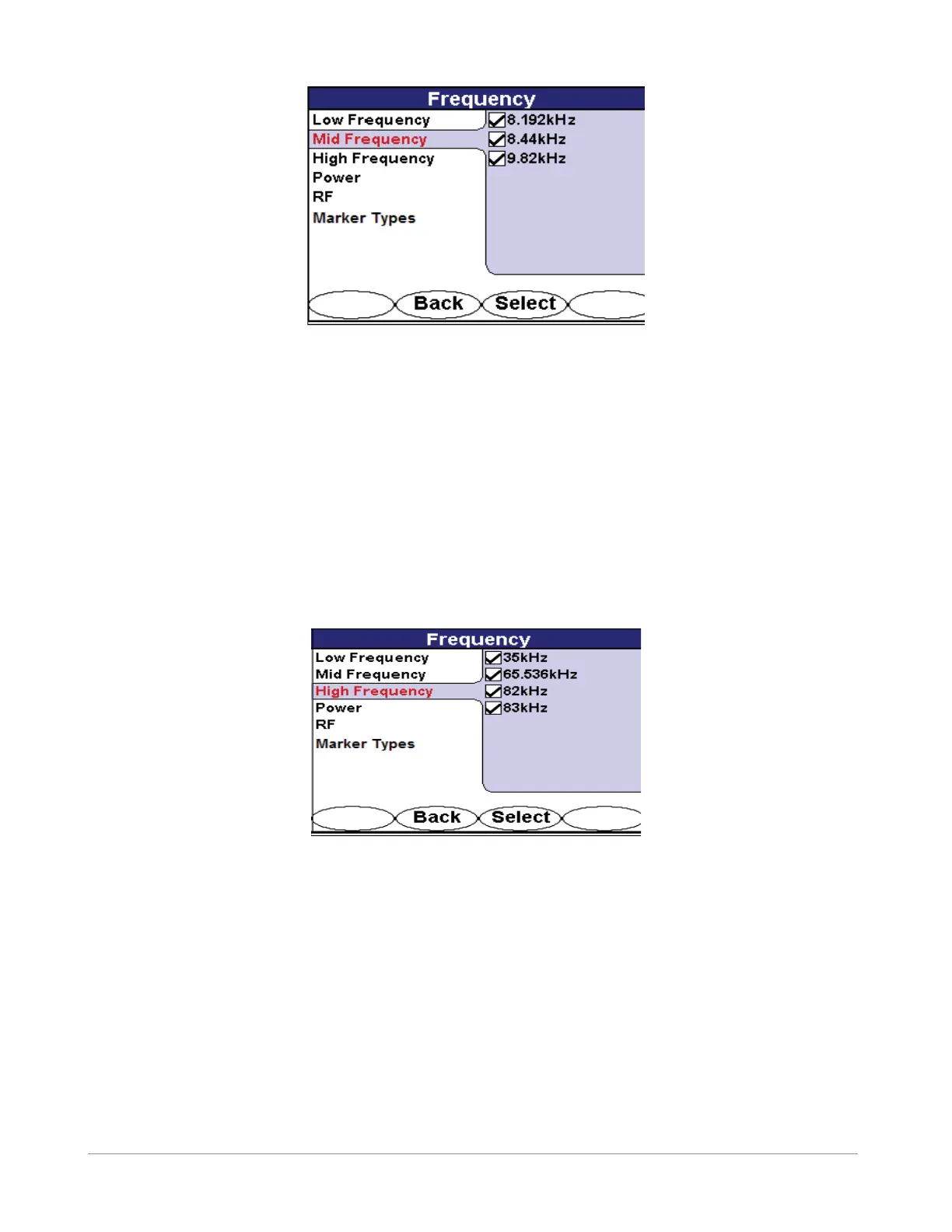

Figure 6-4 Mid Frequency Selection Screen in Frequency Menu
6.2.1.3 High Frequency
High frequencies are those above 10kHz.
Use the 4-way navigation button to move up and down the frequency list. Use the 4-way navigation button to
move right to highlight the frequencies. Press the <Select> softkey to activate or deactivate specic or all fre-
quencies.
Deactivating frequencies does not permanently remove these from the i5000 receiver. Access the frequency
menu to reactivate them.
Activated frequencies can be selected from the operational interface by pressing the <Freq> softkey. Deactivated
frequencies will be unavailable for use. Selecting fewer frequencies allows faster toggling between frequencies
from the operational interface.
Figure 6-5 High Frequency Selection Screen in Frequency Menu
6.2.1.4 Power
The Power menu allows selection between 50Hz/60Hz passive locating modes and their harmonics.
Use the 4-way navigation button to move up and down the frequency list. Use the 4-way navigation button to
move right to highlight the frequencies. Press the <Select> softkey to activate or deactivate specic or all fre-
quencies.
Deactivating frequencies does not permanently remove these from the i5000 receiver. Access the frequency
menu to reactivate them.
Activated frequencies can be selected from the operational interface by pressing the <Freq> softkey. Deactivated
frequencies will be unavailable for use. Selecting fewer frequencies allows faster toggling between frequencies
from the operational interface.
