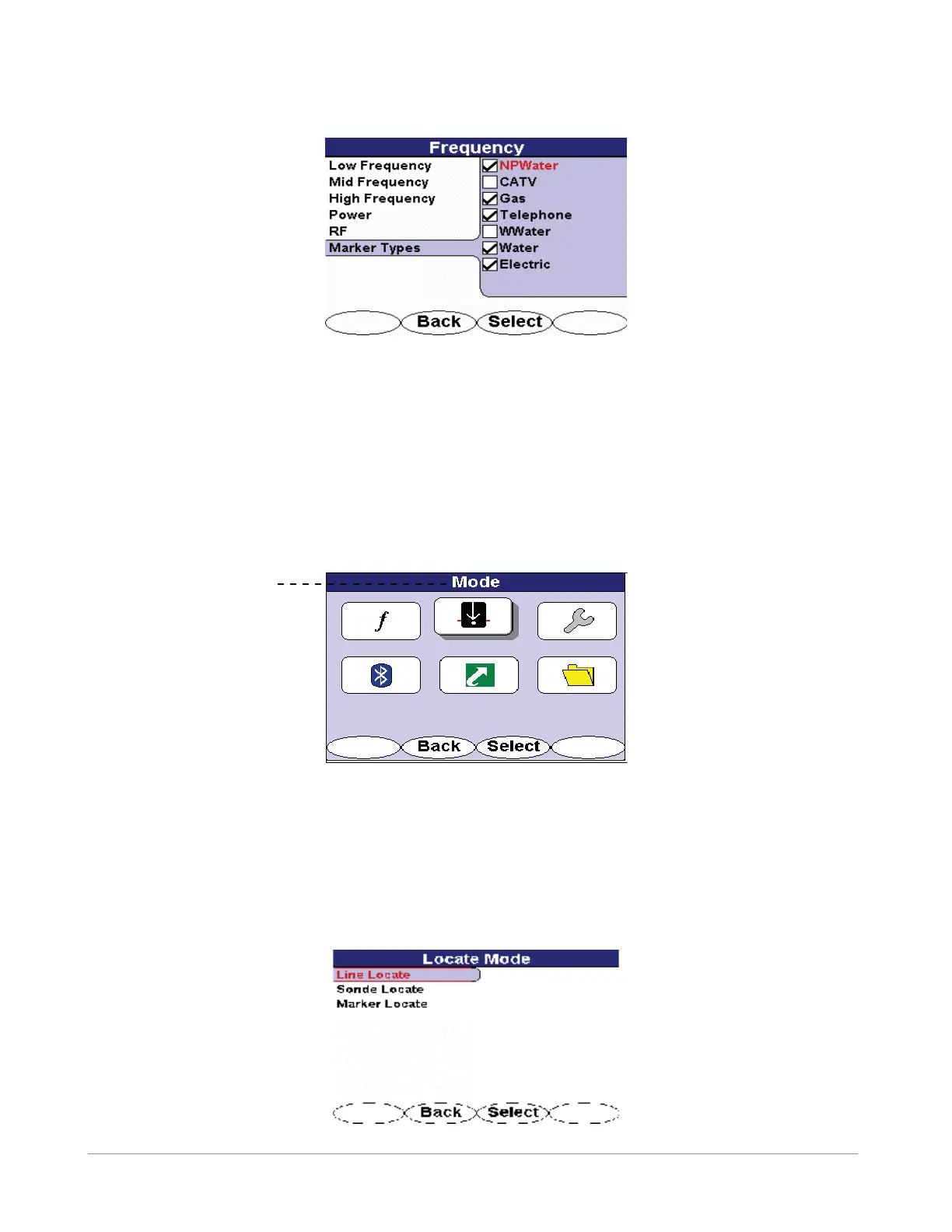

Figure 6-8 Frequency Selection Screen in Marker Mode
6.2.2 Mode Menu
The i5000 MetroMark receiver has three locate modes - line locate, sonde locate, and marker locate.
To access the locate mode menu, use the 4-way navigation button to highlight Mode. The chosen menu is la-
beled at the top of the menu screen.
Press the <Select> softkey to open the desired menu screen. Press <Back> to return to the operational interface.
Use the 4-way navigation button to select another menu.
Figure 6-9 Mode Menu Selection
6.2.2.1 Line Locate
Line Locate mode is used to trace the cable using a rack-mount transmitter signal or a portable transmitter signal.
To access the line locate mode, use the 4-way navigation button to select the desired mode.
Press the <Select> softkey to select the desired mode. The receiver will automatically return to chosen opera-
tional interface.
Figure 6-10 Line Locate Selection Screen in Mode Menu
Mode Menu
