8 | i5000™ MetroMark™ Manual
Doc. No.: R12015 Metrotech Copyright © 2008

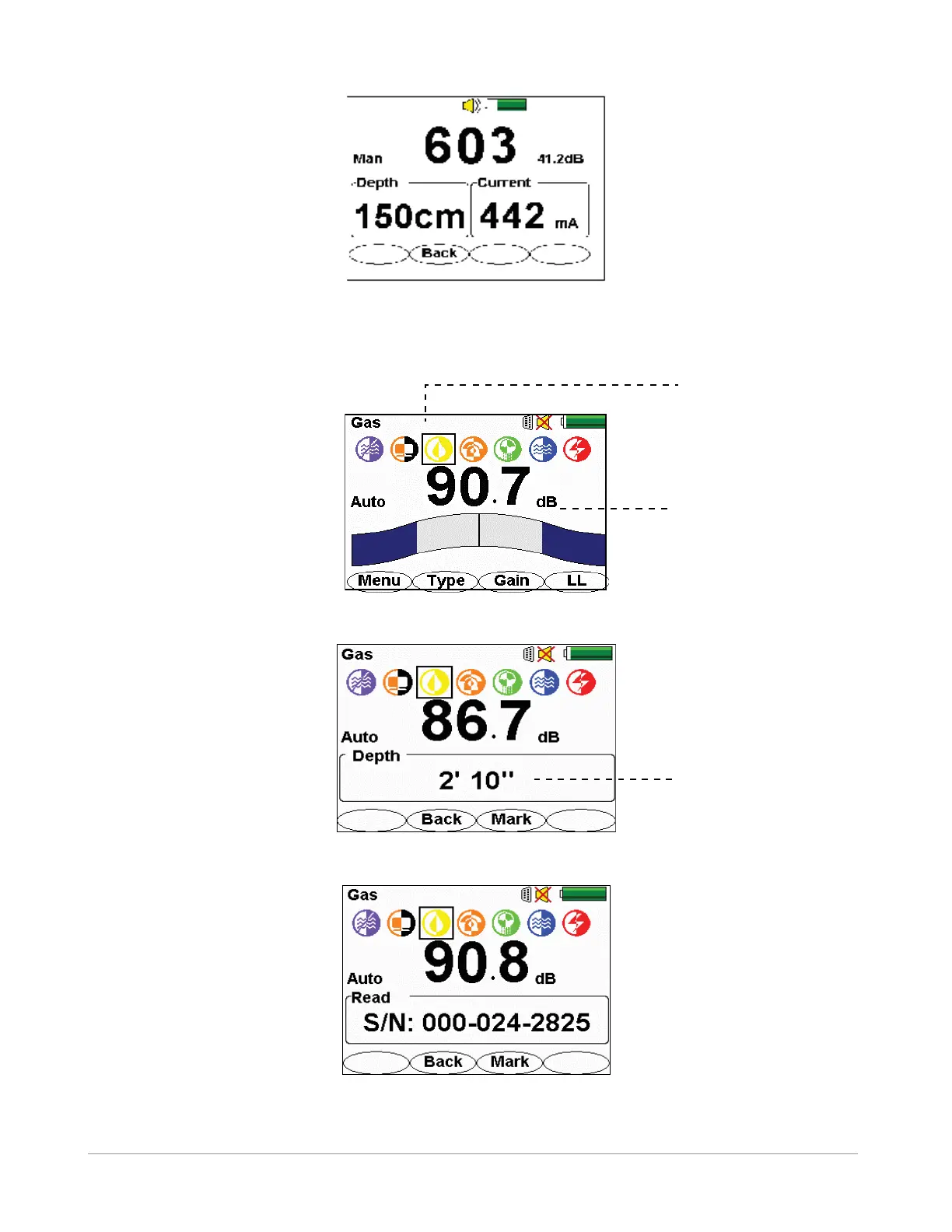

Figure 3-3 Measurement Interface
3.1.1.2 Operational Interface – Marker Locate Mode
The i5000 MetroMark receiver operational screen is a ¼ VGA bright color graphical display. Three screens are
displayed to the user – marker locate mode, measurement, and marker read.
Figure 3-4 Marker Locate Interface
Figure 3-5 Measurement Interface
Figure 3-6 Marker Read Interface
Active Marker
Numerical eld
Signal Strength
Estimated measured
depth
