Metrotech MetroMark i5000 Series User Manual

Metrotech Corp. | 7
Metrotech Copyright © 2008 Doc. No.: R12015
3
System overview
3.1 i5000™ MetroMark™ Receiver System Overview
The i5000 Utility Locating System brings the power and exibility of digital signal processing (DSP) to Metrotech’s
long line of sensitive and easy to use utility line locators. Two main interfaces are available to operate all the key
features of the receiver.

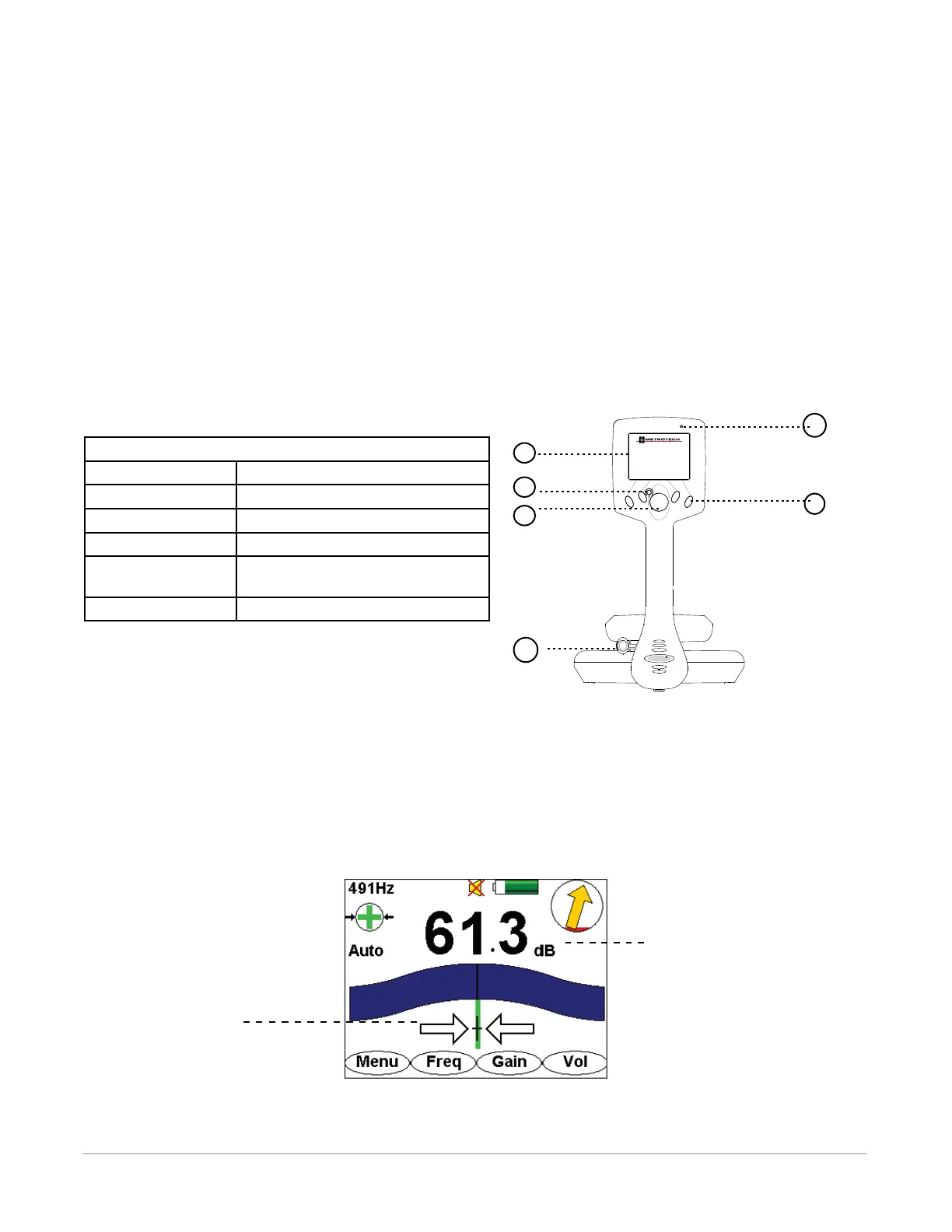

3.1.1 Top View
The i5000 receiver includes a colorful graphical display, a 4-way navigation button, and four soft keys for opera-
tion and setup modes. A separate Power ON button, located near the navigation button, provides easy access to
activate power. See gure below.
Top View Legend
a. GPS antenna (optional)
b. 4-way Navigation Button
c. Power ON Button
d. Operational Interface
e. Bluetooth® Transmission ON
Indicator
f. Soft Keys
Figure 3-1 i5000 Top View
3.1.1.1 Operational Interface – Line Locate Mode
The i5000 MetroMark receiver operational screen is a ¼ VGA bright color graphical display. Two screens are
displayed to the user – line locate mode and measurement.
Figure 3-2 Line Locate Mode Interface
¥ªªª
TM
™
¥ªªª
™
METROTECH Utility Locator
ISO 9001:2000 Certified
Version 1.701/1.621
Numerical Field
Signal Strength
Left/Right Null
Guidance
Arrows
f
e
b
a
d
c
