MICRO-EPSILON thermoMETER CTL Series - Page 31

Page 31

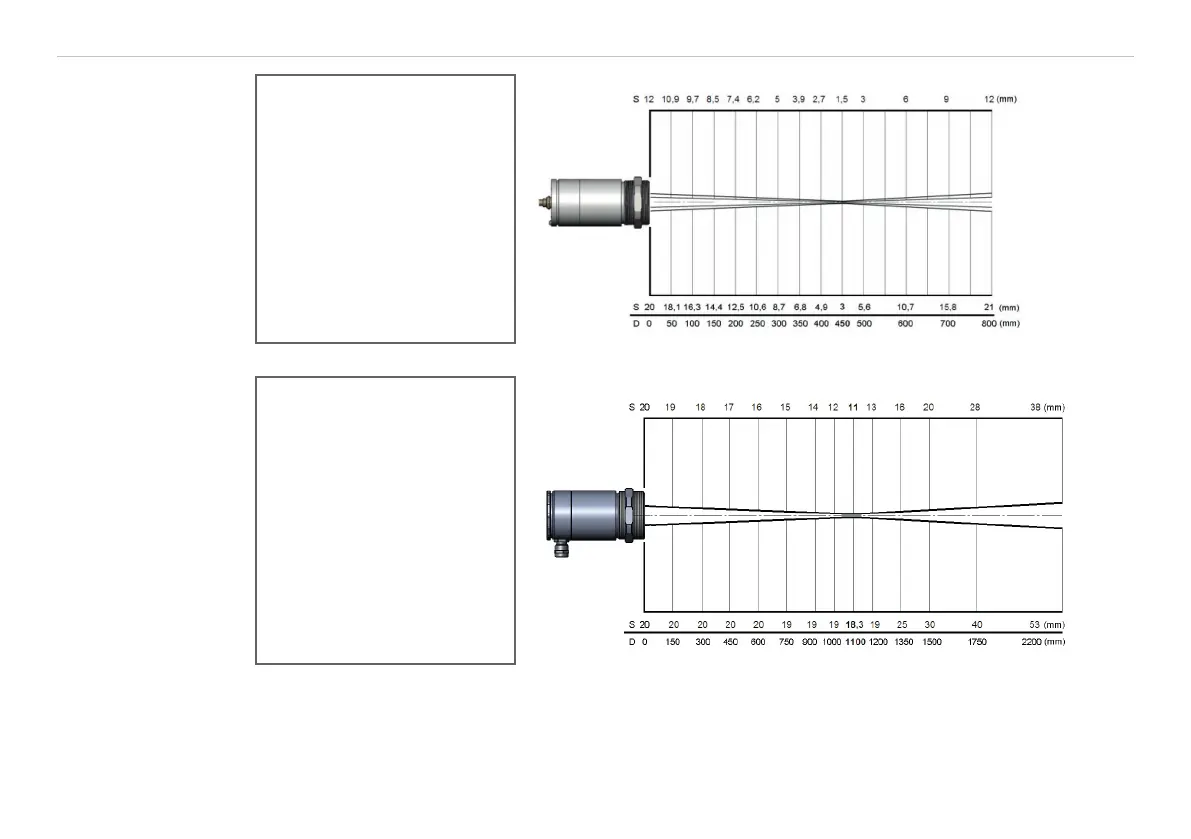

Optical Charts
thermoMETER CTL
M-1H/ M-1H1/ M-2H/ M-2H1/
M-3H1/ M-3H2/ M3-H3
Optics: CF4
D:S (Focus distance) = 300:1
1.5 mm @ 450 mm
D:S (Far field) = 22:1
M-1L/ M-2L
Optics: CF4
D:S (Focus distance) = 150:1
3 mm @ 450 mm
D:S (Far field) = 20:1
M-3H
Optics: SF
D:S (Focus distance) = 100:1
11 mm @ 1100 mm
D:S (Far field) = 4:1
M-3L
Optics: SF
D:S (Focus distance) = 60:1
18,3 mm @ 1100 mm
D:S (Far field) = 4:1
