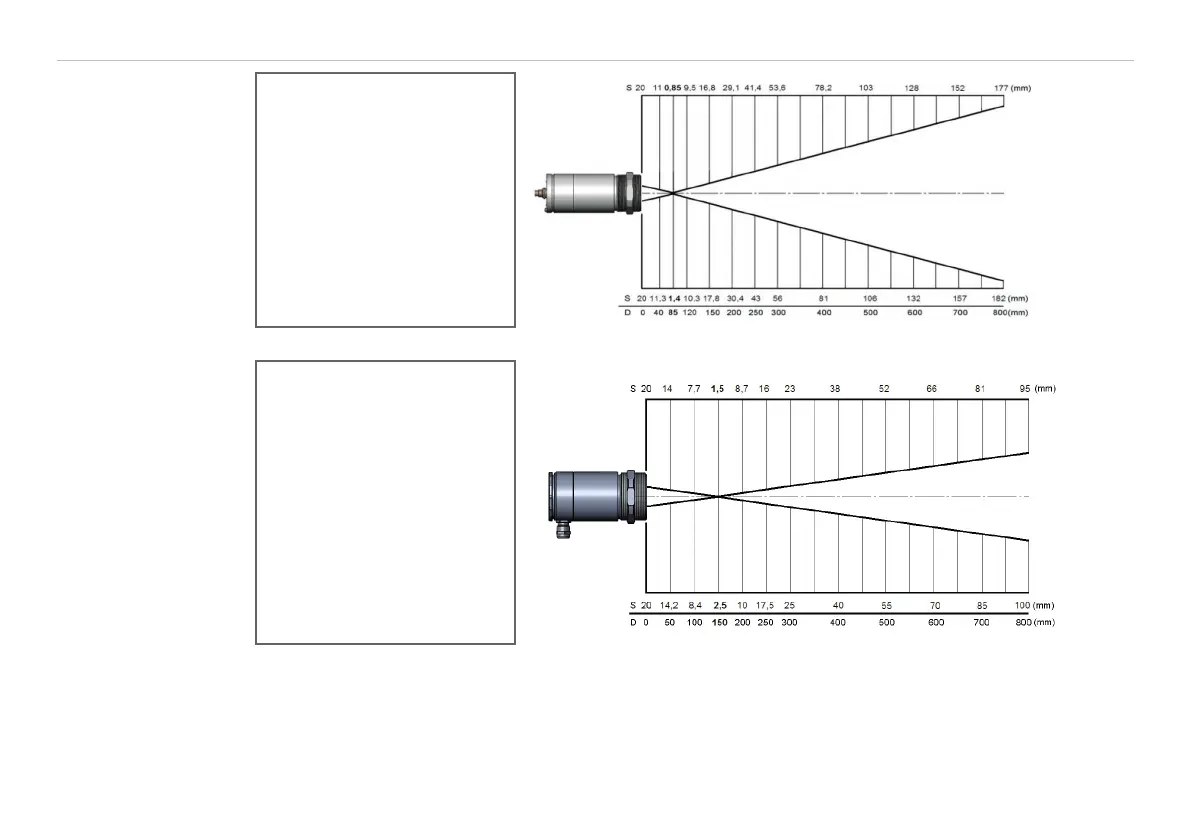

Optical Charts
thermoMETER CTL
M-3H
Optics: CF1
D:S (Focus distance) = 100:1
0,85 mm @ 85 mm
D:S (Far field) = 3:1
M-3L
Optics: CF1
D:S (Focus distance) = 60:1
1.4 mm @ 85 mm
D:S (Far field) = 3:1
M-3H
Optics: CF2
D:S (Focus distance) = 100:1
1.5 mm @ 150 mm
D:S (Far field) = 7:1
M-3L
Optics: CF2
D:S (Focus distance) = 60:1
2.5 mm @ 150 mm
D:S (Far field) = 6:1
