Microtest 6363 - Page 37

36
 HI: Set the maximum. The setting range is -999G - +999G.
 LO: Set the minimum. The setting range is -999G - +999G.
 DELAY: Set delay time. The setting range is 0-5000(mS).
 Multi-Step Mode Calibration Functions
After editing test items, please select “CAL” first to run OPEN/SHORT calibration and start
the test function.

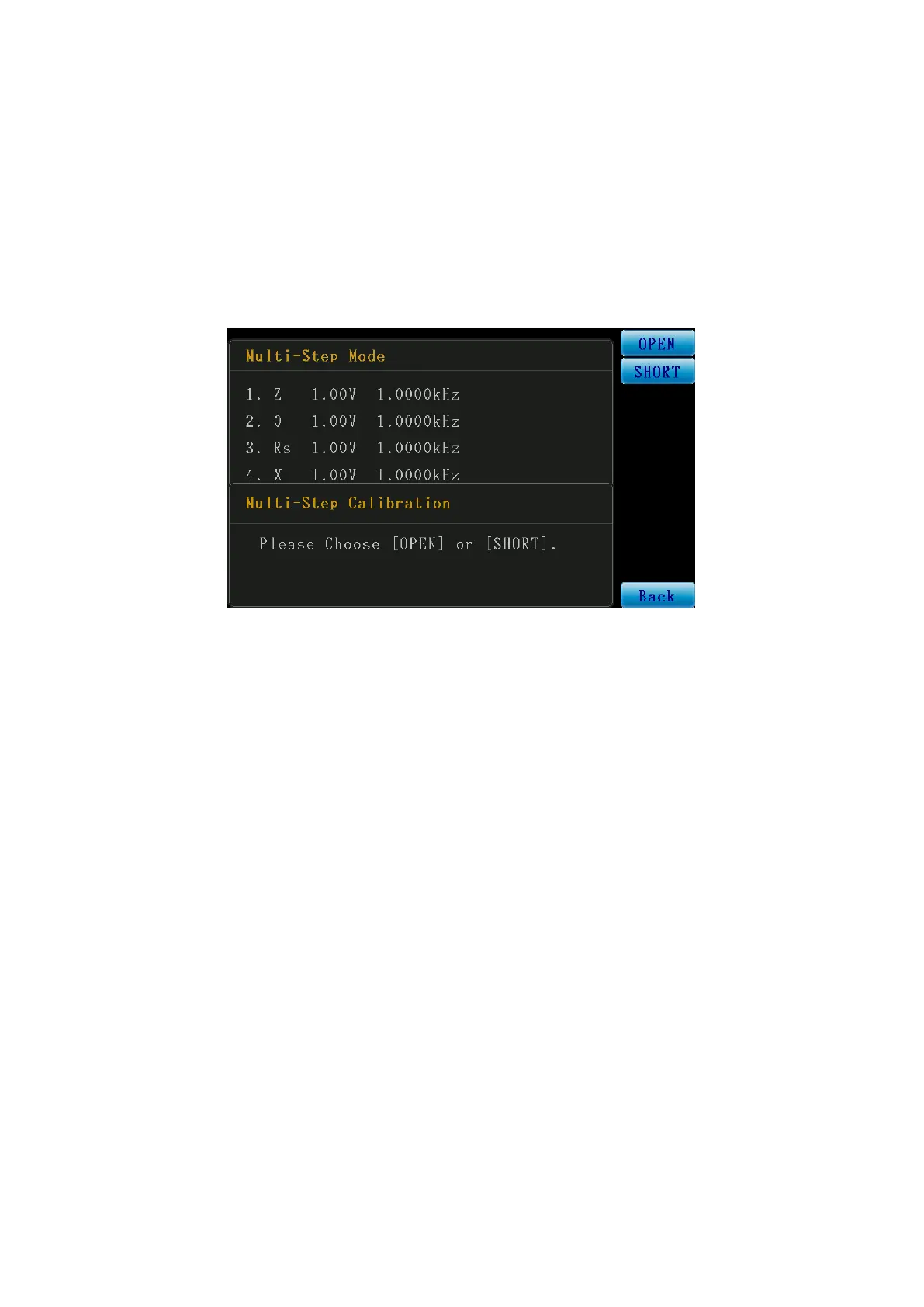

Figure 3-4-5 Multi-Step Mode Calibration Screen
 OPEN: Enable open circuit calibration.
 SHORT: Enable short circuit calibration.
