Chapter 4. Comprehensive Test mode
Test mode uses programmed design functions to perform simultaneous and automatic tests according to the
different test conditions set for different test items in order to satisfy different needs and achieve optimal
efficiency; it can be divided into:
● Test condition setting
● Comprehensive test implementation
● File management
Detailed descriptions are as follows:
4.1 Test Condition Setting
This part refers to the setting of some control standards and corresponding test conditions for the DUT,
including O/S / Cond / R / C / HIPOT / Diode settings; its contents mainly includes
● The test signals (frequency, voltage size and current etc.) of each test item (parameter)
● Control standard, specification control standard value, error ratio.
4.1.1 Test Condition Setting Short Circuit Table (OPEN/SHORT)
(1) Press [O/S].

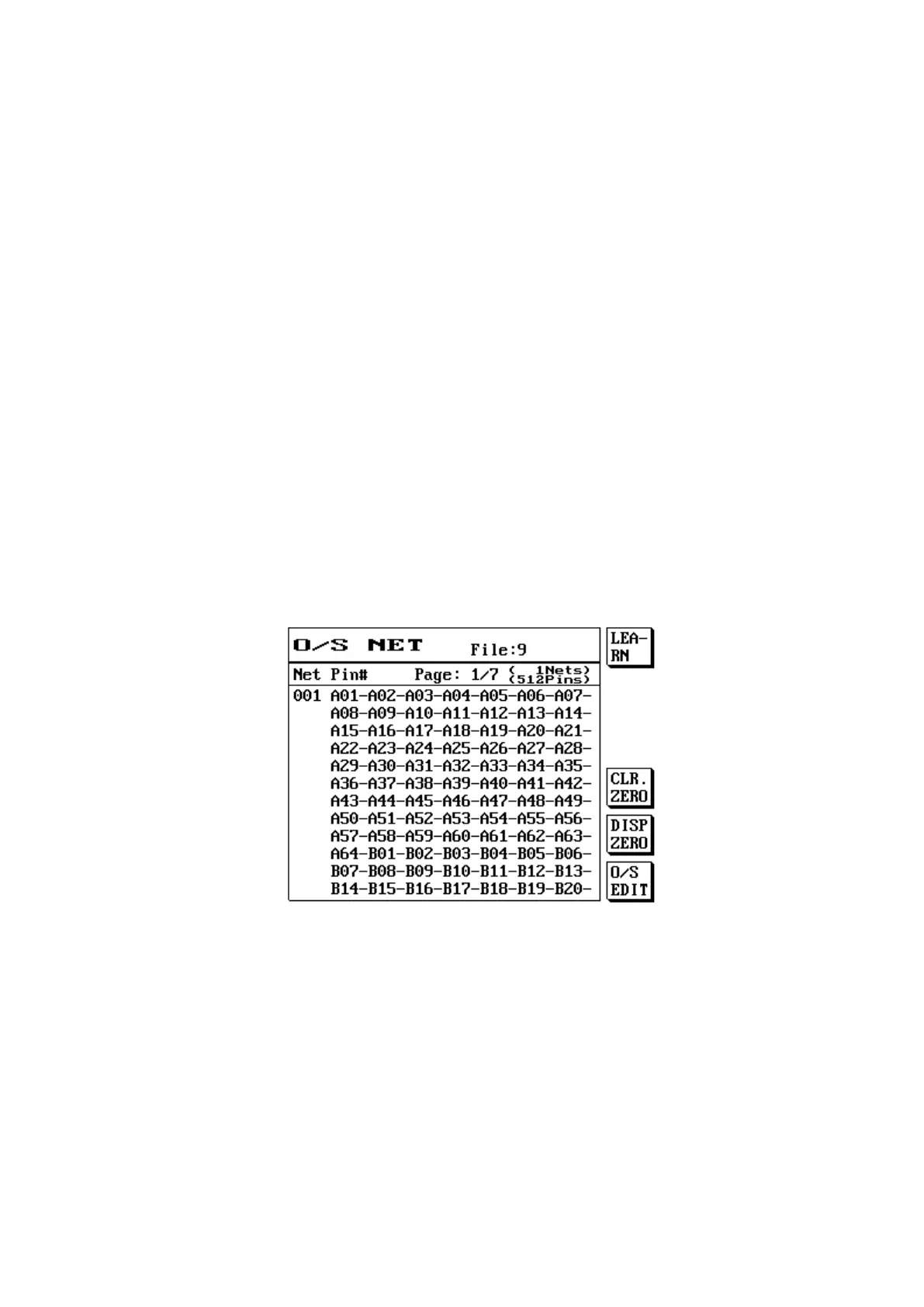

(2) The LCD screen will display as follows:
The short circuit table comes from learning.
(3) Press [Exit] to exit when completed.
