Microtest 8740 - Item Test Mode Setup

44

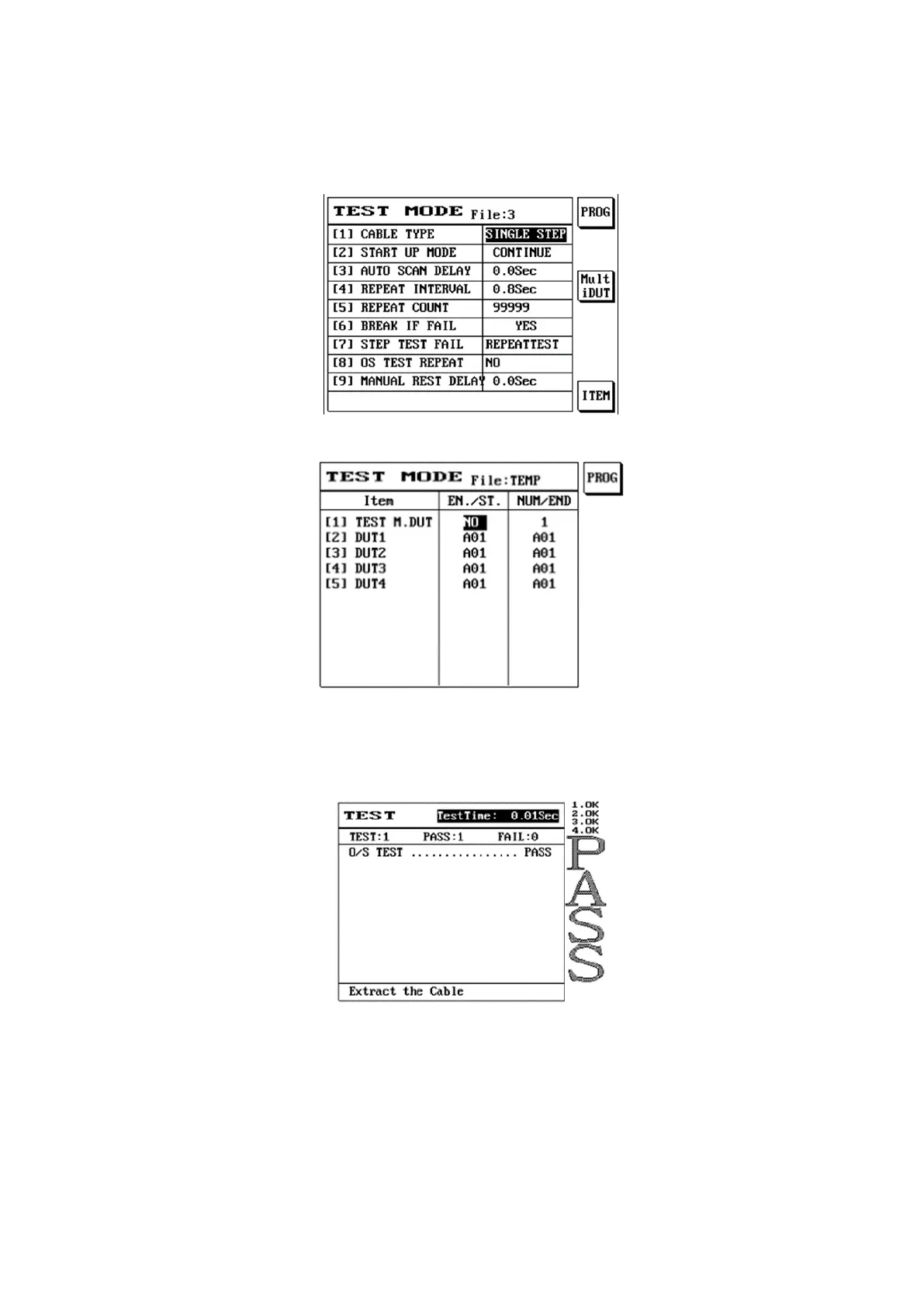

3.7.1 MultDut
First learn the DUT pin; press mode setting.
Select MULTIDUT
The selection is, set the start and end of the DUT according to the pin learned; a maximum of 4 tests can
be selected and the start and end pins of the DUT can be set. (P.S There must be no other DUT at the start
and end of the DUT.)
Press “TEST” when setting is completed.
