DL431 Mic Splitter
Operator Manual
Chapter 3: Front Panel

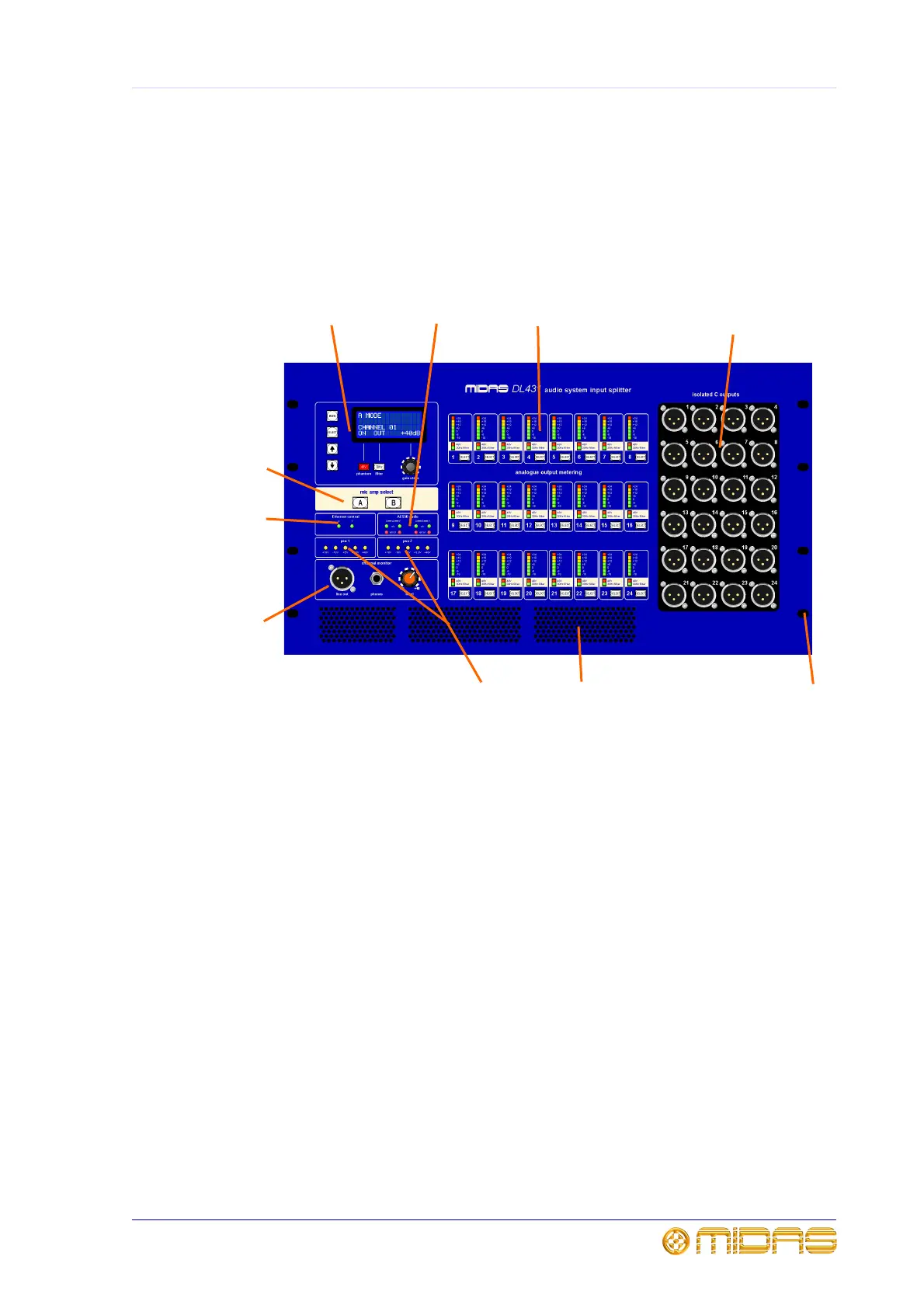

The front panel comprises the following:
1 3
4
5
67
8
9
10
2
1 Control panel contains LCD panel and
four navigation pushbuttons for setting up unit.
There are also 48V phantom and 30Hz filter
pushbuttons and a gain steps control knob;
see page 28.
2 AES50 audio panel monitors; see
page 29.
3 analogue output metering panel
monitors analogue output signals. It has 24
subsections, with each one containing an LED
meter, a SELECT button and 48V and 30Hz
filter LEDs for on/off status indication. See
page 31.
4 isolated C outputs panel contains 24
XLR sockets; see page 31.
5 Cut-outs for rack mounting fixings.
6 Ventilation panels. Do not obstruct.
7 Power supply unit monitoring panels
psu 1 and psu 2; see page 29.
8 channel monitor panel; see page 30.
9 Ethernet control panel; see page 29.
10 mic amp select panel; see page 28.
