Midas DL431 - Analogue Output Metering Section; Isolated C Outputs Section

analogue output metering section 31
DL431 Mic Splitter
Operator Manual

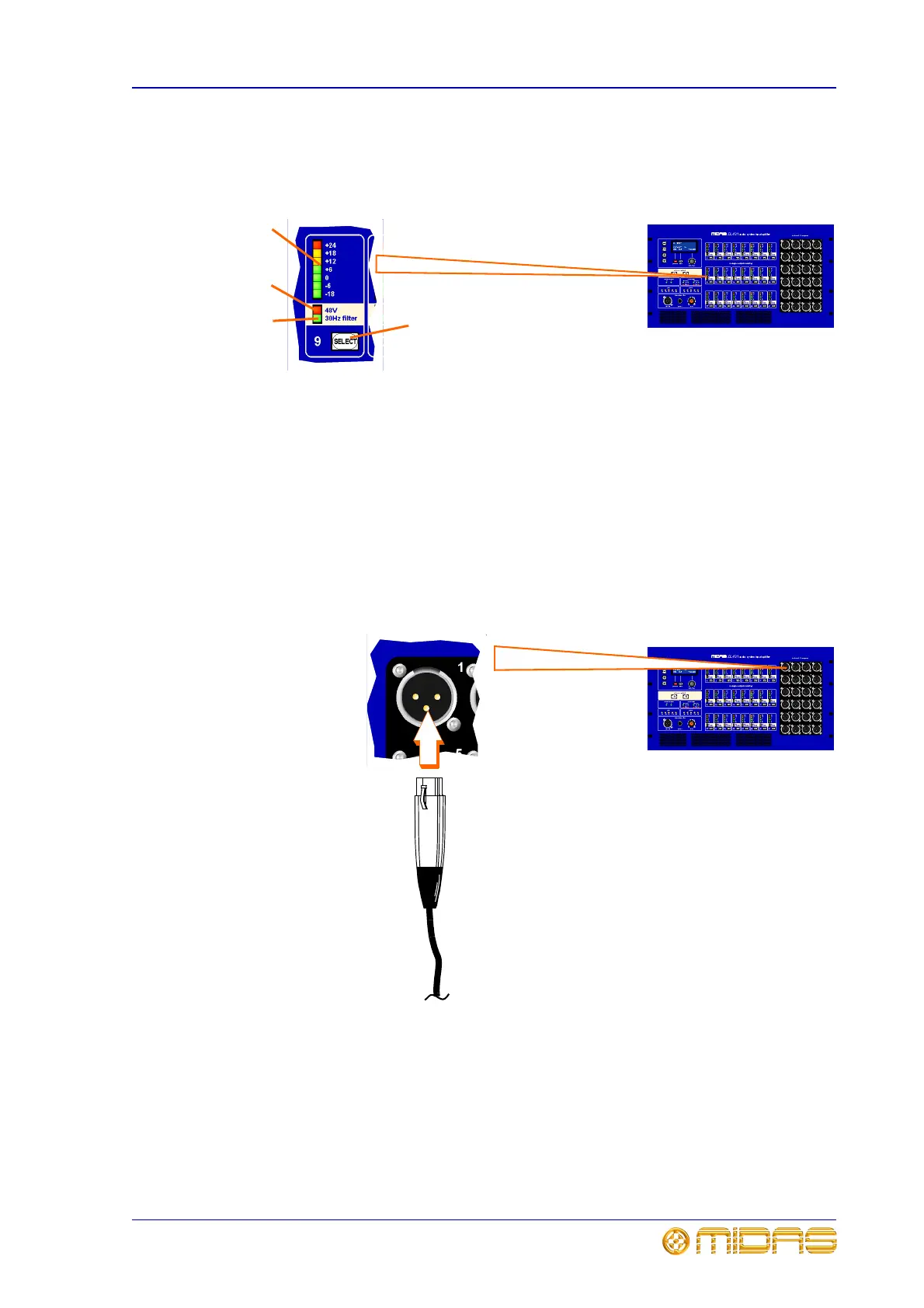

analogue output metering section
The analogue output metering section has 24 panels each of which monitors a
specific analogue output channel.
isolated C outputs section
This section contains 24 isolated output sockets for connection of female XLR
connectors, typically used for broadcast feeds.
1
2
3
4
1 SELECT switch for selecting the channel;
illuminates green to show when channel is
selected.
2 48V phantom voltage on/off LED
indicator; illuminates red to show that it is on
for that channel.
3 30Hz filter on/off LED indicator;
illuminates green to show that it is on for that
channel.
4 Seven-segment LED meter displays the
output level in the range -18dB to +24dB in
steps of 6dB.
x24
