DL431 Mic Splitter
Operator Manual
Chapter 4: Rear Panel

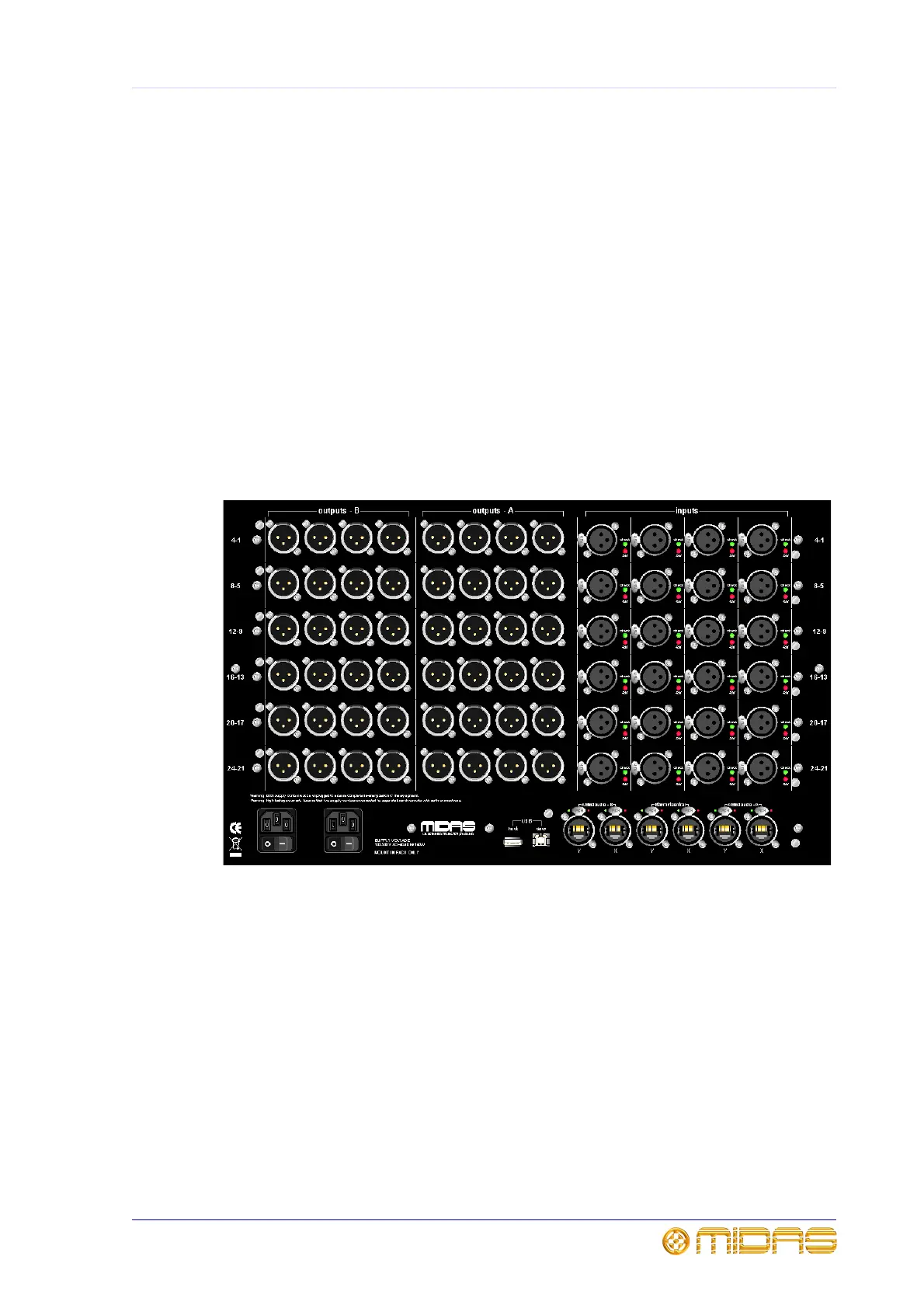

The rear panel comprises the following:
• Two banks of 24 output (A and B) XLR connectors (female).
• Bank of input XLR connectors (male).
• Two sets of mains IEC sockets and on/off switches (one set is for dual redundancy).
• Two USB connectors (host and slave).
• Three pairs of Ethercon XLR connectors:
• One pair of connectors for ‘tunnelling Ethernet’.
• Two pairs of connectors (AES50 A and B) for audio and control data to/from
router.
