Midas DL431 - Rear Panel Connections

34 Chapter 4: Rear Panel
DL431 Mic Splitter
Operator Manual

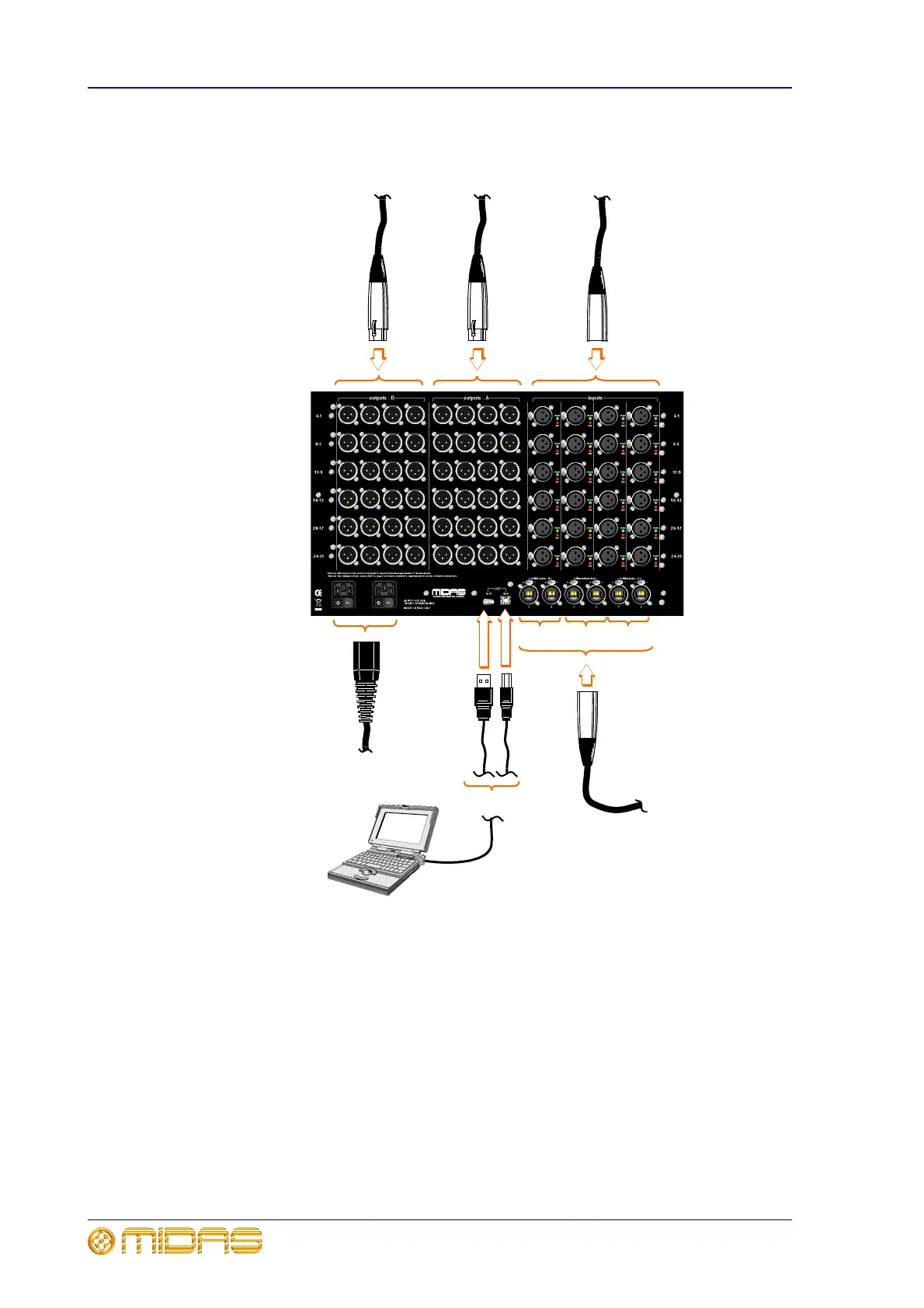

Rear panel connections
Laptop PC
1
2
3
454
outputs - B
(1 - 24)
outputs - A
(1 - 24)
inputs
(1 - 24)
Mains IEC
connector
6
1 outputs B section contains 24 sockets (6
x 4) for connection of XLR female connectors.
Each row is numbered right to left in ascending
order. Rows are in ascending order from top
down.
2 outputs A section contains 24 sockets (6
x 4) for connection of XLR female connectors.
Each row is numbered right to left in ascending
order. Rows are in ascending order from top
down.
3 inputs section contains 24 sockets (6 x
4) for connection of XLR female connectors.
Each row is numbered right to left in ascending
order. Rows are in ascending order from top
down.
4 Y and X AES50 audio - A and B Ethercon
XLRs for passing audio and control data
to/from router. See page 35 for description of
LEDs.
5 Y and X Ethernet control Ethercon XLRs
for connection of ‘tunnelling’ Ethernet. See
page 35 for description of LEDs.
6 USB slave (type B) and host (type A)
sockets for connection of a laptop PC.
7 Two mains IEC sockets with on/off
switches. Although both are connected to the
mains, one is a dual redundant spare that can
automatically switch in if the other fails.
7
