30 Chapter 3: Front Panel
DL431 Mic Splitter
Operator Manual

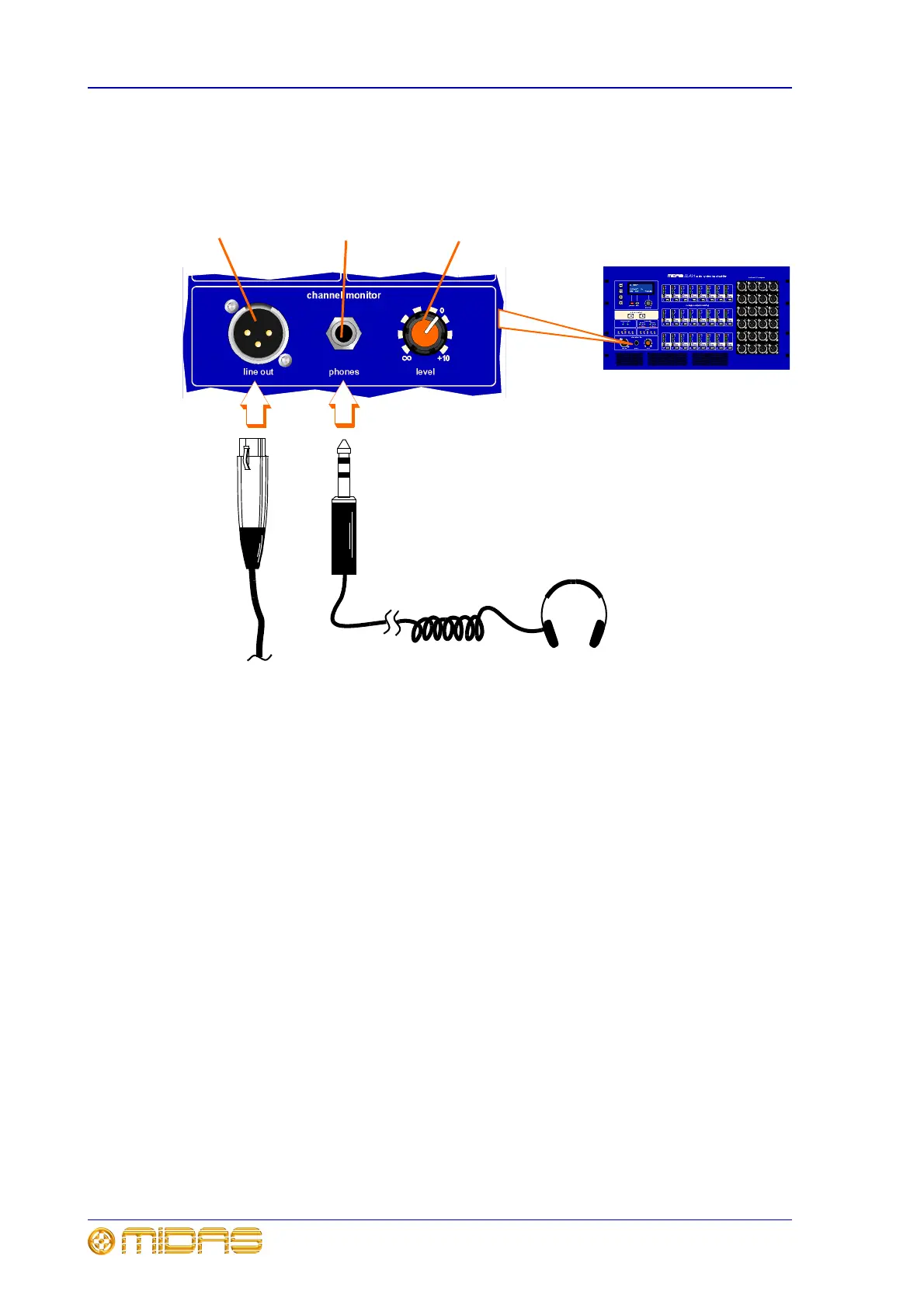

channel monitor panel
The channel monitor panel allows you to connect headphones and listen to the audio
from any selected input channel.
1 2
3
Headphones
1 Female XLR line out socket. This monitor
line output operates at unity gain in relation to
any input signal applied and has a nominal
operating level of 0dBu. (Unlike the
headphone jack this output does not have an
independent level control.)
2 phones socket for connection of a set of
headphones.
3 level control knob for adjustment of the
headphones in the range 4 (infinity) to +10dB.
