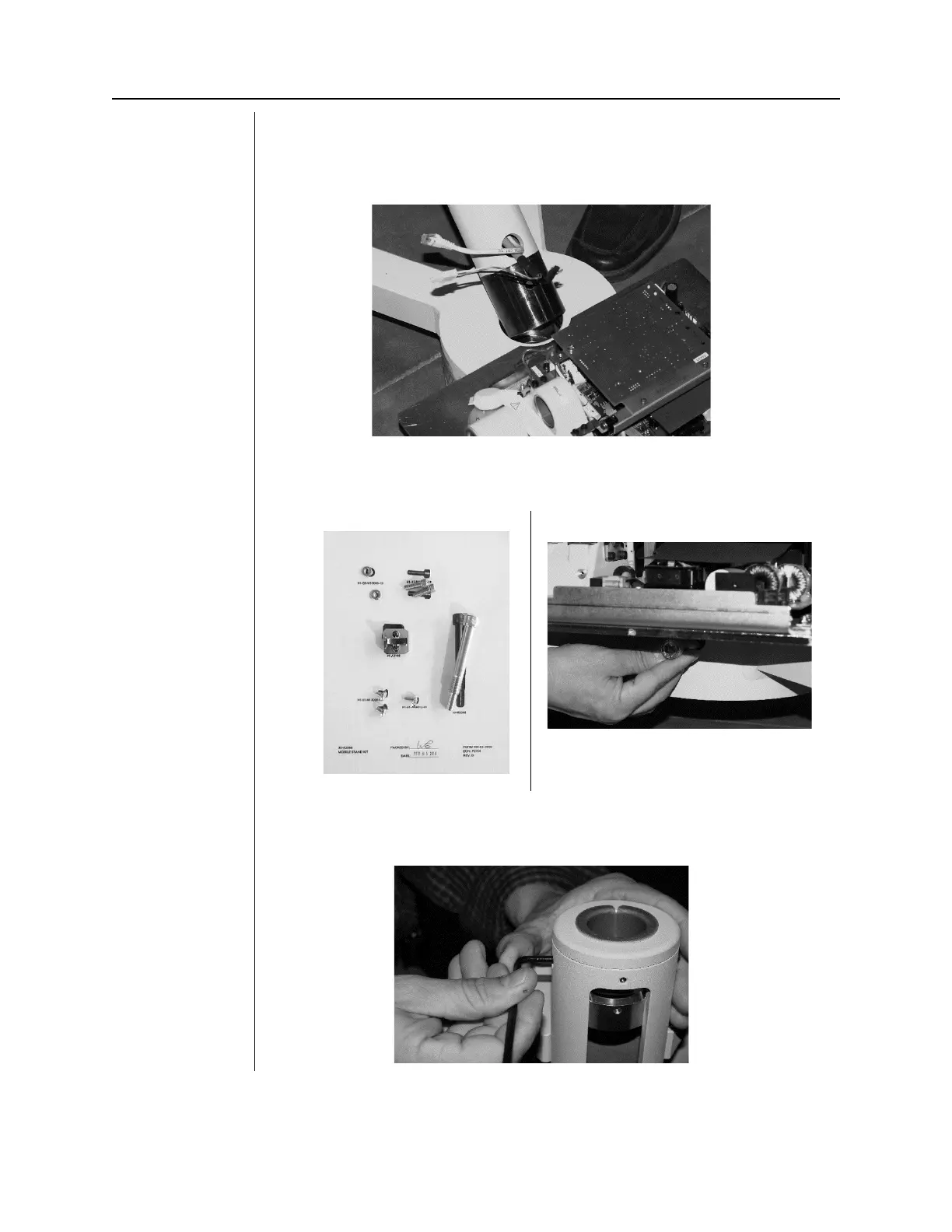

7. Locate the mobile unit post (located in the top layer of parts removed in
step 3) and insert into the mobile base as shown.
NOTE: Take care not to pinch the Cat 5 cable or the tubehead
connectors.
8. In the “Kit, Mobile Stand” package (Part #30-A2098). Locate and insert
the bolt used to secure the post to the mobile base. (Requires 10mm
hex key.)
9. Back out the Allen bolts used to secure the articulated arm to the post.
(QTY 2). This allows the articulating arm to be inserted completely into
post.
