VetPro DC Installation/Service Manual, 00-02-1606, Revision R01
69

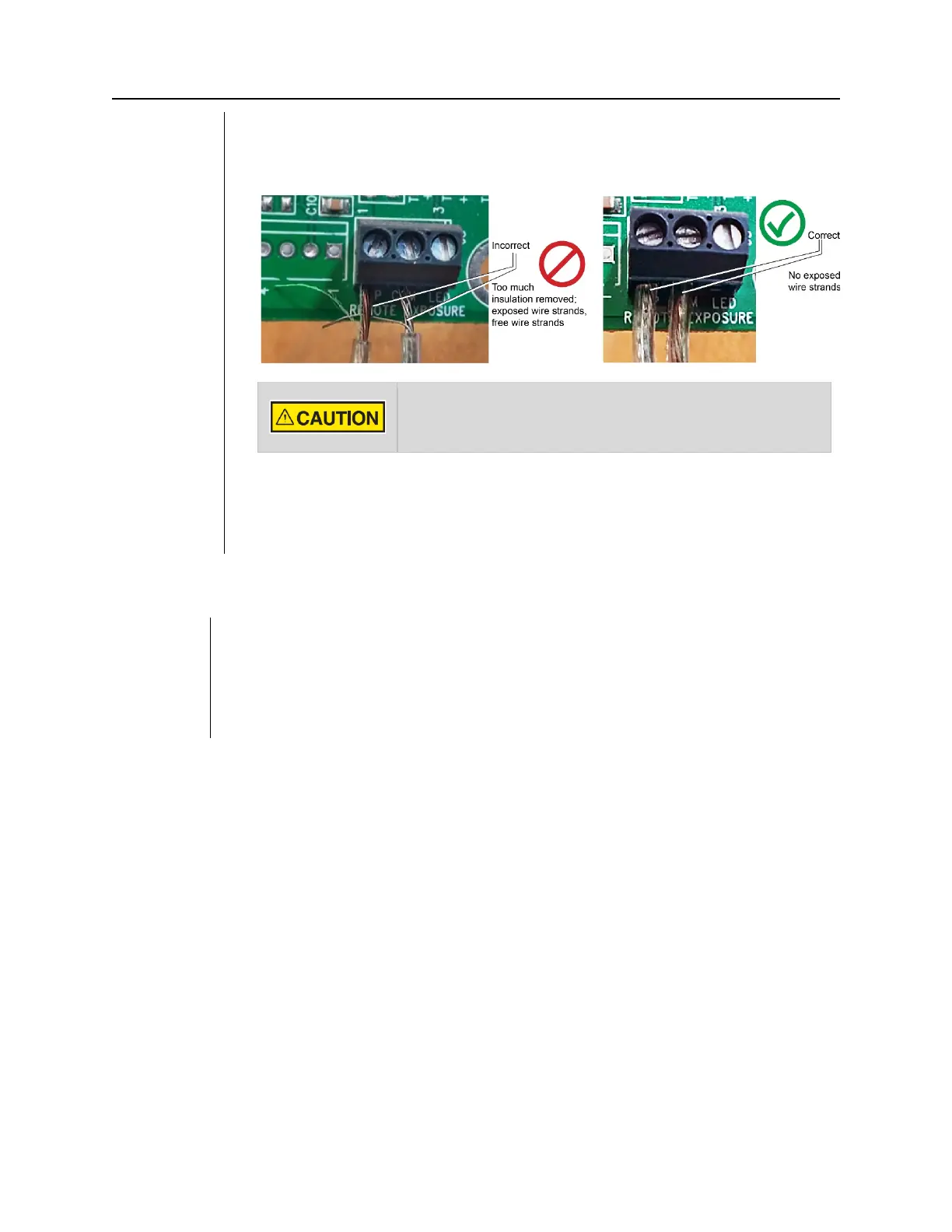

Figure 53
Correctly
connecting
wires to the
terminal
block
4. Use a small flat-head screwdriver to connect the remote exposure switch wires to
the “EXP” and “COM” terminals of terminal block J2. There must be no exposed
wire strands outside the terminal block (as shown the photograph on the right).
It is critical that the exposure switch wires be connected to the
terminal block with no exposed strands of wire. Exposed wires can
short circuit and cause unintended exposure to radiation.
5. Swing the logic board closed and secure it with the locking screw
6. Replace the control unit cover.
7. Follow the manufacturer’s directions to connect the two-way switch to the other
ends of the wires.
Installing the 12 Inch [30 CM] Cone (30-A2200)
The VetPro DC Animal Health Dental X-ray System is factory set for use with the
standard supplied 8 inch (20 cm) Cone. The 12 inch (30 cm) Cone (30-A2200) is
recommended when using parallel film positioning techniques. Using the longer cone
requires longer exposure times. See the System Configuration section of this manual on
page 66 or setting the system to use the longer cone.
