VetPro DC Installation/Service Manual, 00-02-1606, Revision R01
68
Installing a Generic Two-Wire Remote Exposure Switch

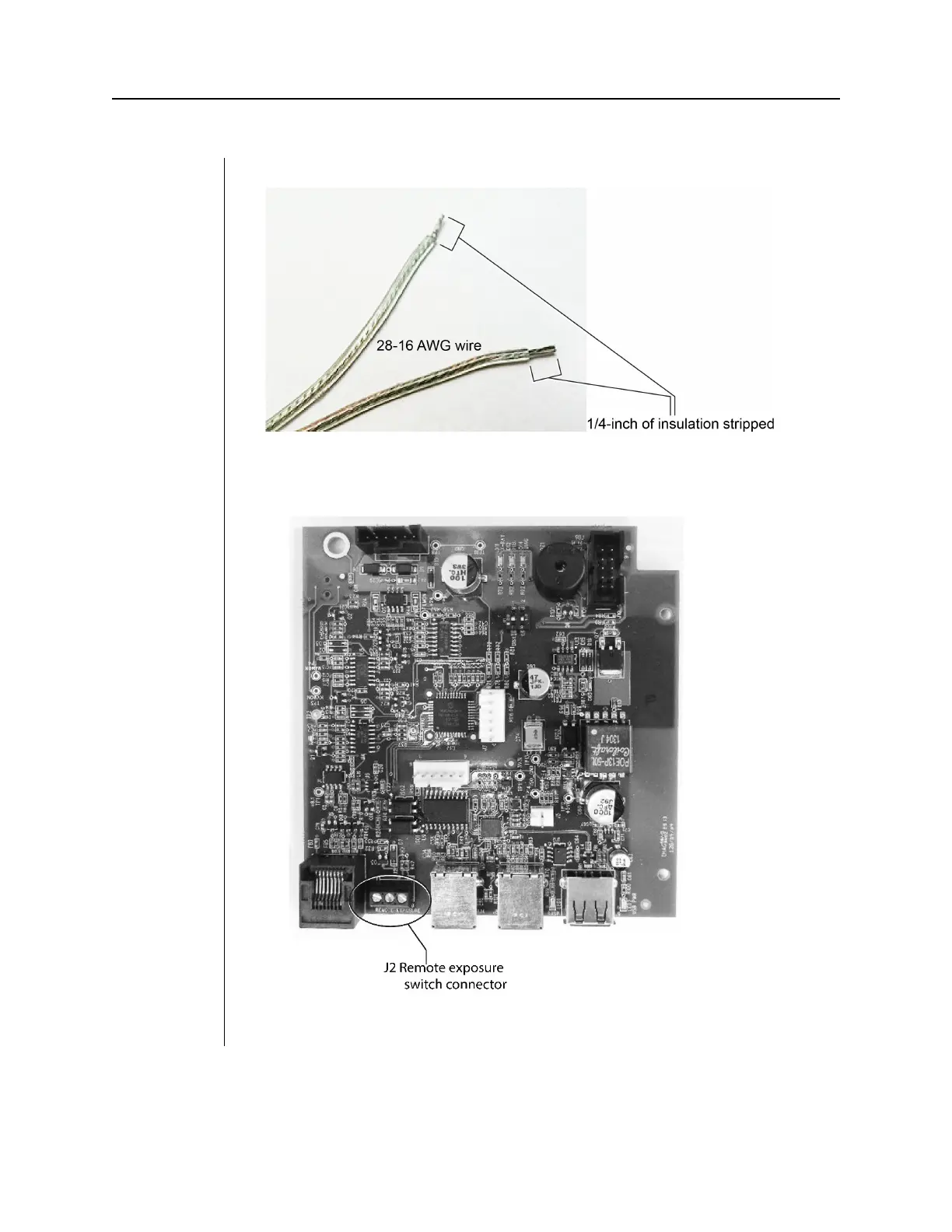

Figure 51
Stripping
insulation
from the
wires
1. Strip ¼-inch of insulation from two 28-16 AWG wires.
2. Remove the control unit cover and the logic board locking screw.
3. Swing open the logic board and locate terminal block J2 on the power supply
control board (30-08160), as shown in Figure 52.
Figure 52
Installing the
remote
exposure
switch
