Connecting the Cables
Connecting
the
Articulating
and
Horizontal
Arm Cables
1. Connect the two Articulating Arm cables to the Horizontal Arm cables, as shown
in Figure 26 and Figure 27.
2. Once the connections are made, dress the cables and push them into the opening
in the Horizontal Arm.

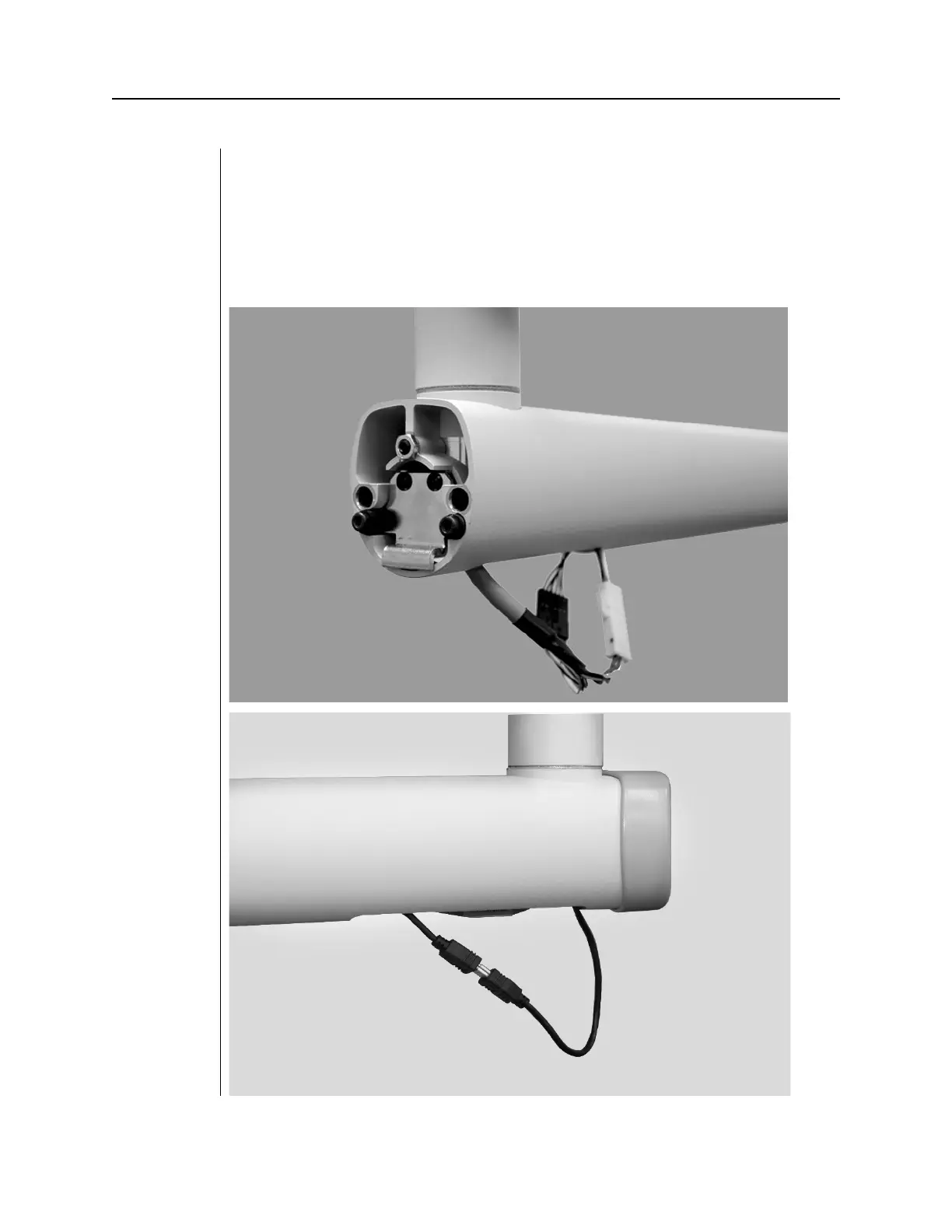

Figure 27
Connecting
the
Articulating
Arm and
Horizontal
Arm Cables
Figure 28
Connecting
optional
Integrated
Sensor Cable
