Installing the Articulating Arm and Tubehead Assembly
Install the
Articulating Arm
and Tubehead
Assembly
The Tubehead and Articulating Arm are installed as a single unit.
1. Remove the top level packing material from the shipping carton to gain
access to the Articulating Arm and Tubehead Assembly.
Do not remove
the cardboard tube enclosing the cable wires but remove the red tag.
2. Remove the Articulating Arm and Tubehead Assembly from the shipping
carton.
Note:
Do not lubricate the shaft of the Articulating Arm or the bearings in
the Control Unit.
3. Position the Articulating Arm above the Horizontal Arm.
4. Carefully route the cardboard tube with the arm cable plug through the
opening in the Horizontal Arm.
5. Insert the shaft of the Articulating Arm into the opening in the Horizontal
Arm, as shown in
Figure 23 .
6. Press down until the shaft is completely seated in the Horizontal Arm.
7. Remove the cardboard tube to free the wires. Discard the cardboard tube.
8. Untie the Articulating Arm and remove the plastic covering.
Do not remove the tie holding the articulating arm
closed. Removing the tie will cause the articulating arm
to spring open, potentially causing personal injury.

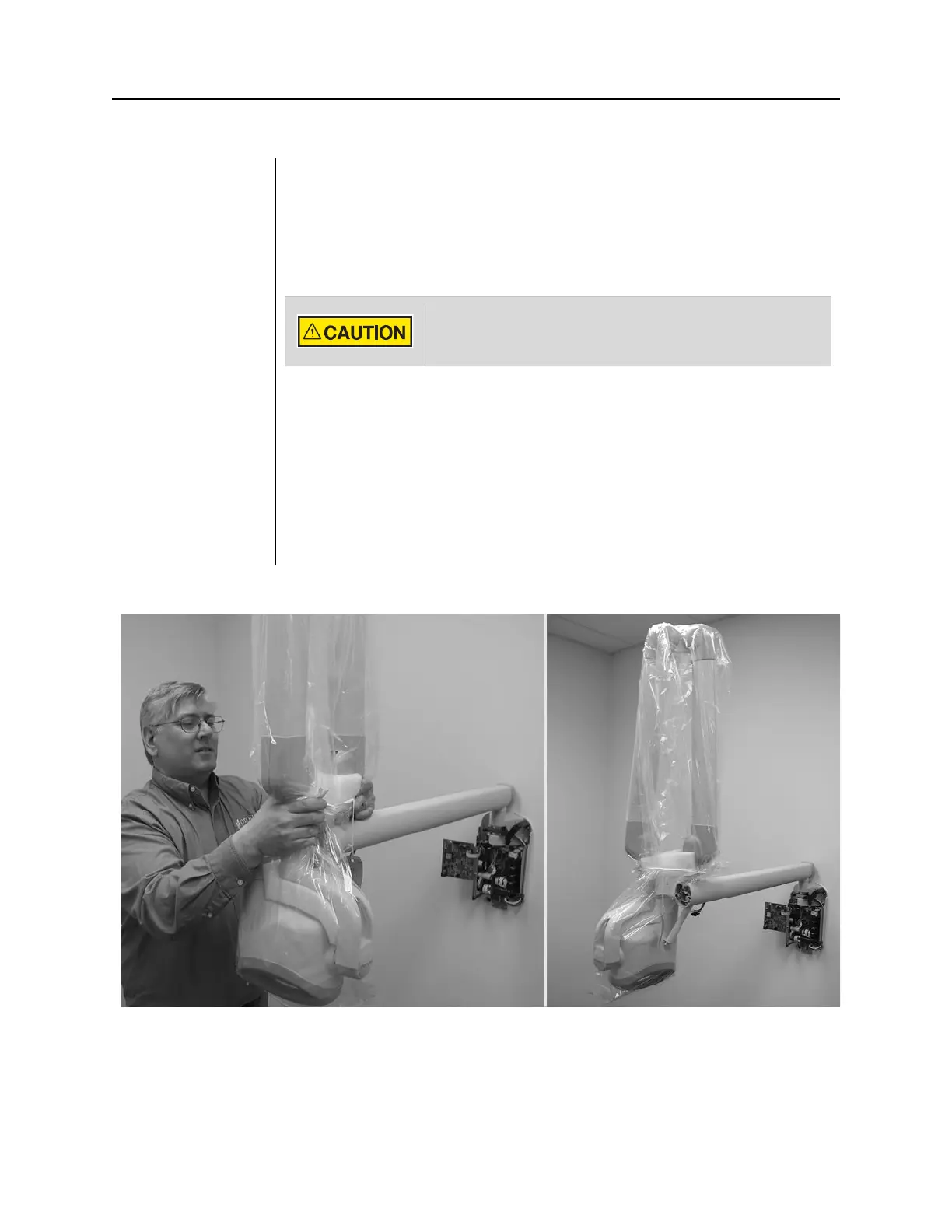

Figure 24 Installing the Articulating Arm and Tubehead Assembly
