Installation Options
Template

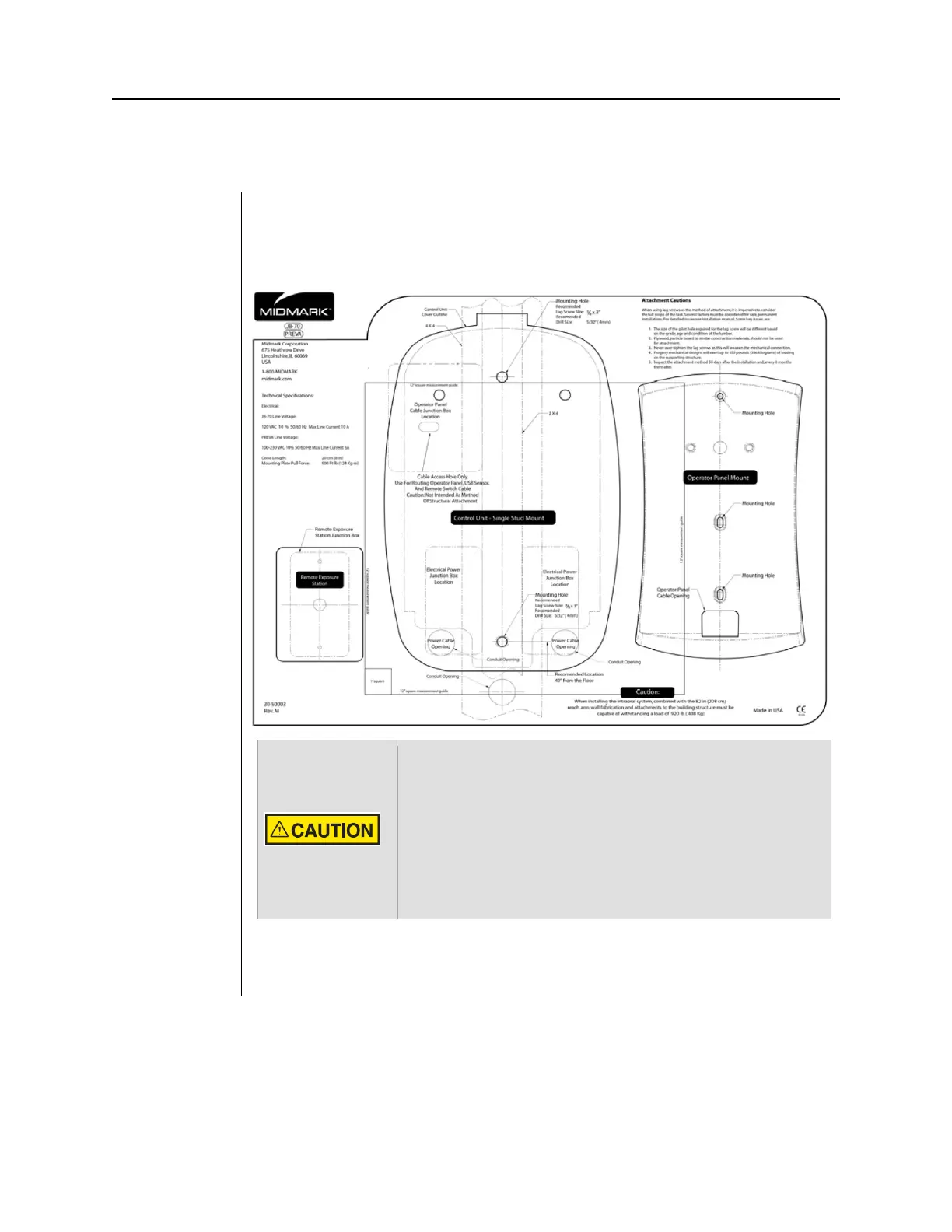

This section gives instructions for installing the VetPro DC Animal Health Dental X-
ray System in three mounting configurations. Use the mounting template, shown in
Figure 8, to guide single stud installations. Reverse the template for dual-stud
Figure 8
Mounting
Template
• When installing the intraoral system, combined with the
208 cm (82 in.) reach arm, wall fabrication and
attachments to the building structure must be capable of
withstanding a load moment of 127 kg-m (920 lb-ft).
• Do not use lag screws as an attachment method for metal
supports such as those found in center island pass-
through cabinets. Midmark provides machine screws,
large flat washers, and nylock nuts for fastening the
system to metal supports.
