Midmark VetPro - Mounting Configurations; Installing the 4 x4 Mount

VetPro DC Installation/Service Manual, 00-02-1606, Revision R01
19
Single Wood
Stud Wall,
Solid Wall,
or
Reinforced
Wood
Cabinet
The Control Unit should be located at a height of 39 inches (99 cm) from the floor
to the bottom of the control, mounted on the wood stud, as shown in Figure 9. The
large range of travel of the Articulating Arm provides some flexibility in the vertical
position. Two mounting holes are provided. Refer to the supplied mounting
template, shown in Figure 8, for specific locations.
In order to mount to a solid, masonry type wall, the same mounting holes and
mounting template as the single wood wall stud are used. The installer must supply
appropriate fasteners.
The power supply 2x4 junction box should be mounted to the left of the mounting
stud at the appropriate height, as indicated in the mounting template.
Note:
A 4x4 junction box will not be covered by the Control Unit. Refer to the
supplied mounting template for specific location.

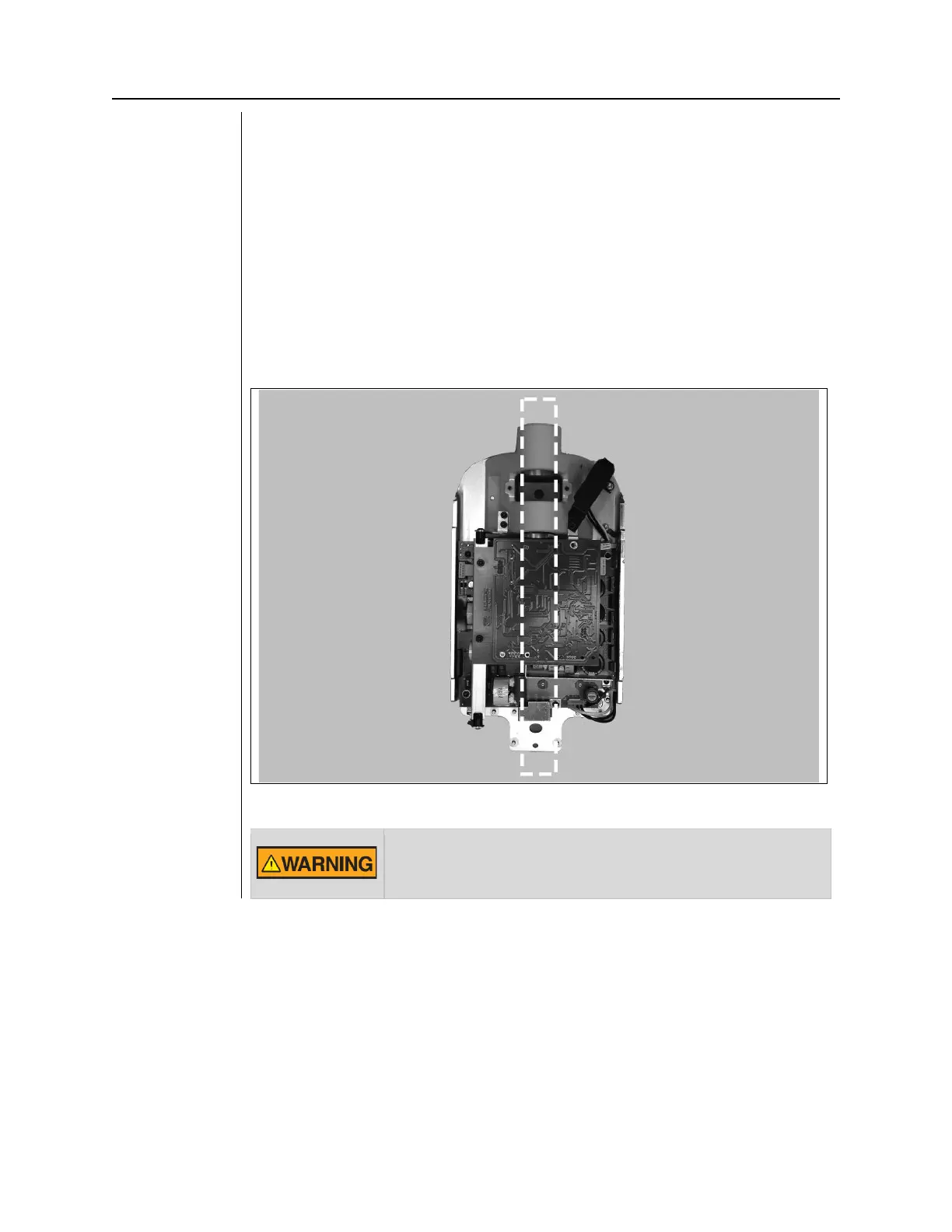

Figure 9
Wood Wall
Stud Mount
Do not attach the 208 cm (82 in.) reach system to a wall in the single
stud configuration. Contact Midmark Technical Support for
guidance.
