VetPro DC Installation/Service Manual, 00-02-1606, Revision R01
20
Stud Wall
When installing the VetPro DC Animal Health Dental X-ray System on two 16-inch
[40 cm] centered wood studs, the Control Unit is mounted to a wall plate (Two Stud
Mounting Kit 30-A2042), which mounts to the wood studs, as shown in
Figure 10.
Fasteners are provided with the wall plate.
In mounting configurations using the dual stud wall plate, there are several holes
available for incoming line power. This is to provide for various locations of existing
power boxes when installing as a replacement unit. Refer to the reverse side of the
mounting template, Figure 8, for hole locations.

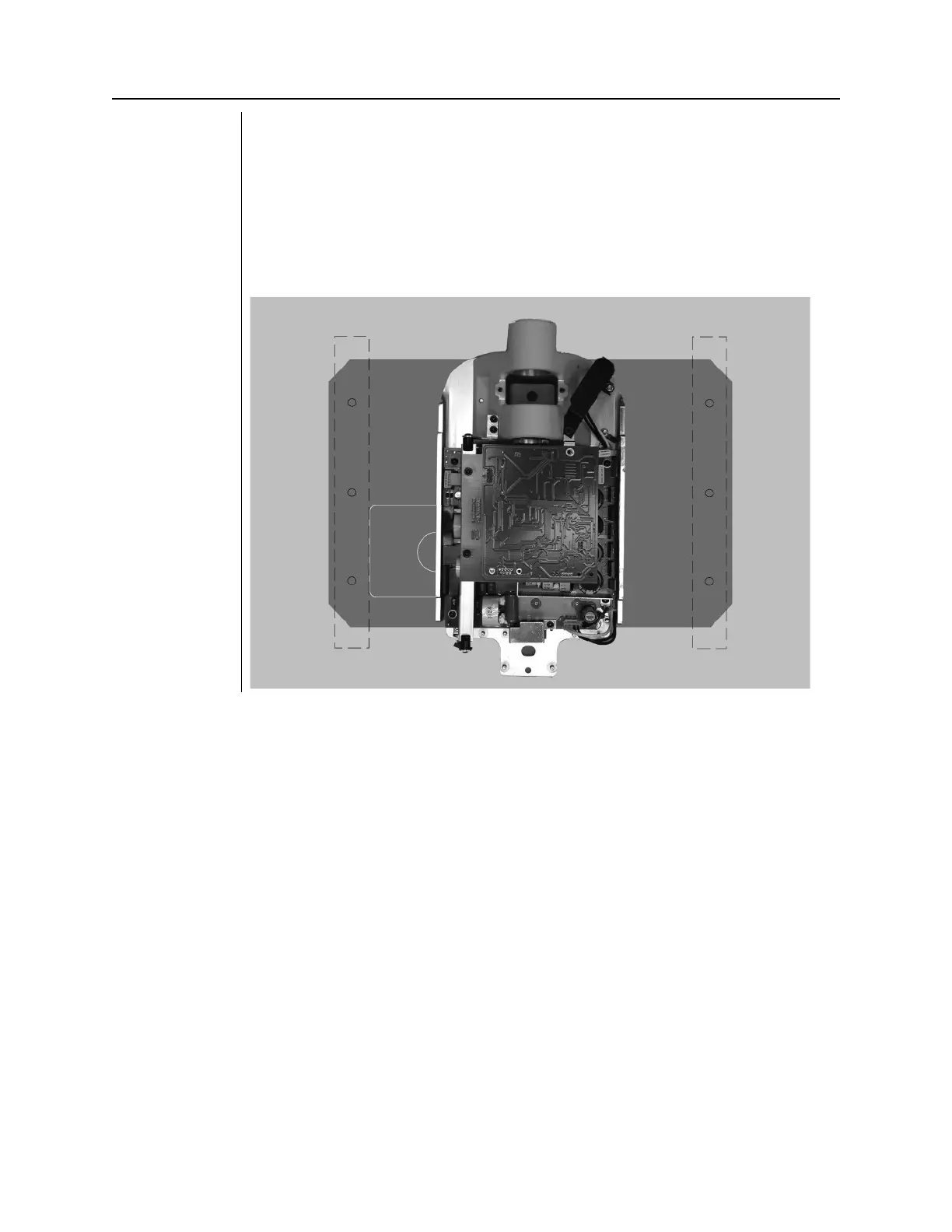

Figure 10
Dual Wood
Stud Mount
