VetPro DC Installation/Service Manual, 00-02-1606, Revision R01
21
Wall
When installing the VetPro DC Animal Health Dental X-ray System on a metal stud
wall, the Control Unit is mounted to a wall plate (Two Stud Mounting Kit 30-A2042)
and uses an additional support plate (Metal Stud Support Plate Kit 30-A2043,
purchased as an option) positioned on the back end of the wall. See
Figure 11.
Fasteners are provided with the wall plate and support plate. The wall fabrication
and attachments to the building structure must be capable of withstanding a load
moment of 118 m-kg (850 lb-ft). If the wall on which the VetPro DC is to be installed
does not meet this requirement, it must be reinforced.
In mounting configurations using the dual stud wall plate, there are several holes
available for incoming line power. This is to provide for various locations of existing
power boxes when installing as a replacement unit. Refer to the mounting template
in Figure 8 for hole locations.

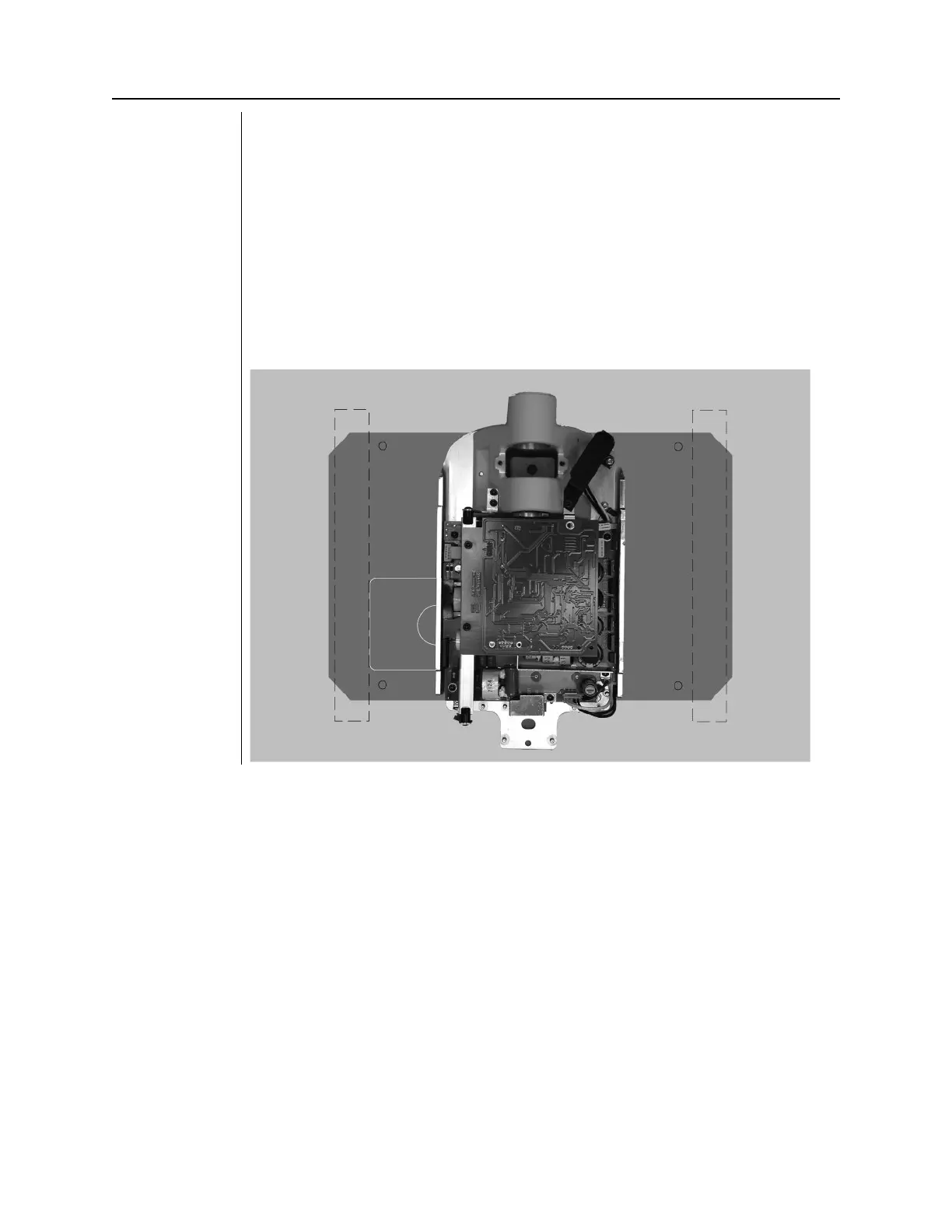

Figure 11
Metal Stud
Mount
