4x4 Mount
The 4x4 Mount kit (30-A2099), shown in Figure 12, contains the items below:
• Power line bracket
• Power cord cover
• Left conduit mounting plate
• Right conduit mounting plate
• 3 Phillips screws
1. Using the three Phillips screws, secure the power line bracket to the power line
cord cover.
2. Place the right and left conduit mounting plates on the control.
3. Place the assembled power line bracket and cord cover on the two bottom-most

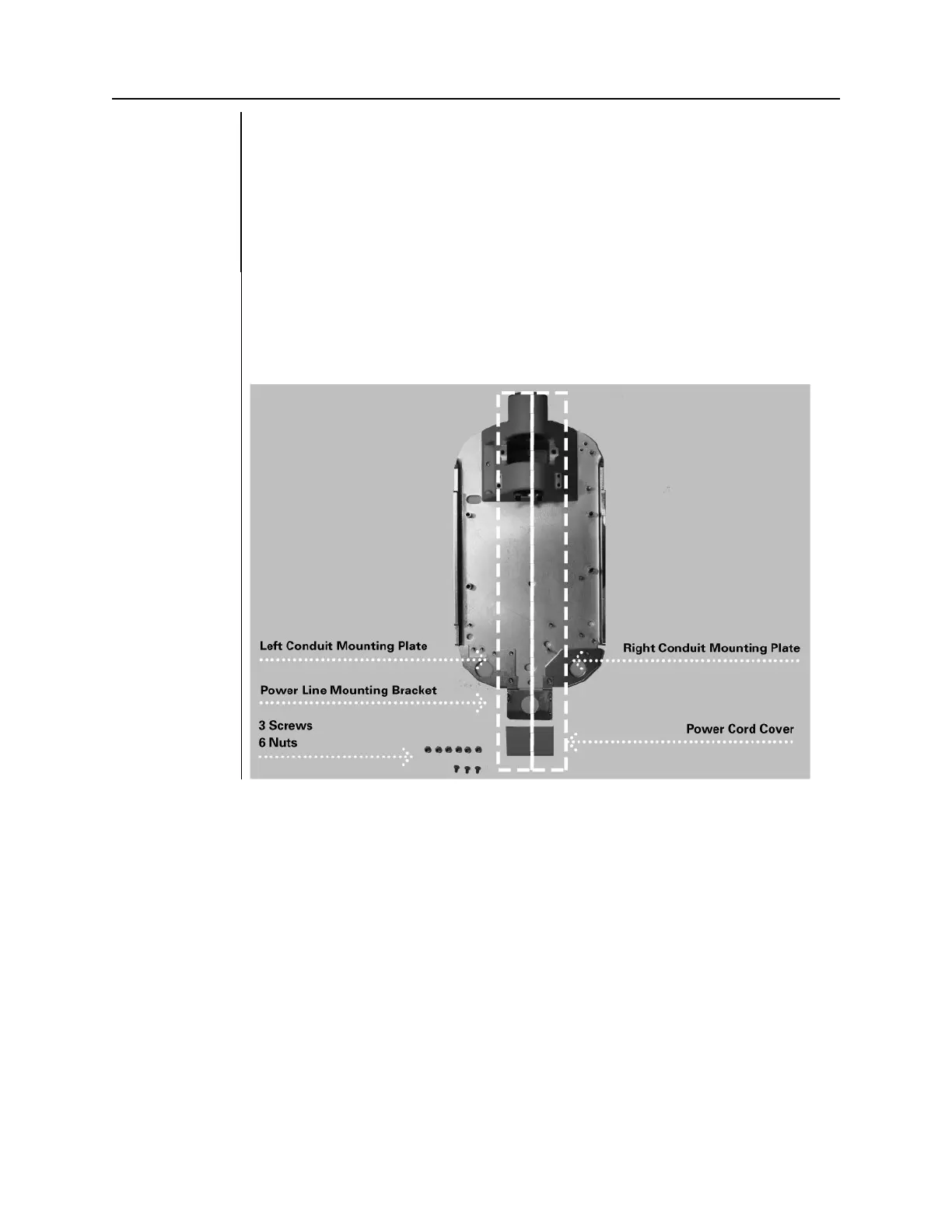

Figure 12
4x4 Mount
Cabinet
Layout
