VetPro DC Installation/Service Manual, 00-02-1606, Revision R01
51
Installing the Control Unit Front Cover and the Operator Panel
The Operator Panel can be installed on the Control Unit or remote from the
Control Unit. Installation of the Operator Panel on the Control Unit may require
the purchase and use of the coil-cord hand switch option 30-A2040.
In order to comply with the regulations and proper X-ray practices, the Operator
Panel must be located where the operator can view both the patient and the
technique factors prior to the exposure.
Unit
1. Connect the short cable at point J1 on the Power Supply Control Board 30-
08160.
2. Feed the cable through the front cover of the Control Unit.
3. Place the top of the front cover on the Control Unit and pop the bottom of
the cover into place, as shown in Figure 39, being careful of the power
switch and cover alignment.
4. Replace the screw on the front cover of the Control Unit.
5. Plug the cable into the bottom of the Operator Panel.
6. Snap the Operator Panel into place on the front cover of the Control Unit, as

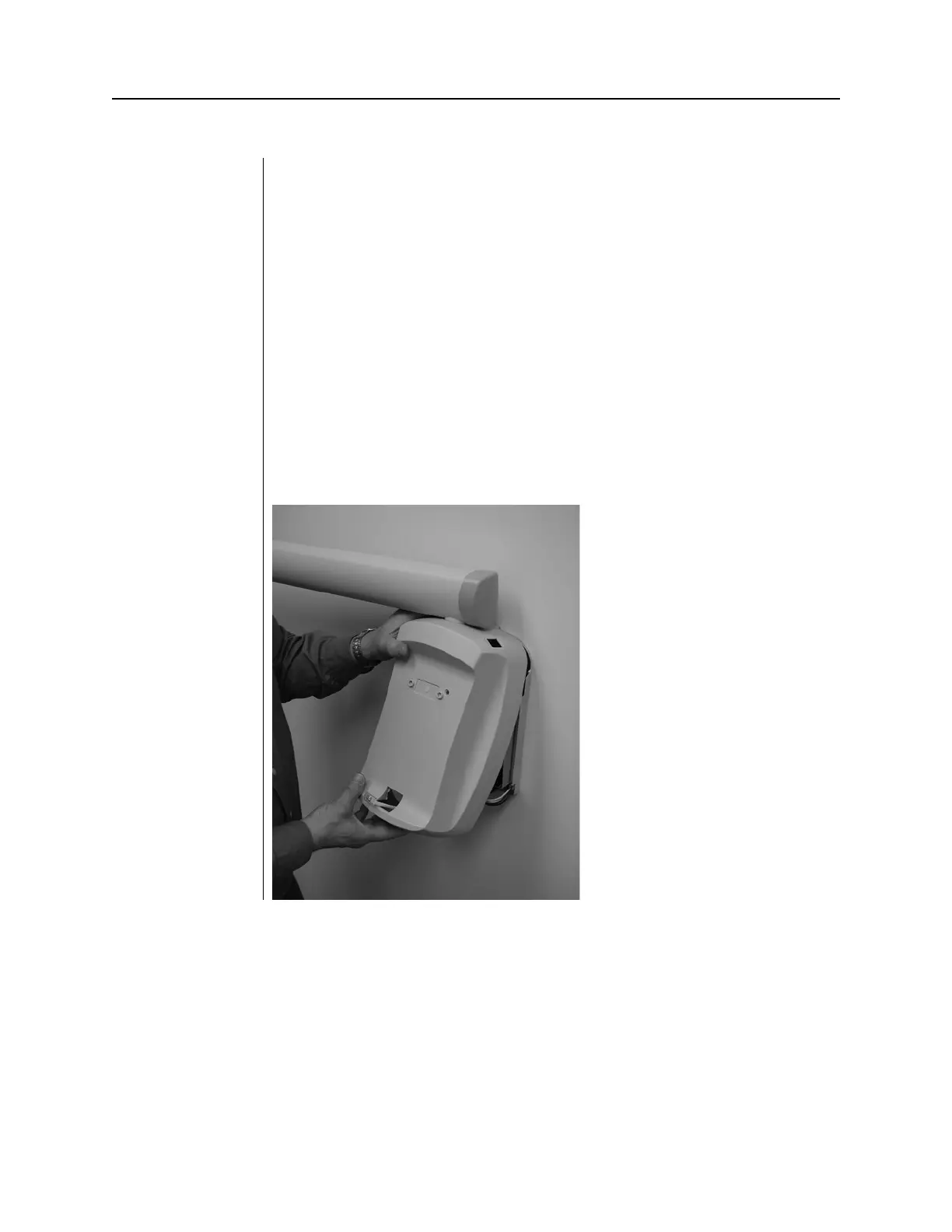

Figure 40
Placing the Cover
on the Control
Unit
