VetPro DC Installation/Service Manual, 00-02-1606, Revision R01
26
Control Unit
Mounting Holes
SINGLE STUD INSTALLATION WITH THE
“INSTALLATION GUIDE” (30-P0076).
Introduction
The Installation Guide is an aid for positively locating the center of 2x4 wooden
studs. The Installation Guide is a necessary part of the installation and
must
be
used whenever single stud installations are performed. It is equipped with side
tabs which can be removed if its placement is obstructed by an electrical box.
During installations that include attachment to a 4x4 wooden stud, all of the tabs
on one side of the guide can be removed to facilitate placement and attachment.

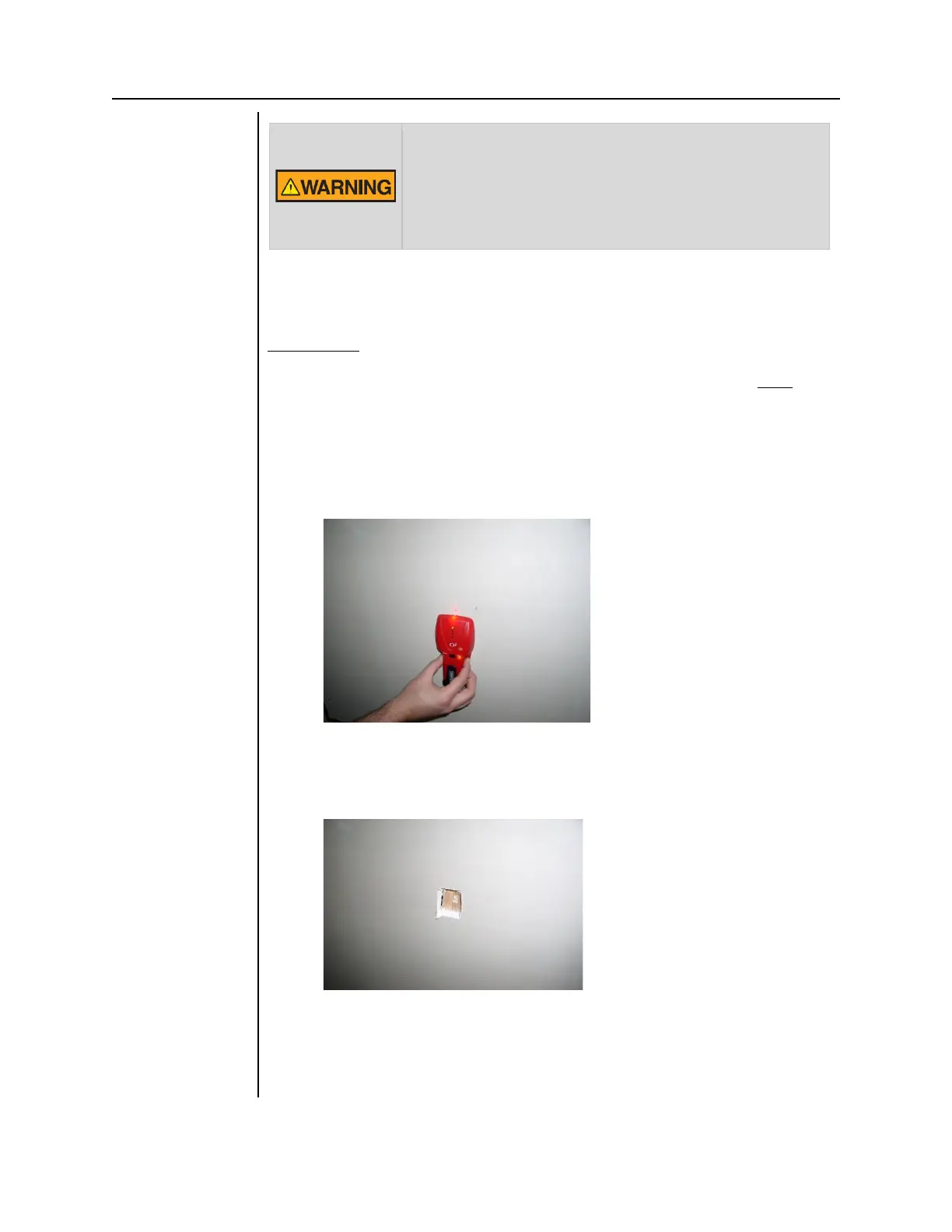

1. Locate the wooden stud.
2. Make a small opening in the wall to positively identify the position
of the wooden stud.
3. Draw an outline of the installation guide on the wall, ensuring that
the vertical height matches the requirements set forth on the
“Wall Mount Template” (30-S0003). Open the wall so that the
installation guide will rest directly on the wooden stud.
•
Do not attach the system with the 208 cm (82 in.) reach to a
wall in the single stud configuration. Contact Midmark
Technical Support for guidance.
•
Use the provided machine screws, large flat washers, and
nylock nuts to fasten the system to metal supports. Do not
