VetPro DC Installation/Service Manual, 00-02-1606, Revision R01
32

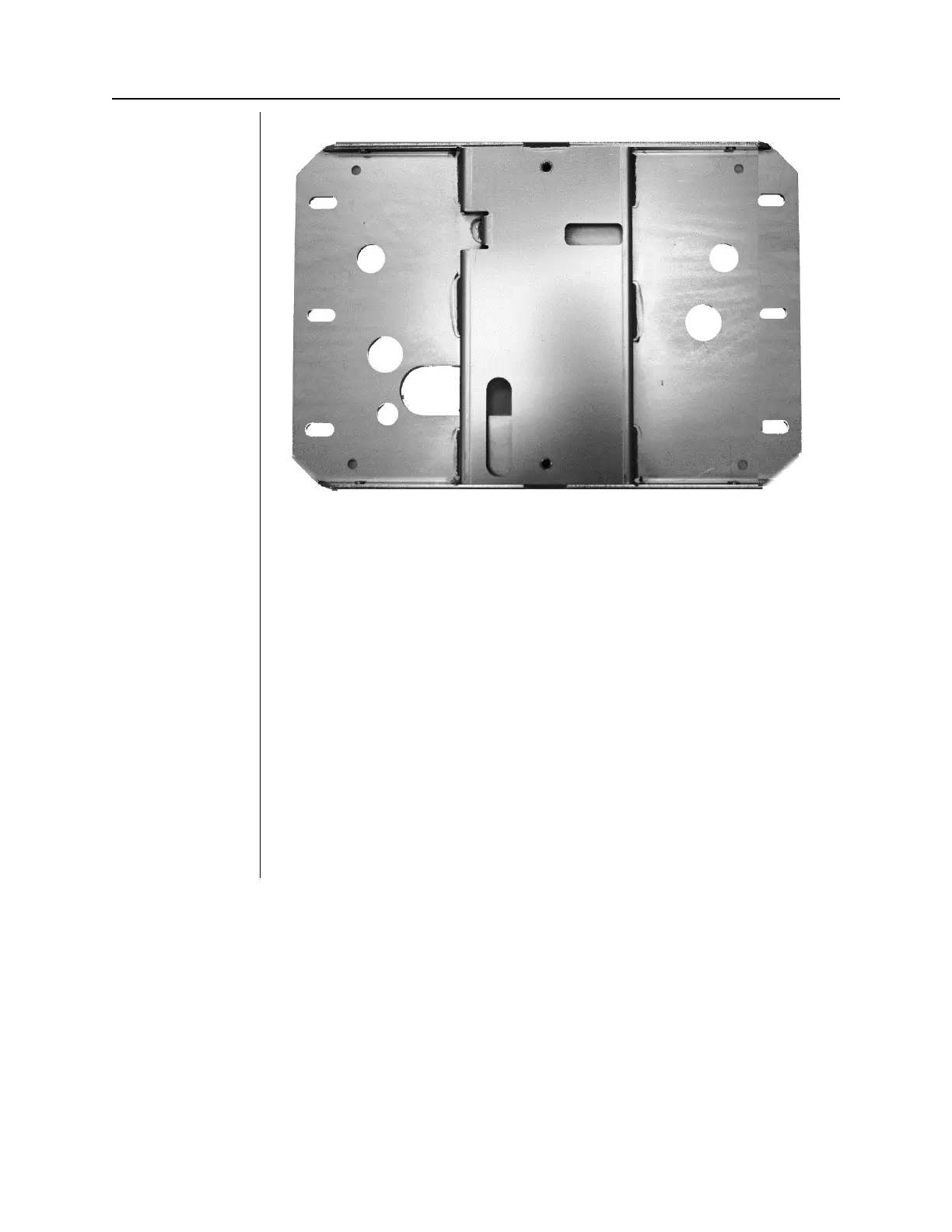

Figure 17
Mounting Plate for
Dual Stud Wall
Mounts
Remove Control
Unit Front Cover
1. Open the shipping carton and locate the Control Unit in the first level of the
carton.
2. Remove the Phillips screw from the front cover of the Control Unit.
3. Carefully remove the front cover.
4. Place the front cover and the screw in a safe location for later reassembly.
Mount the
Control Unit
1. Select the 5/16”-18 x 7/8” long socket cap screws [H1-15-S23088-01] and
washers [H1-NA-S12000-01].
2. Put the one screw and washer through the upper mounting hole of the
Control Unit.
3. Place the Control Unit on the wall and loosely tighten the upper screw.
4. Put the other screw and washer through the lower mounting hole of the
Control Unit and loosely tighten. Be sure that the power wire extends
through the opening at the bottom of the Control Unit.
5. Place a level on the Control Unit bearing parallel to the wall. Level the
Control Unit.
6. Tighten the upper and lower screws.
7. After the VetPro DC is installed, slide covers on the wall plate and fasten
with the provided (8) screws [H1-64-S17050-01].
