Figure 4-4: Brew Unit Filters
Refer to figure 4-5.
5. The drive tilts the percolator chamber and raises it to the
brewing position. The ground coffee is compressed between the
Top Filter (Item 2) and Bottom Filter (Item 5).
6. Water then flows through the Water Nozzle Socket, (Item 4).
The pump forces the hot water through the Brew Unit and the
compressed grounds (Pos 3). Coffee exits the top of Brew Unit
via the Outlet (Item 1).

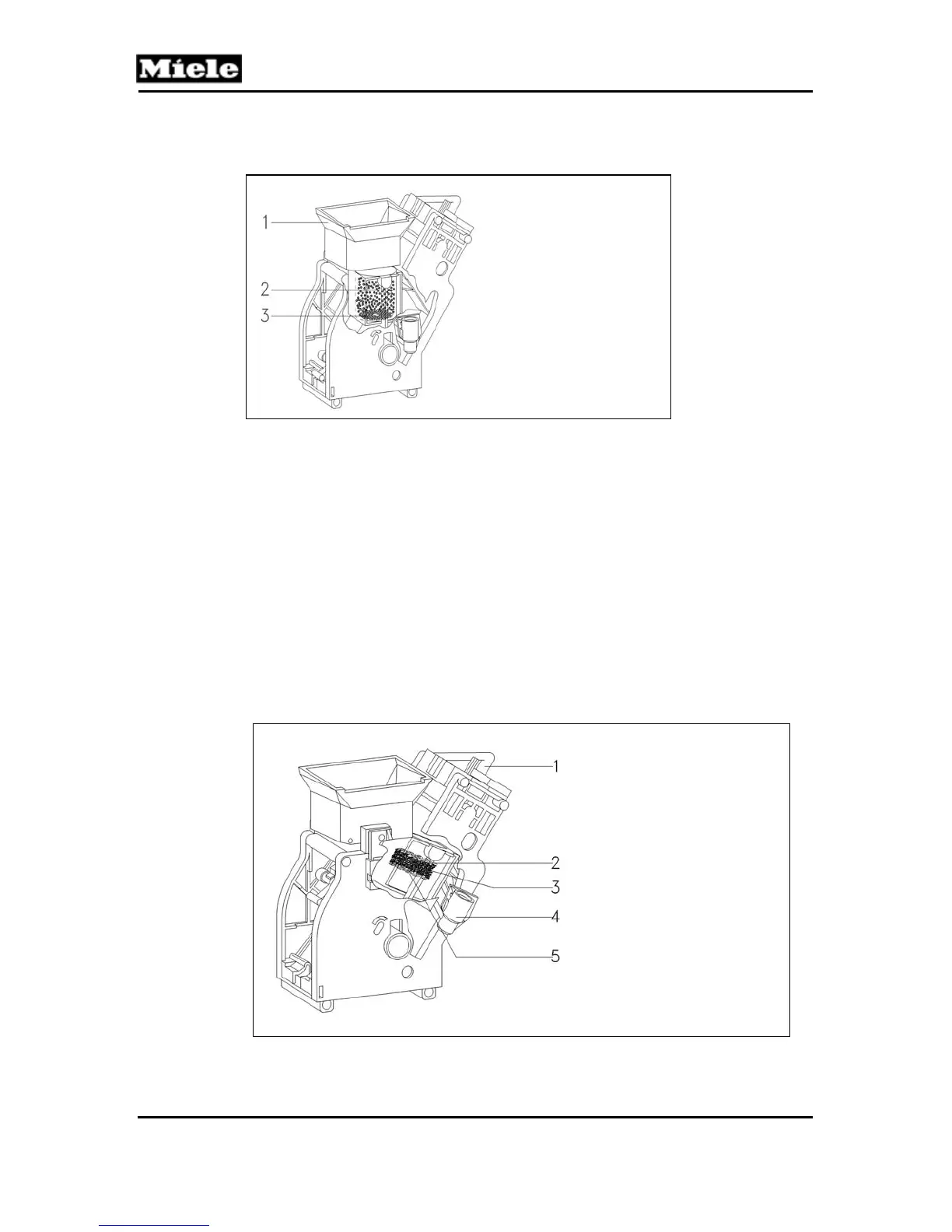

Figure 4-5: Brew unit components.
1 Funnel
2 Percolator chamber
3 Bottom filter
1 Outlet
2 Top Filter
3 Compressed coffee
4 Water Nozzle Socket
5 Bottom Filter
